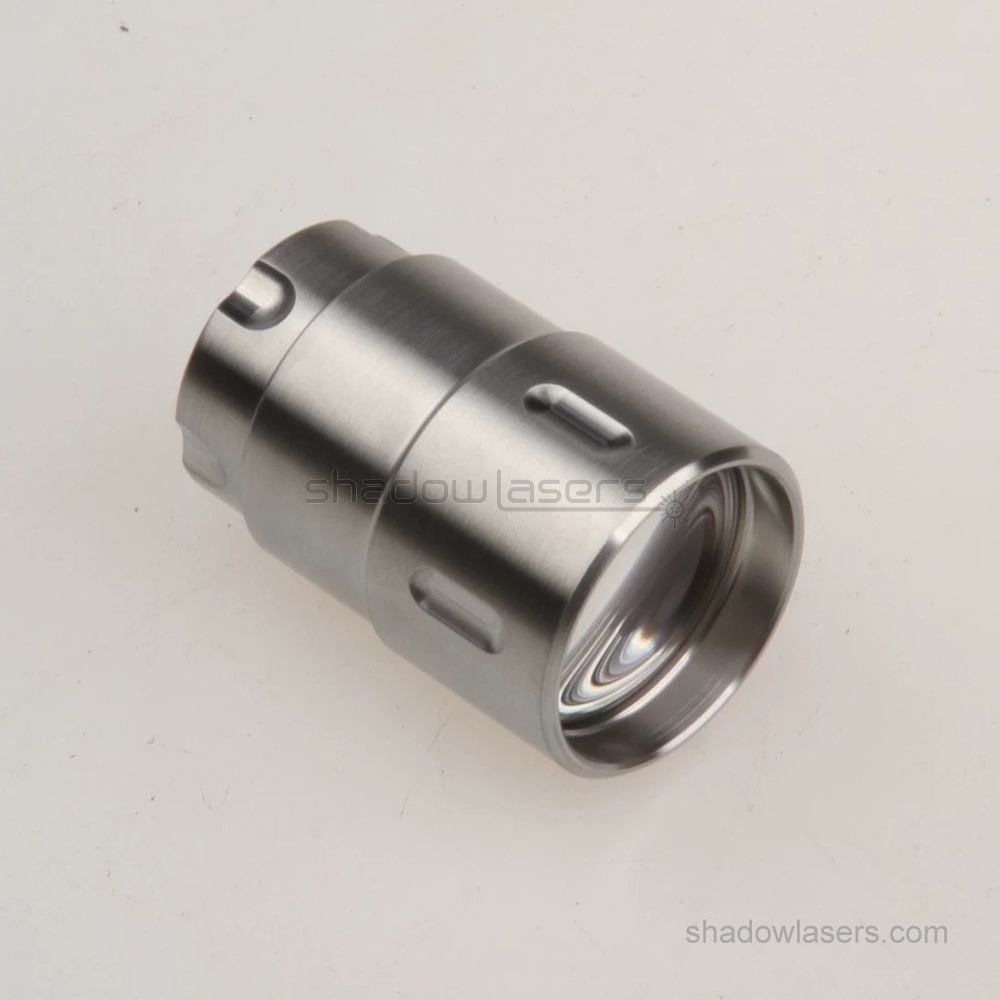

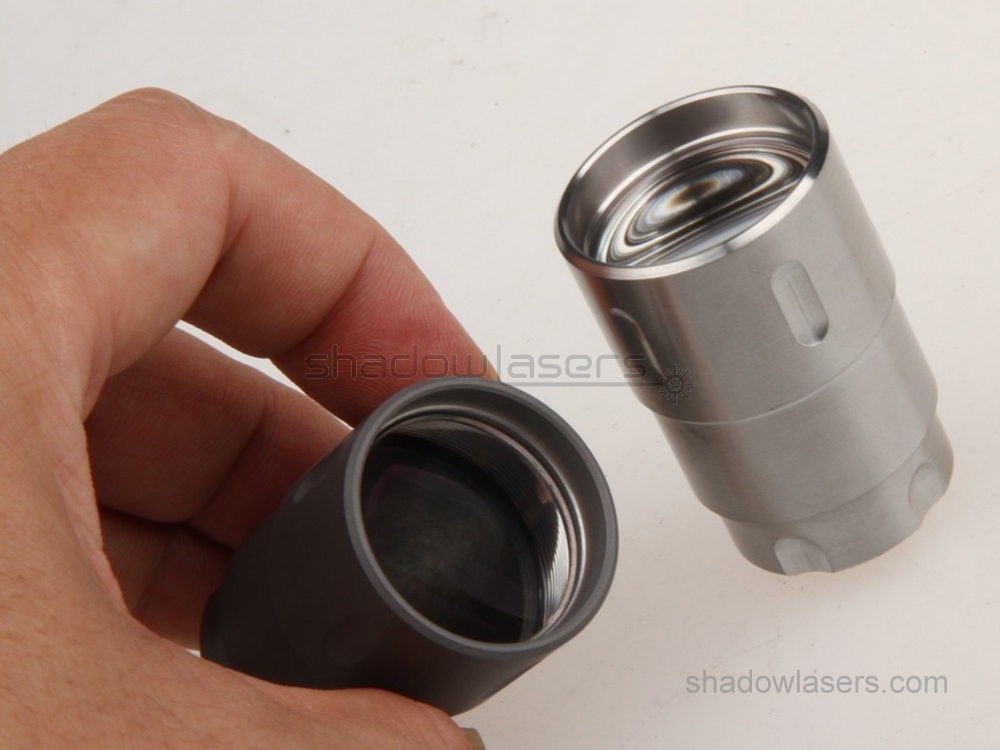

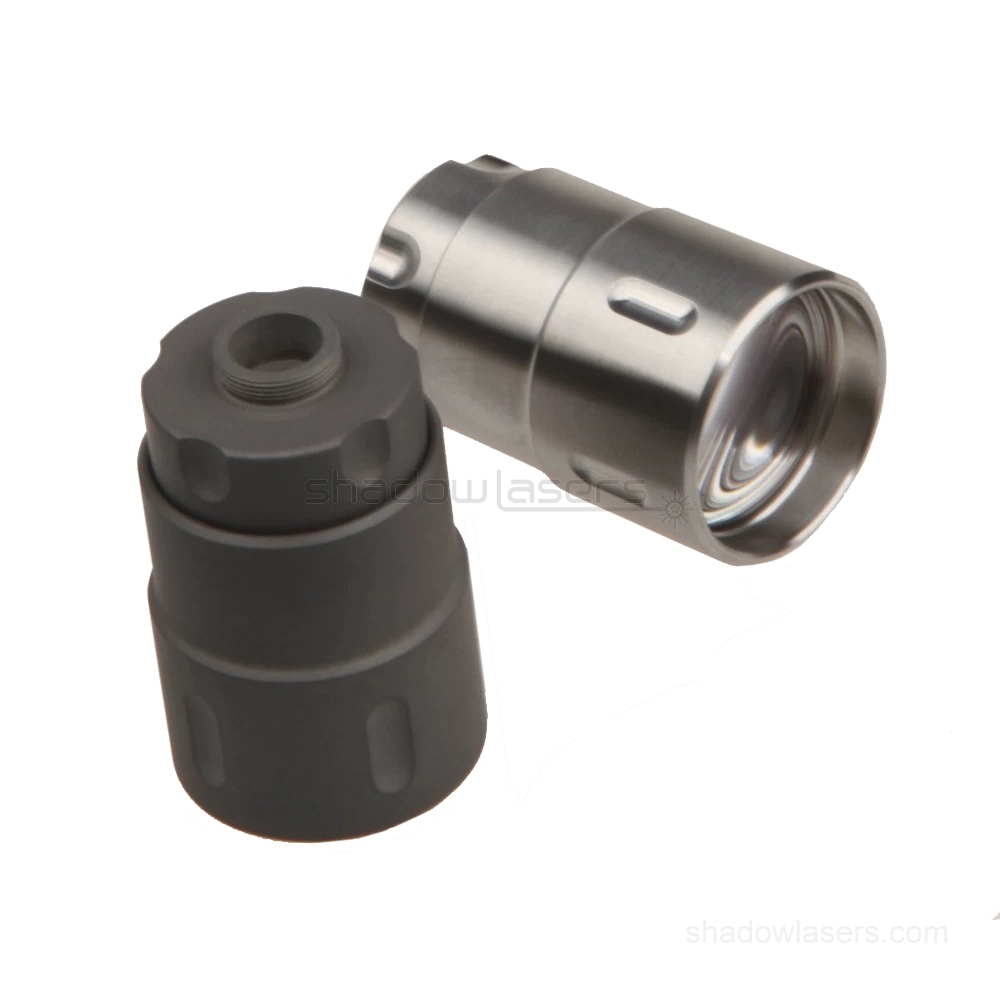

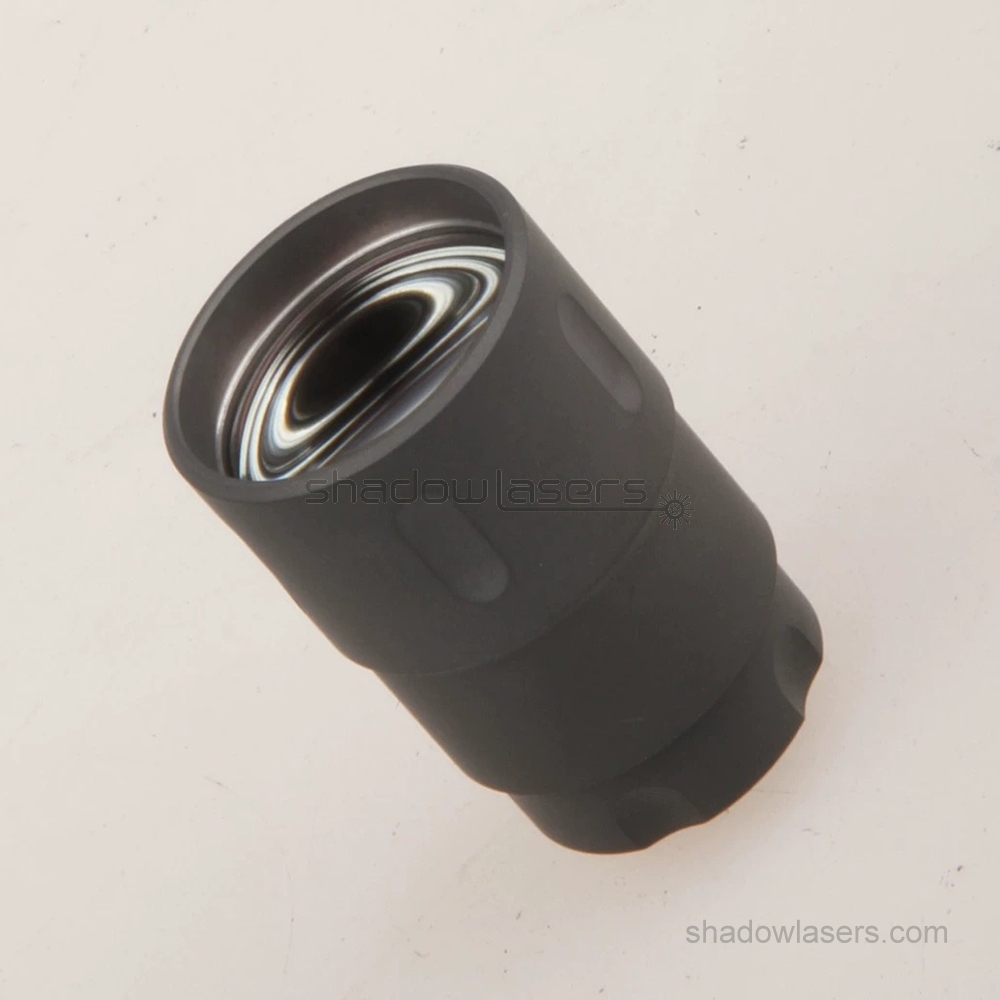

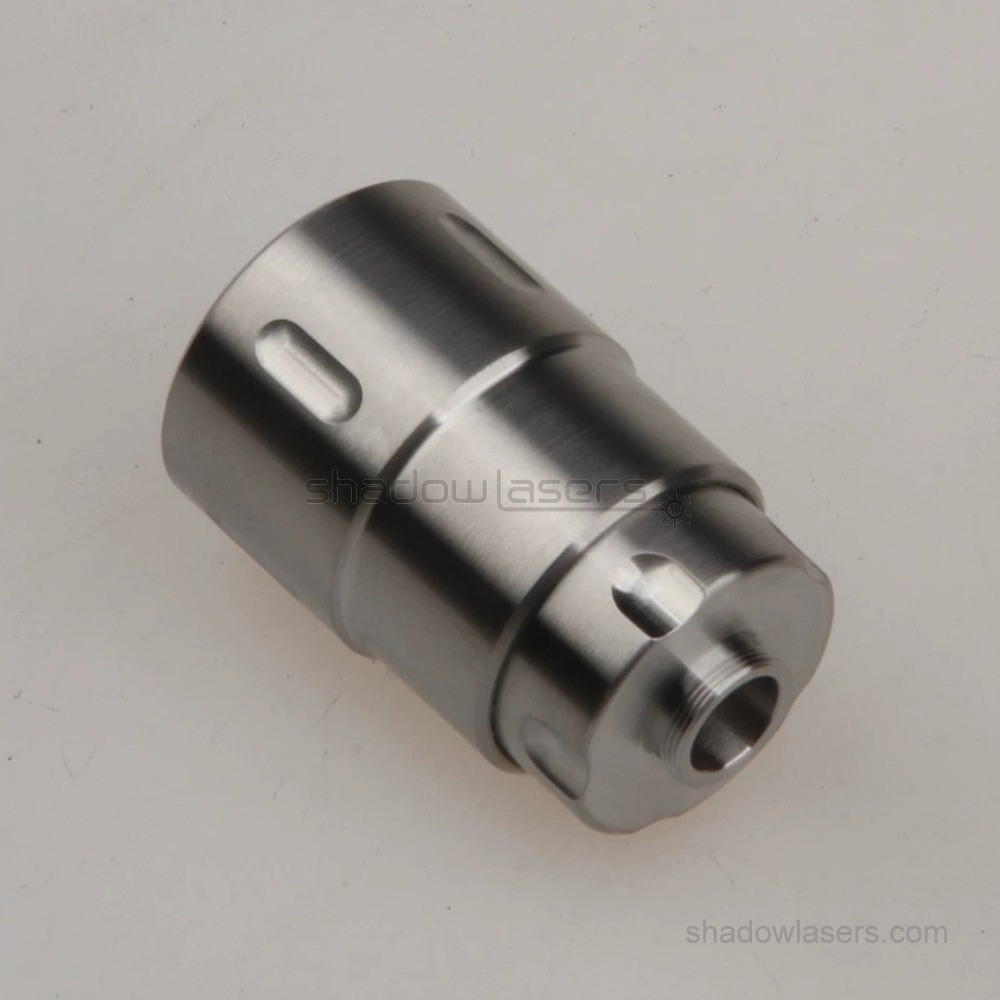

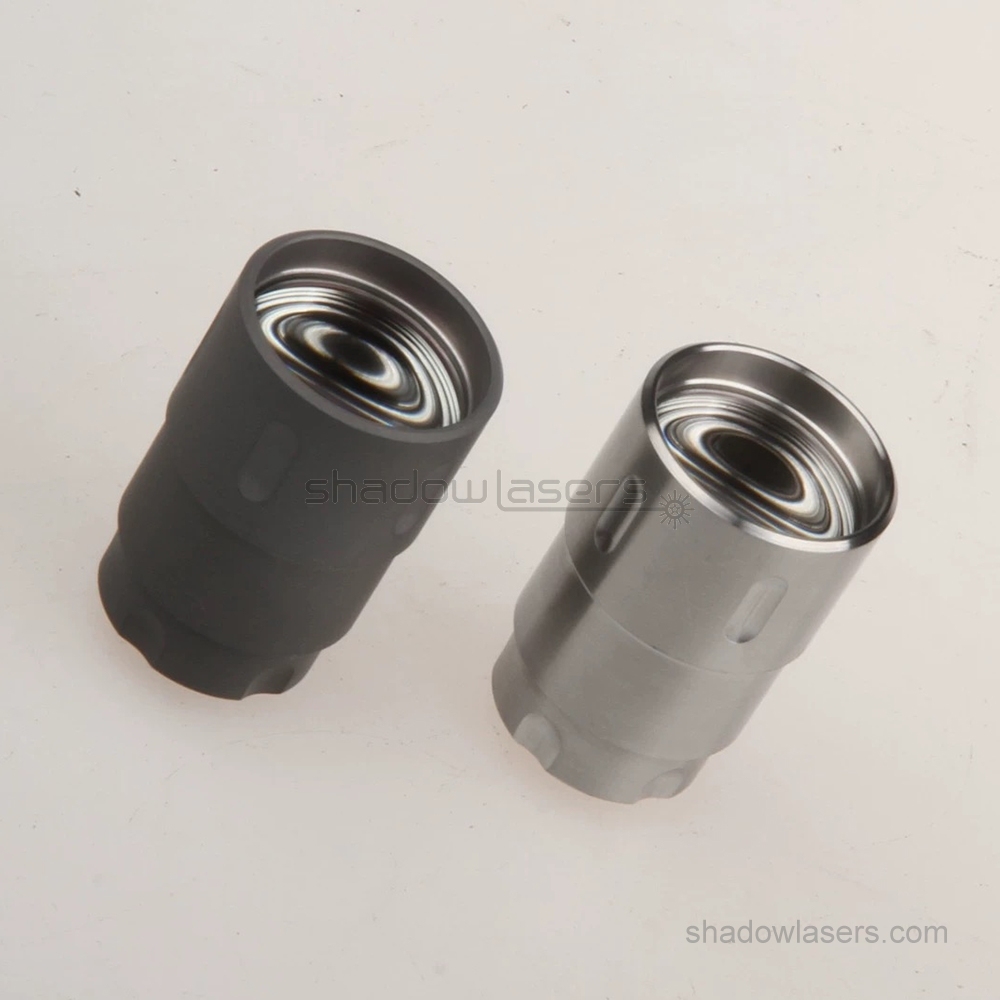

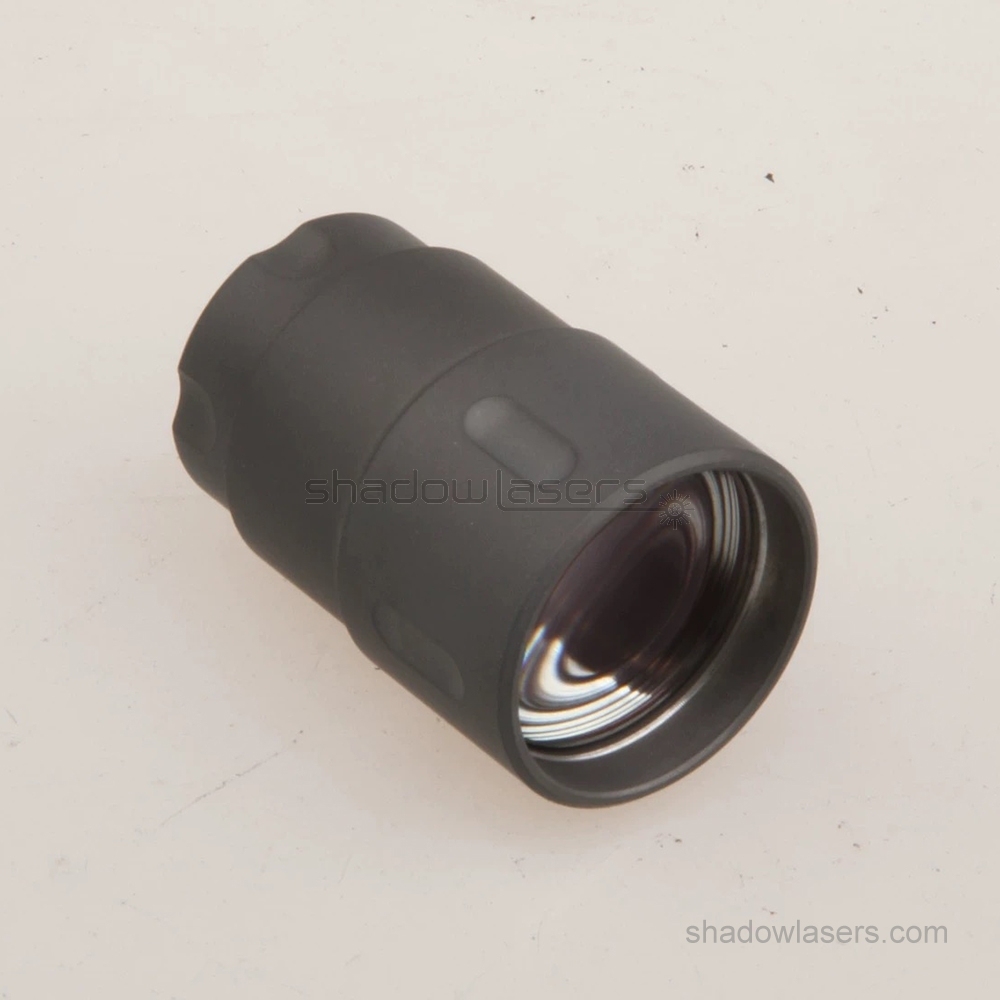

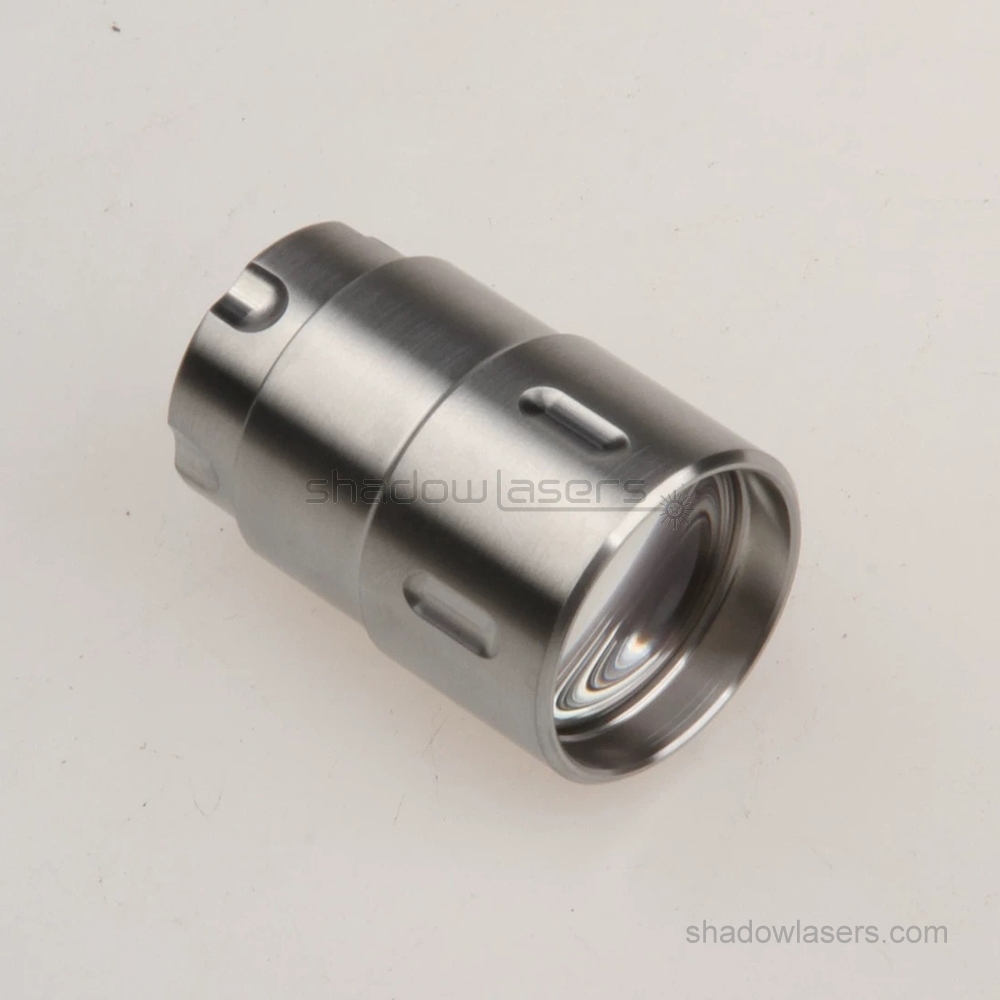

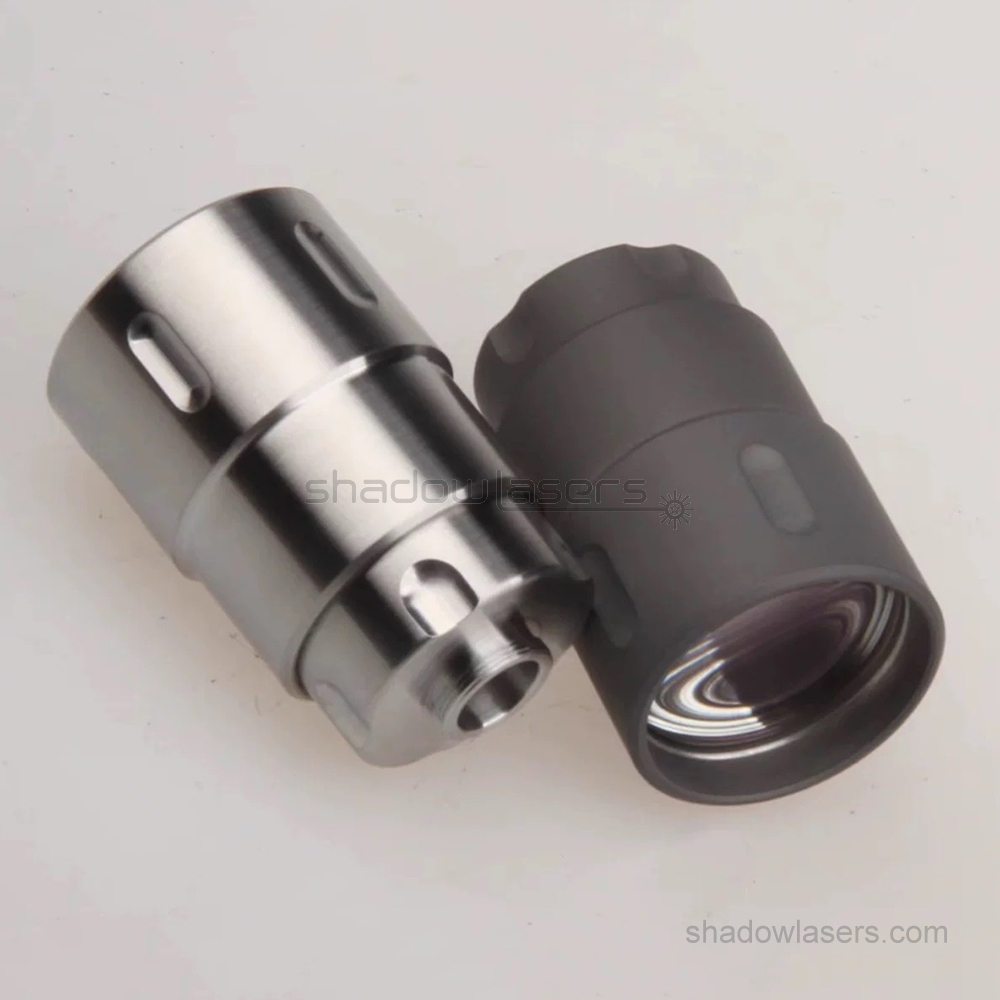

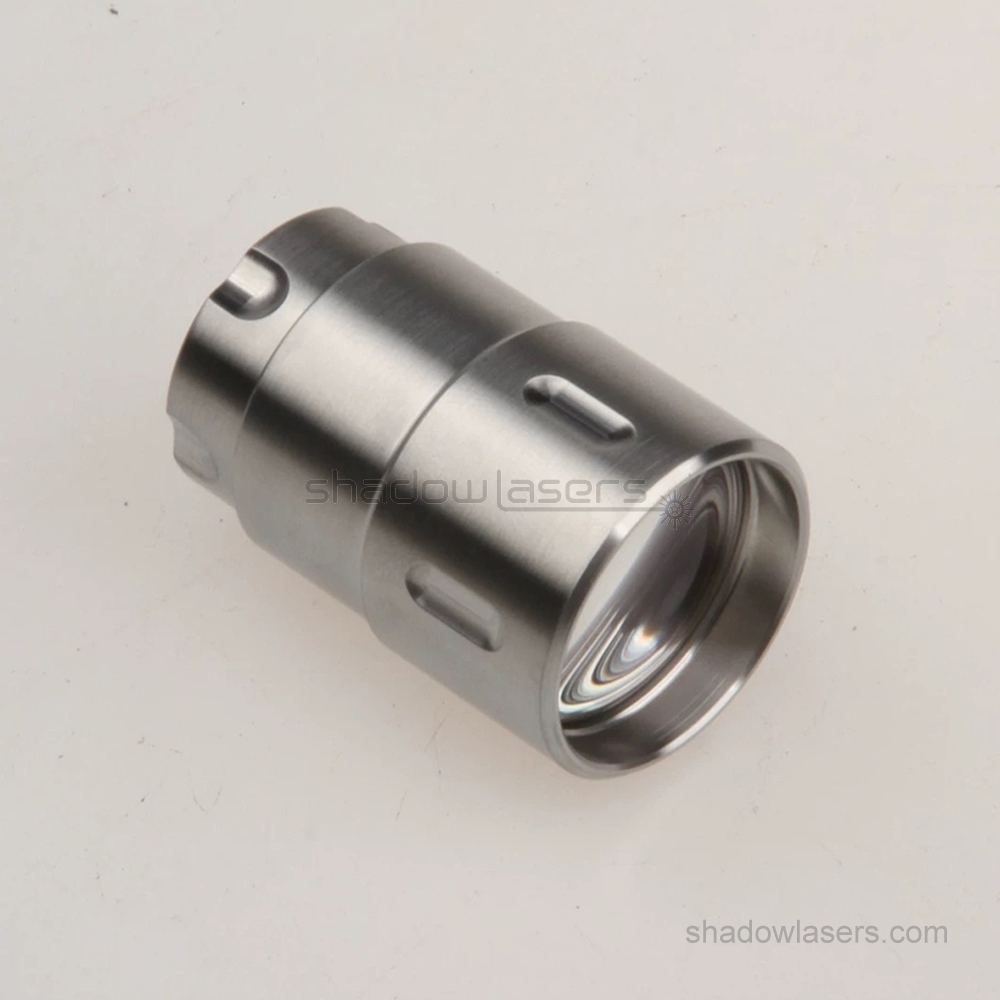

X3 Beam Expander For Laser Pointer

$60.00

Items will be shipped within 1~3 working days after cleared payments;
We will selectively ship from the nearest warehouse based on your shipping address and overseas warehouse inventory.
Estimated Delivery Time:

Ship From US Warehouse : 2~8 Business days;
Ship From AU or CA Warehouse : 5~9 Business days;
Ship From UK or EU Warehouse : 3~9 Business days;
CN Standard International Shipping : 7~20 Business days.

Received successfully

Coupon Code

Quantity:

Add to Favorites

1/1

Description

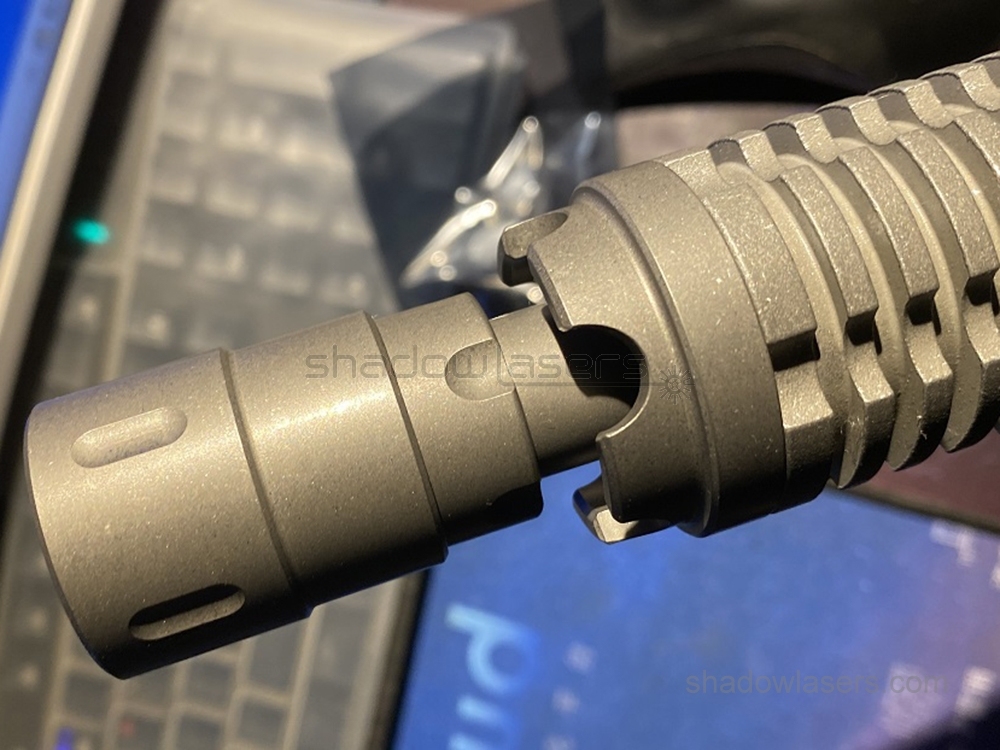

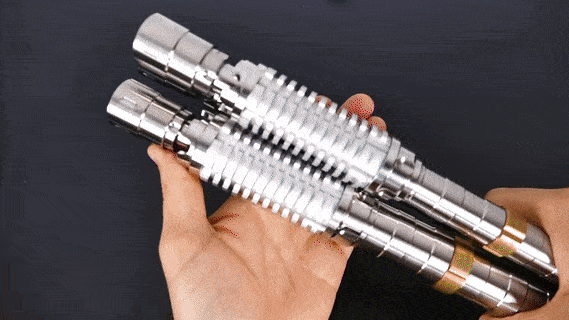

A beam expander is a set of lenses that increase the beam diameter and improve collimation.This makes the beam brighter at longer distances. Our X3 beam expander makes it possible to reduce the diameter of your laser's beam at maximum range - increasing the effective range of your laser by up to 3.3 times. Constructed with a stable stainless-steel housing, Our beam expander has an adjustable focus allowing you have fully control to the beam! The beam expander works with these model: X2, X3, X4, X5, X6, X7, X8, X9, Q1, Q2, Q6, Q9, H1, H2, H3, H5, H7, H8, W3, W5, W6, W7, W8, W9 series laser pointer(Green, Blue, Red, Purple & Infrared).
A beam expander is any optical system designed to increase the diameter of a laser beam. In most cases, the term is taken to mean a telescope designed to take a small-diameter collimated beam input beam and produce a larger diameter collimated output beam, thus reducing the divergence of the beam. The beam expander consists of a negative input lens and a positive objective. The expansion factor is the ratio of the focal length of the two lenses.
Model：	X3 Beam Expander
Brand：	Shadowlasers
Works for Wave Length：	405nm,450nm,473nm,488nm,520nm,532nm,638nm,650nm,808nm,980nm,1064nm etc.
Dimension：	φ29*55mm
Adapter Thread：	M11.5*0.5mm
Extended Adapter：	M11.5*12mm
Aperture Diameter：	φ29mm
Actual Expand Ratio	3.3 Times
Focus Mode：	Adjustable Focus
Surface Treatment：	Hard Anodizing Stainless Steel / Stone Washed
Body Material：	Stainless Steel
Net Weight：	90g
Warranty：	1 Year Manufacturer's Warranty
