Laser Rangers - Designed for Extreme Laser Power
Our new Laser Rangers is being powered by one 18350 lithium battery and it comes with two dimmer switches, the top one allows user to adjust the laser power from 0 to full power and the second switch has swift access to different functions such as strobe mode, breathing mode and SOS mode. This new feature alters the way how multi mode works, instead of doing it with the button switch, you simply turn the dimmer switch to gain access to varies modes.
On top of that we also added vibration to the laser to indicate the the changing of the laser mode & when you power on the laser. This brings entirely new user experience and complete control to the laser, a must-have for any laser fans!

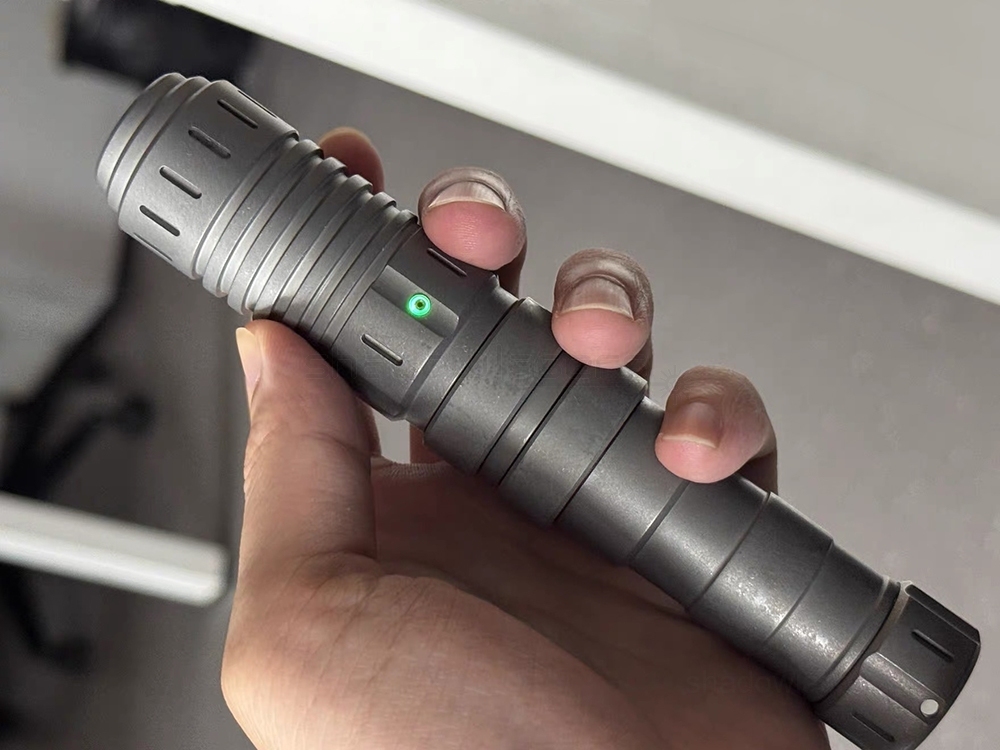

The Laser Rangers represents the pinnacle of our compact laser engineering—the most advanced and feature-rich version in the rangers series. Its sleek, ergonomic design combined with fully adjustable focus and integrated FAC (Fast-Axis Collimation) lens makes it one of the most enjoyable, precise, and high-performing handheld lasers available.
- A Phenomenal Power to Size Ratio

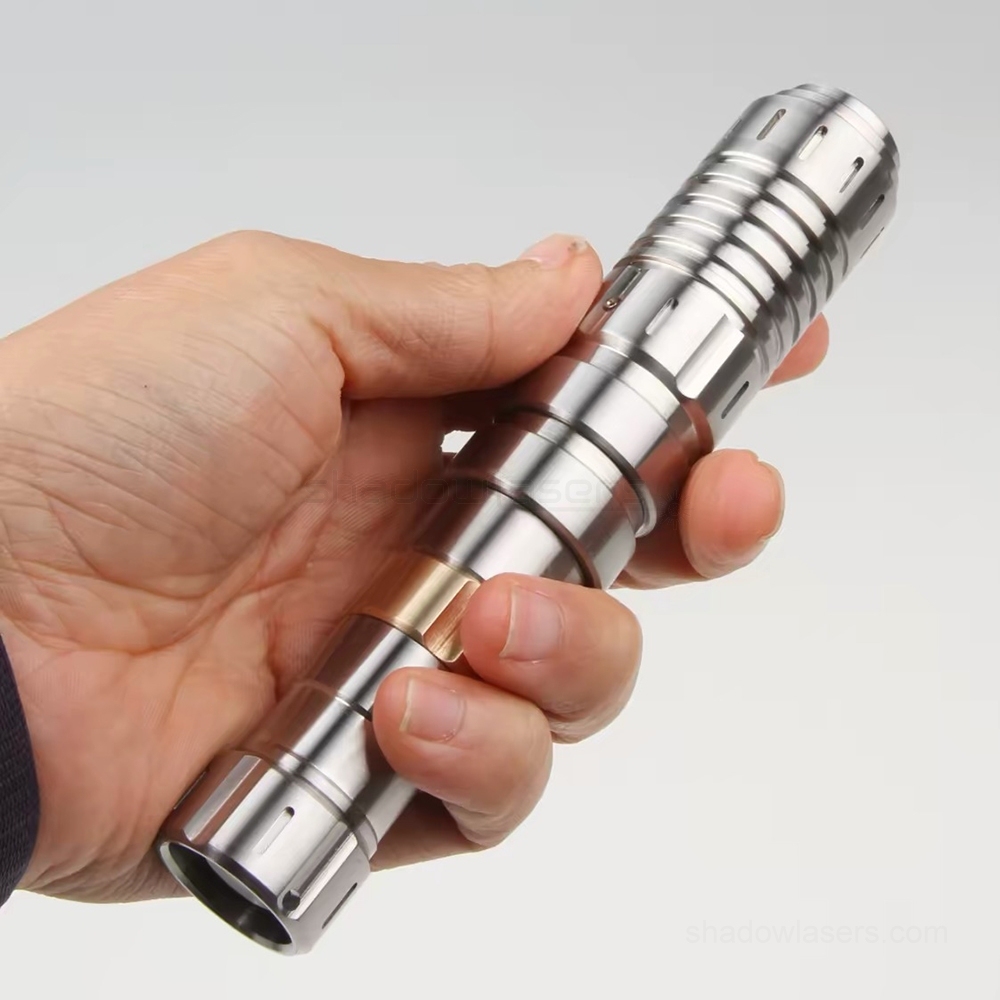

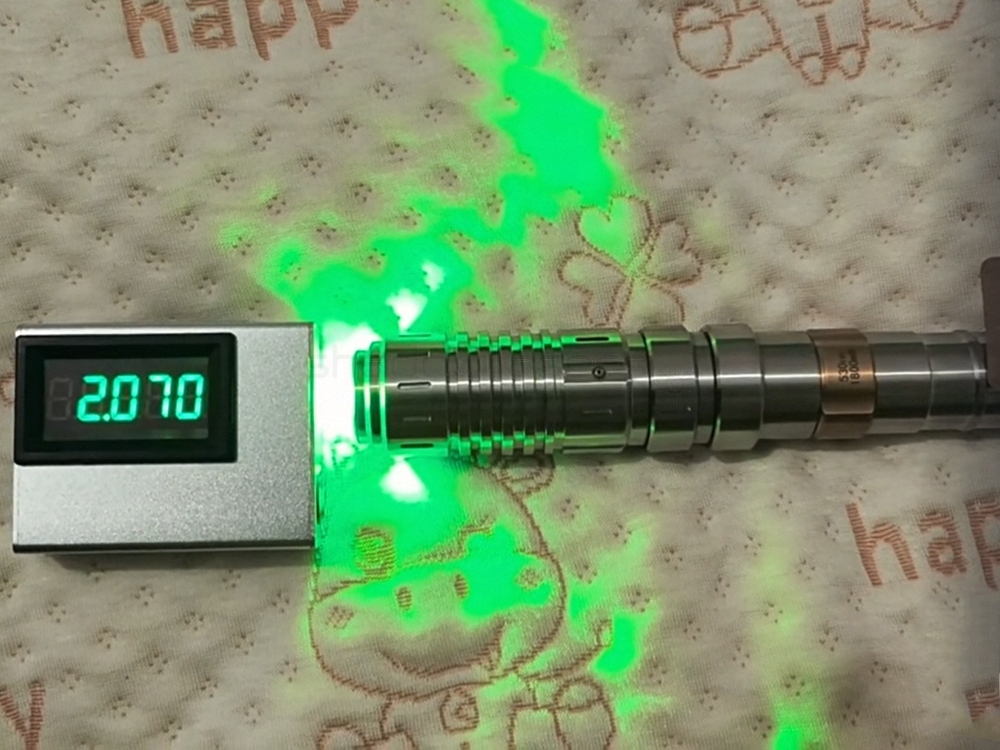

The Laser Rangers boasts one of the best power-to-size ratios in the world—capable of driving a massive 7000mW (7W) 455nm blue laser diode, delivering among the brightest and most intense single-diode outputs available. Measuring just φ28*126mm (comparable to a permanent marker), it's an ultra-portable powerhouse that fits effortlessly in your pocket or hand.
- Stainless Steel or H62 Copper Construction

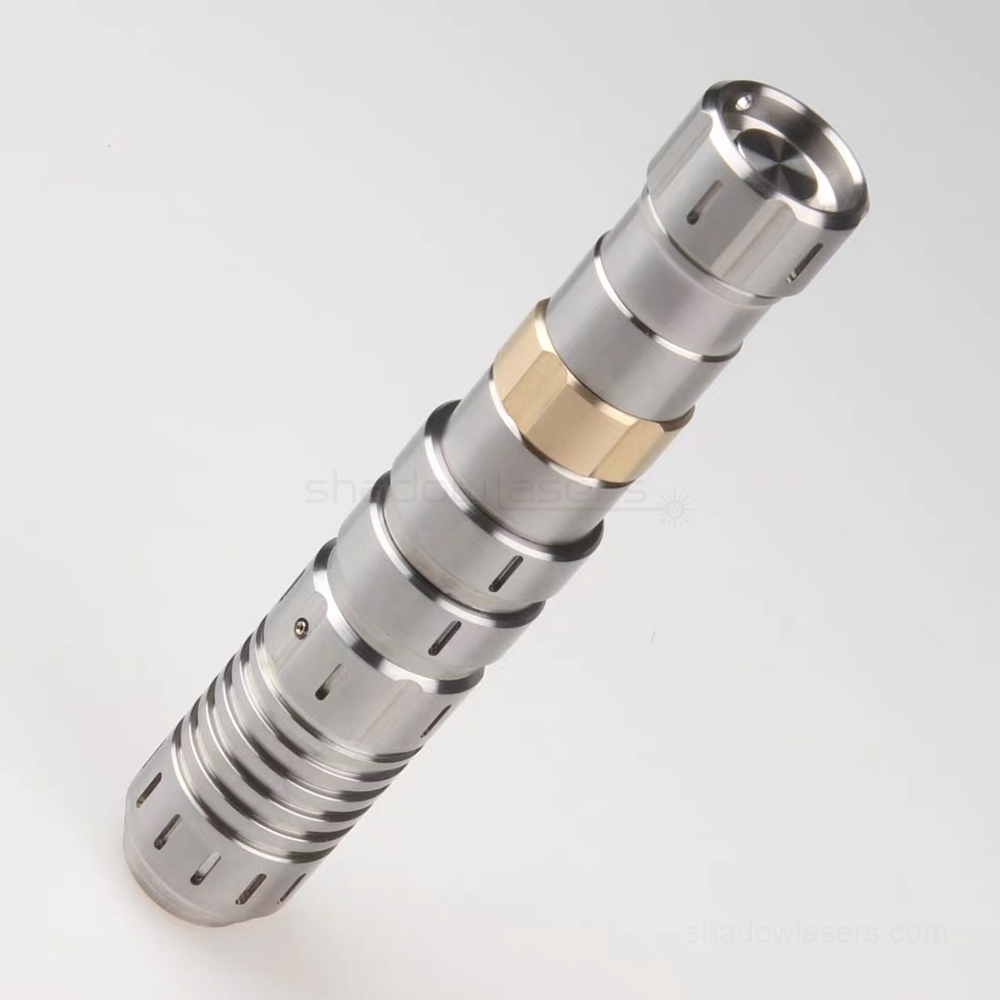

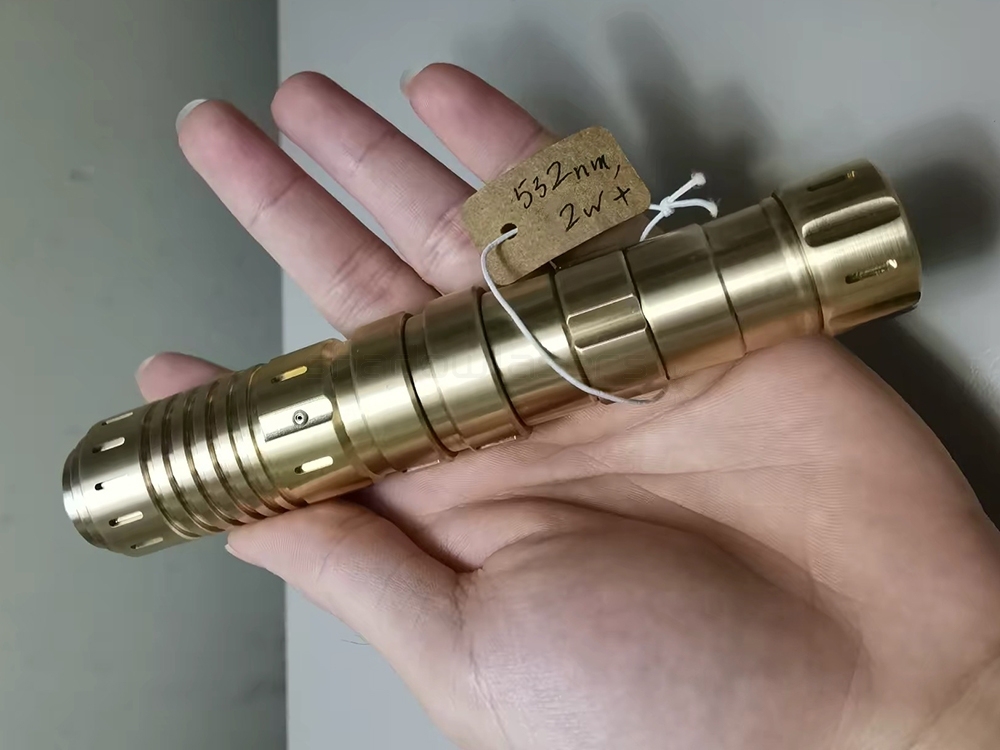

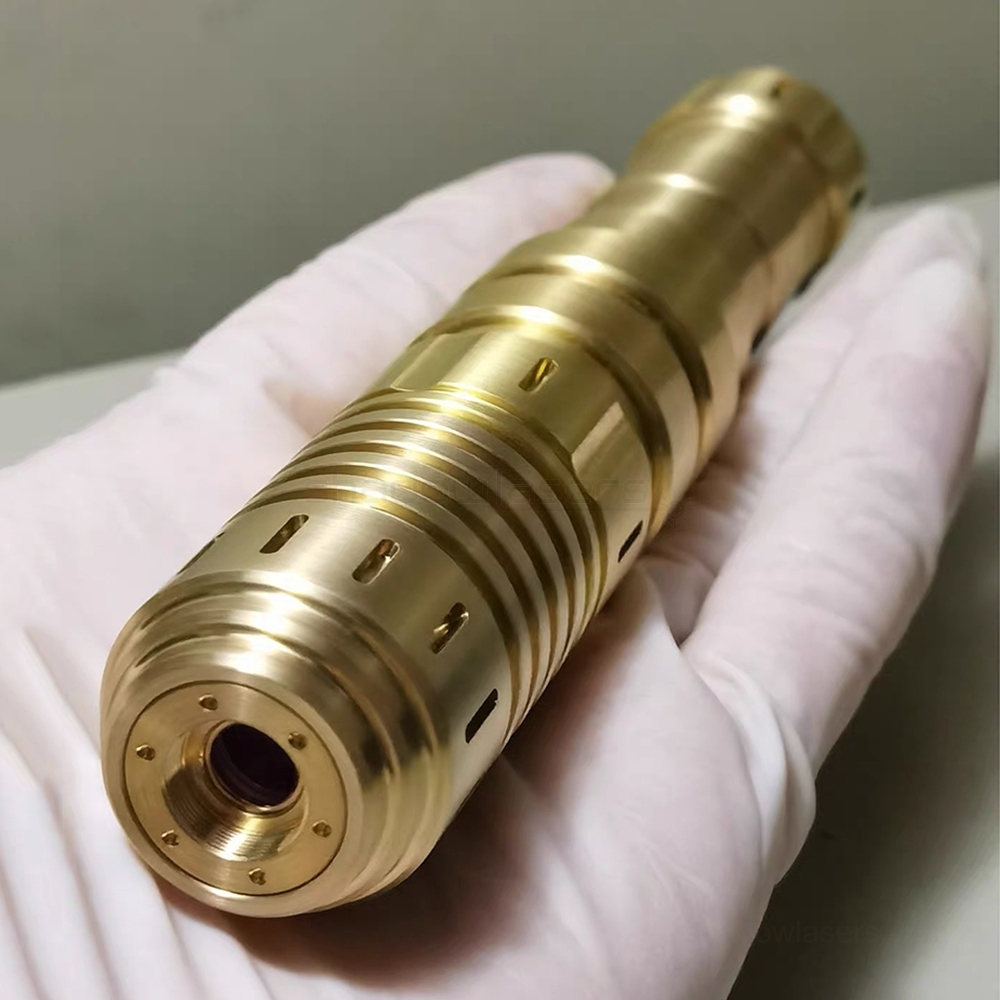

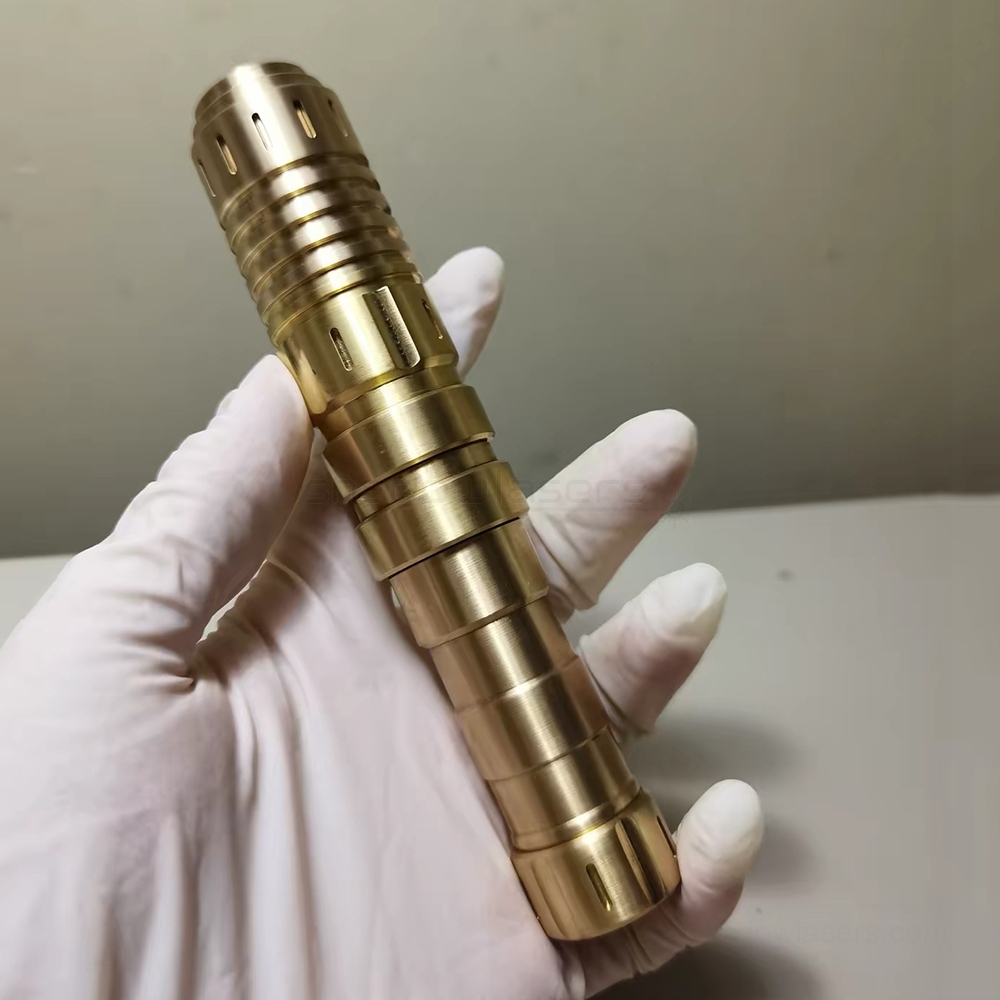

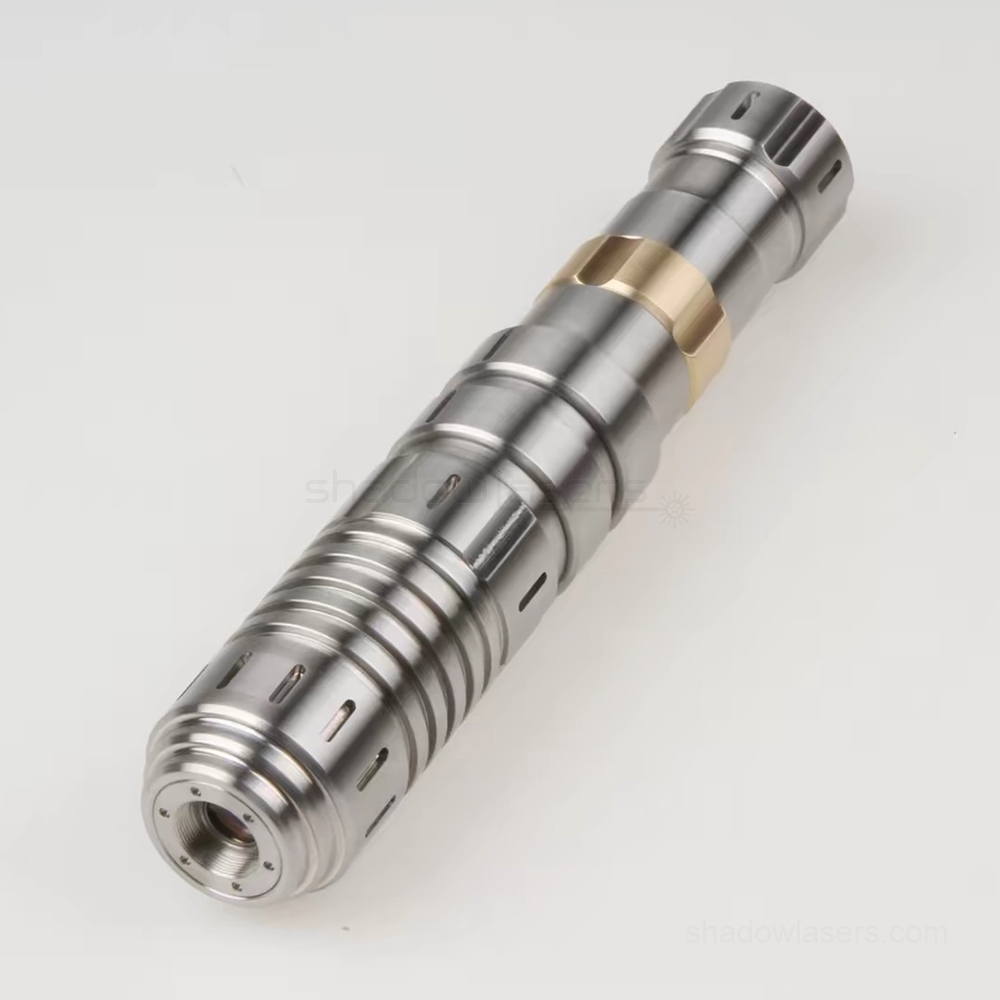

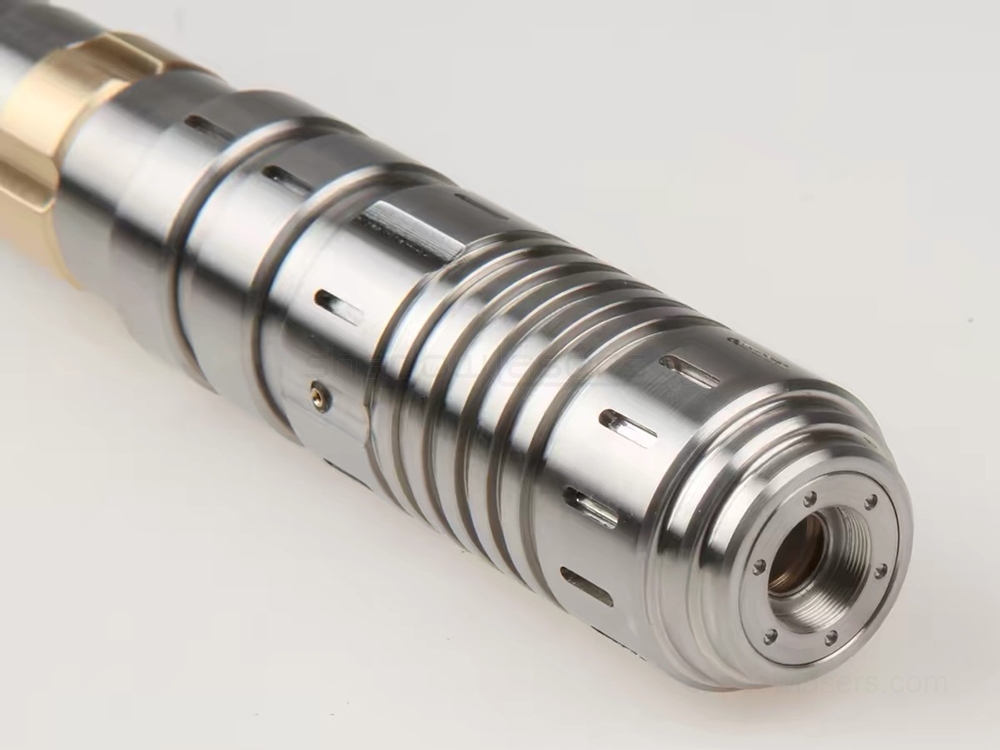

The laser body is constructed from military-grade stainless steel, delivering premium quality, exceptional longevity, and rugged durability you can trust. Enjoy peace of mind against accidental drops and scratches in most situations. H62 Copper shell has better heat dissipation performance, suitable for high-power laser pointer.
- Improved Beam profile & Divergence
High-power blue, green, and red lasers typically have significantly higher beam divergence than lower-power models. We address this with FAC (Fast-Axis Collimation) lenses, which dramatically reduce divergence—even without a beam expander—resulting in a more rounded and cleaner beam profile.
The beam spot becomes a fine, near-square dot with the FAC lens, while lasers without it often produce an unsatisfying long line. Many customers previously complained about the non-round dot—this issue is now fully resolved!
The 7W 455nm laser diode in the Laser Rangers—based on the cutting-edge NUBM4F—ignites paper, wood, and other materials almost instantly. You won't even need pinpoint focus to see dramatic results! Experience the thrill of this brilliantly intense beam, especially dazzling at night.
Wield the pinnacle of blue handheld laser performance in a portable package—but always operate with extreme caution to avoid fire hazards, eye damage, or accidents. Safety glasses and responsible use are mandatory!
- Electronic Safety Lock & Multi operation mode
All advanced features and safety locks are accessible via the mobile app or Bluetooth!

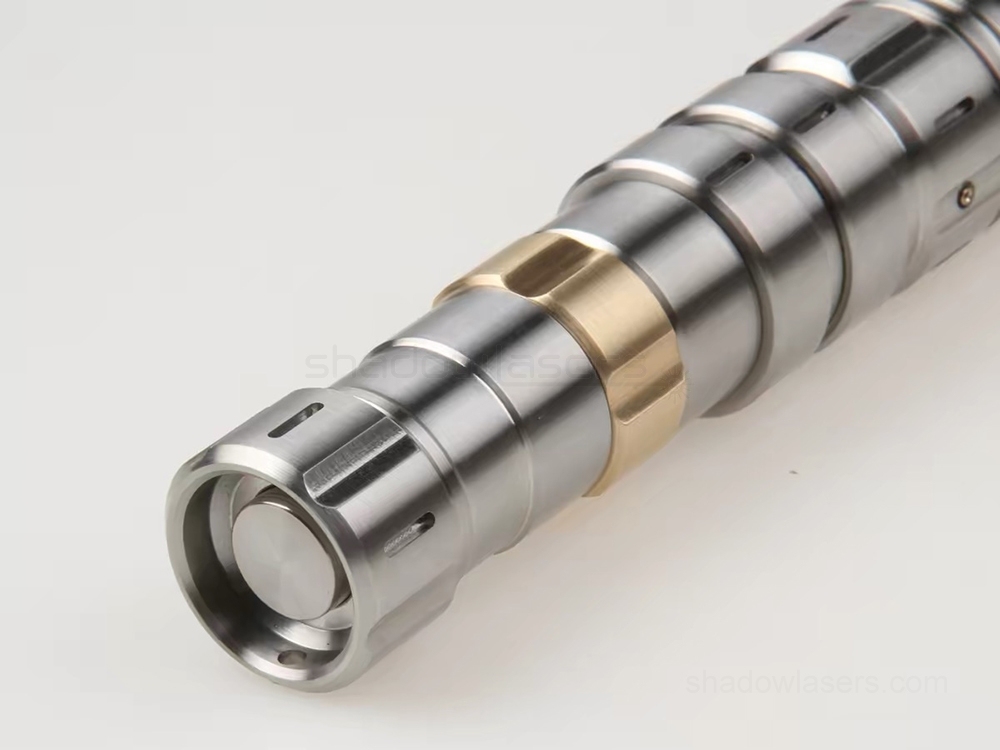

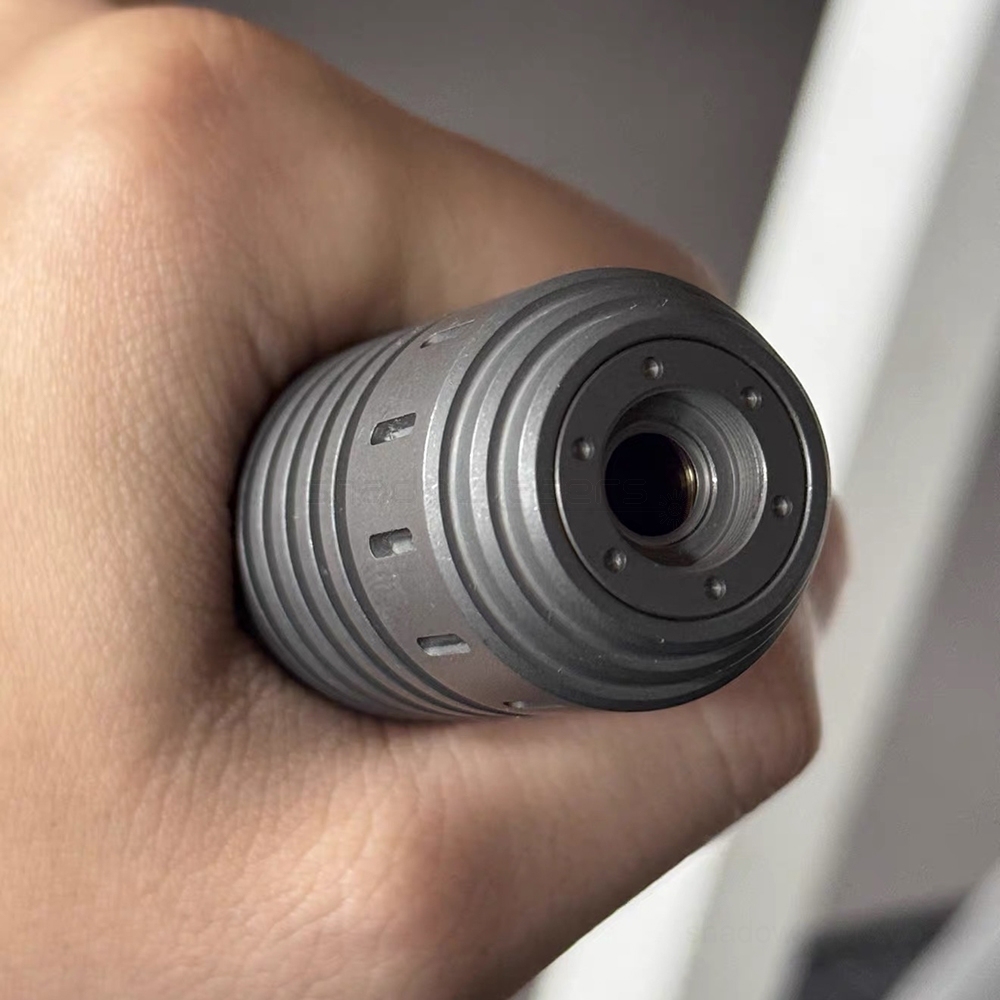

Fully adjustable focus for precise beam control. Simply twist the head (front lens assembly) at the top of the laser to tighten or widen the beam.
Built-in safeguards include over-discharge protection, over-charge protection, and reverse polarity protection to keep both the laser and batteries safe.
- How to Power the Laser On
Put a 18650 protected lithium-ion or 1x18350 li-ion unprotected battery (after removing one of the battery extension tube) into the laser and press the bottom switch to power the Laser Rangers. Insert the battery with the positive side going in first. Next, screw on the base cap and press the power button to operate the laser. |
| Model： |
W6 Laser Rangers FAC Series Laser Pointer |
| Brand： |
Sanwu Lasers |
| Wave Length & Output Power： |
Green 520nm 1.5W / 530nm 1.8W / 520nm 2W
Blue 465nm 5W / 465nm 6W / 455nm 7W
Red 638nm 1.2W |
| Dimension： |
φ28*126mm

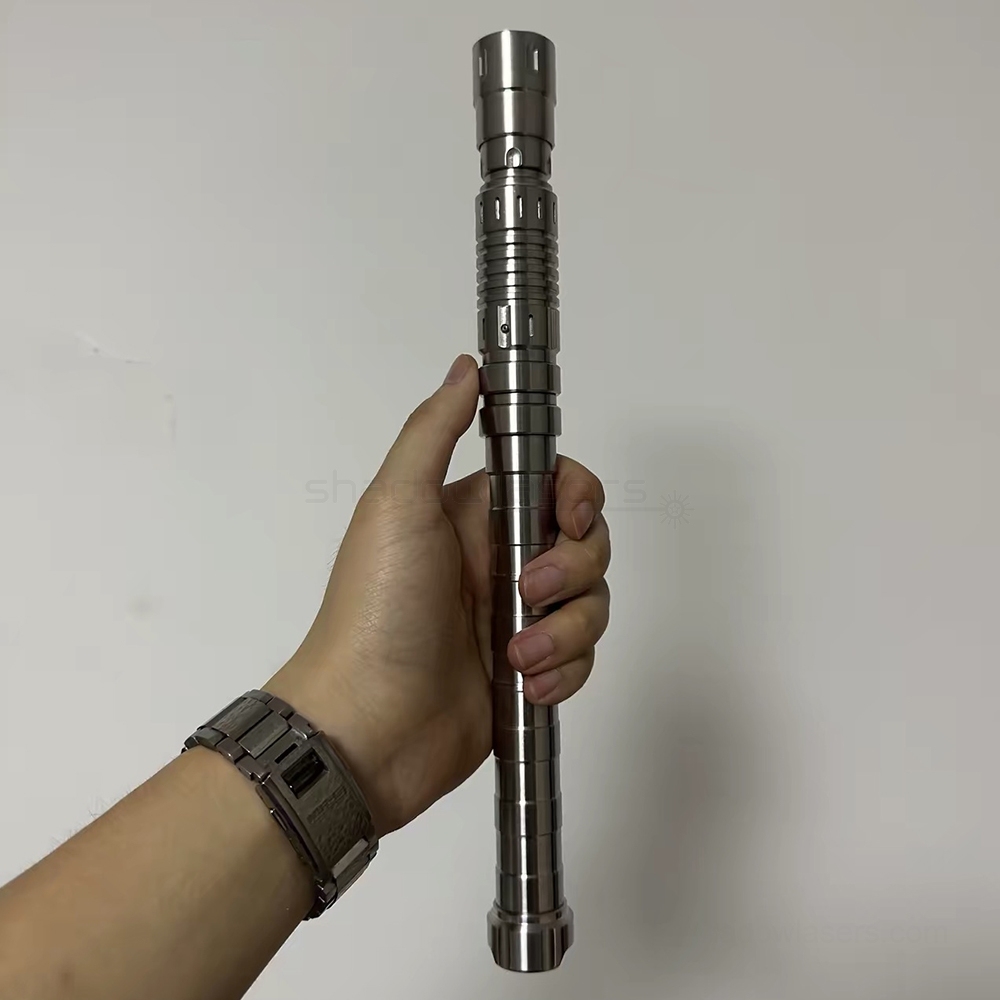

φ28*156mm (With Extension Tube)
|
| Laser Classification： |
Class IV |
| Focus Mode： |
Adjustable Focus |
| Switch： |

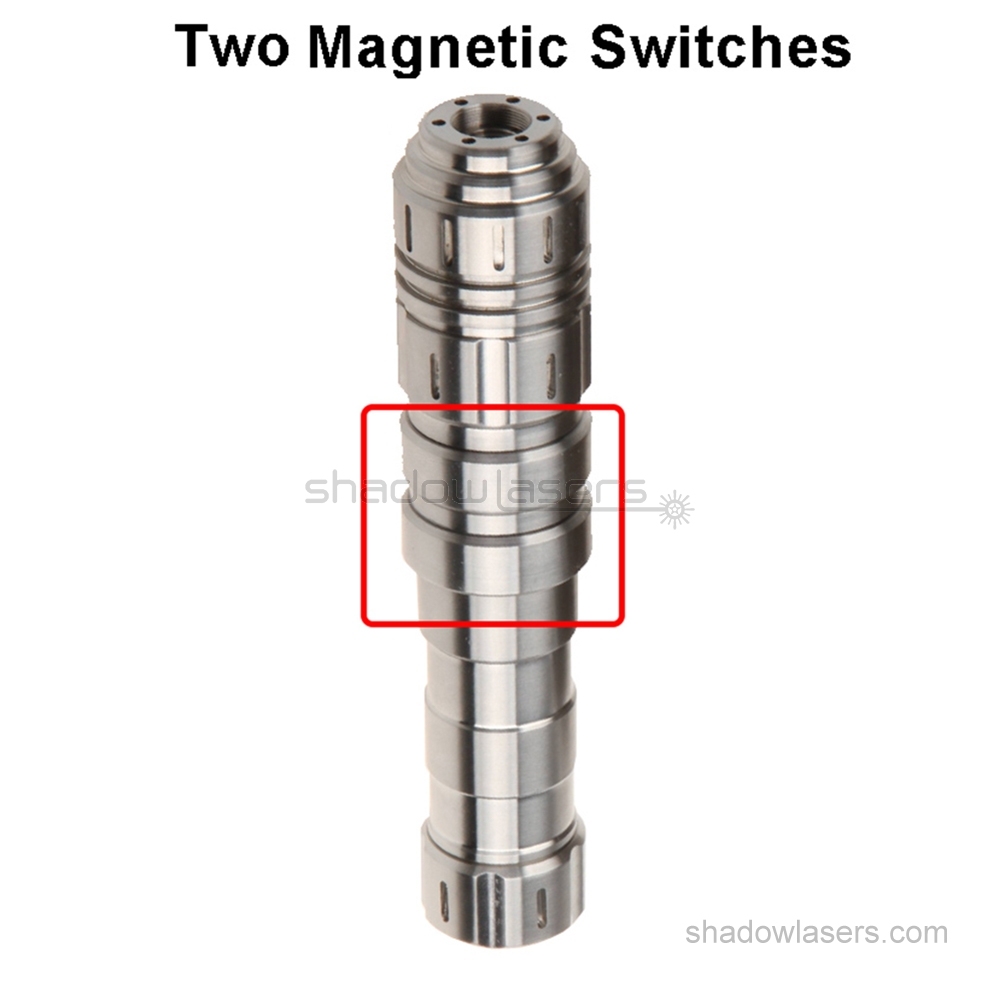

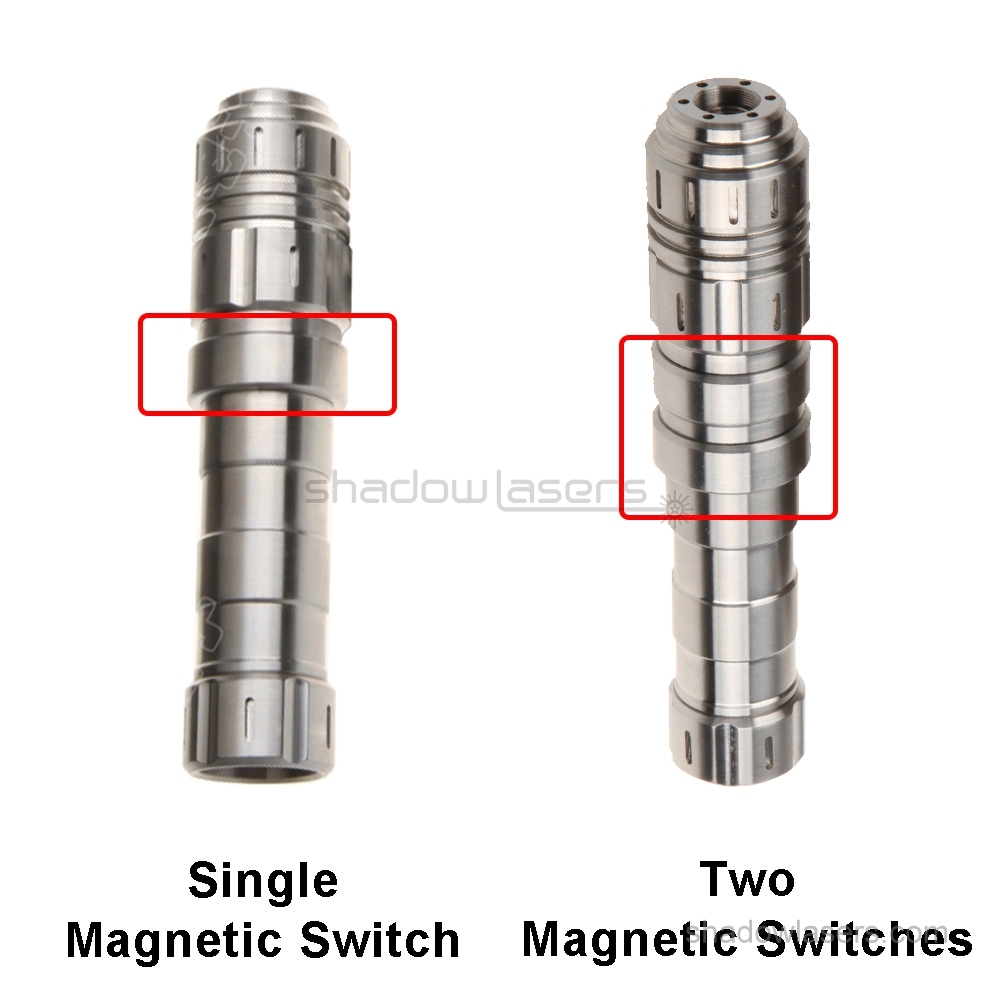

Push Button Constant On/Off & Two Magnetic Switches
|
| Beam Divergence: |
1.5mRad-4.8mRad |
| Required Eyewear O.D. |
3.0+ |
| Surface Treatment： |
Hard Anodizing Silver / Gold / Stonewashed |
| Body Material： |
Stainless Steel 304 / H62 Copper |
| Laser Net Weight： |
280g
310g (With Extension Tube) |
| Expected Lifetime： |
> 8000 Hours |
| Usage Method： |
30 Seconds on & 60 Seconds off，Contious use should NOT exceed 2 Minutes! |
| Battery Type： |
1 x 18350 Rechargeable Li Battery
1 x 18650 Rechargeable Li Battery (With Extension Tube) |
| Battery Direction： |
The Battery "+" Is Toward Inside of The Laser Pointer |
| Battery Lifetime： |
30~60 Minutes |
| Power Consumption： |
3.7V ~ 4.2V @ 1A ~ 2.5A |
| Laser Range： |
2000-8000 Meters |
| Max Brightness： |
>1000Lm |
| Circuit Control： |
APC |
| Flare Forms： |
Plaque-Forming - Circle |
| Beam Style： |
Continuous Line |
| Spot Size： |
6 Meters Place < φ10mm |
| Preheat Time： |
< 3 Seconds |
| Warranty： |
1 Year Manufacturer's Warranty |
|
PACKING LIST
1 * Laser Pointer & FAC
1 * APP Bluetooth Signal Antenna
5 * Metal Star Caps for Effects
1 * 18350 Rechargeable Li Battery
1 * USB Charger
1 * Red Safety Goggles
1 * Aluminum Carrying Case
|
- Revolutionary Bluetooth functions
Laser Rangers now support full app control via Bluetooth, unlocking capabilities no other handheld lasers offer—such as adjustable power, mode speed, and more. You can even program custom operations and save them directly to the device! The Laser Rangers (with Bluetooth) is tailored for any specialized task.
IOS / Android
| APP Bluetooth Functions |
Advanced Functions |
| Battery voltage display |
INCL |
| Working current display |
INCL |
| Input total power display |
INCL |
| Internal module temperature display |
INCL |
| Bluetooth authentication status display |
INCL |
| Current percentage of light source power turned on |
INCL |
| LED/Laser Switch |
INCL |
| LED/Laser Power Adjustment |
INCL |
| LED/Laser Mode Switching |
INCL |
| Current working mode running speed display Current working mode running speed adjustment |
INCL |
| LED/Laser Lock and Unlock |
INCL |
| Enable and disable LED/Laser mode |
INCL |
| All mode time coefficient display |
INCL |
| All mode time coefficient modifications |
INCL |
| Pattern programming (can create any pattern and upload it to the device) |
INCL |
| Button function customization (device button logic can be changed as desired) |
INCL |
| System locking and unlocking (unlock after locking) |
INCL |
| The machine can only be in standby mode |
INCL |
| Automatic shutdown time setting during standby mode |
INCL |
| Vibration switch and intensity setting |
INCL |
| Buzzer switch and intensity setting |
INCL |
| Temperature control with 3 temperature points (power reduction 1, 2, and standby) settings |
INCL |
| Power value settings for reaching the temperature points of Power Reduction 1 and Power Reduction 2 |
INCL |
| Voltage control with 3 voltage points (power reduction 1, 2, and standby) settings |
INCL |
| Set the power value at the voltage points of Power Reduction 1 and Power Reduction 2 |
INCL |
| Maximum power limit for LED and Laser |
INCL |
| Slow start value setting (10-1000ms slow start can be set) |
INCL |
| Bluetooth authentication switch and password settings (must be authenticated before turning on) |
INCL |
| The light source automatically switches to standby mode without any operation when turned on |
INCL |
| System startup countdown (the device cannot turn on the light source after the countdown ends) |
INCL |
| Equipment name setting |
INCL |
| Device owner information settings |
INCL |
| System boot duration display |
INCL |
| LED cumulative working time display |
INCL |
| Laser cumulative working hours display |
INCL |
| Firmware OTA upgrade |
INCL |
|
- Laser Rangers - Nine Unique Host Styles
The Laser Rangers, we offer 9 different housings for the Ranger, each comes with different engrave patterns and number of vial areas for you to create your own personal laser host. Please leave a message what laser host do you want when you bid, Or we will choose the style 2 laser host for you.

There are:
6 vial areas on style 2 & 3 & 5 & 6 laser host;
11 vials areas on style 8 & 9 laser host;
18 vials areas on style 1 & 4 laser host;
23 vials areas on style 7 laser host.
(Please leave an instruction in your order to let us know the tritium vials colors what you want, And you do need pay extra $10 for each tritium vials, Such as: 6pcs tritium vials x $10 each = $60, Our price NOT Including the tritium vials, Please contact us to adjustable the price if you need add the tritium vials, thank you!)
NOT Including Tritium Vials Effect Display
After Add Tritium Vials Effect Display

- Power adjustable Compact Handheld Laser
Now you have full control to the laser power by turning the dimmer switch, from 0 to full strength, not only that, the newly added second dimmer switch offers varies speeds in Breath mode, Strobe Mode, Quick strobe and SOS mode which is exclusive for multi-functions only.
Multi Mode: One Power Dimmer Swtich + Mode Dimmer Switch
|
