IRM1 808nm-850nm Infrared Laser Module Air-cooled TTL Modulation 500MW-1000MW

$70.00

WARNING: Input voltage is 12V, Overpressure can cause instantaneous damage to the circuit and modules.
This type of product can be widely used in various stage laser lights, Industrial grade lasers with TTL modulation that can work continuously.
We can provide customers with optoelectronic solutions and design laser modules that meet their needs.

Received successfully

Coupon Code

Add to Favorites

Description

Model：	IRM1 Infrared Laser Module
Brand：	Shadowlasers
Wave Length：	808nm/850nm

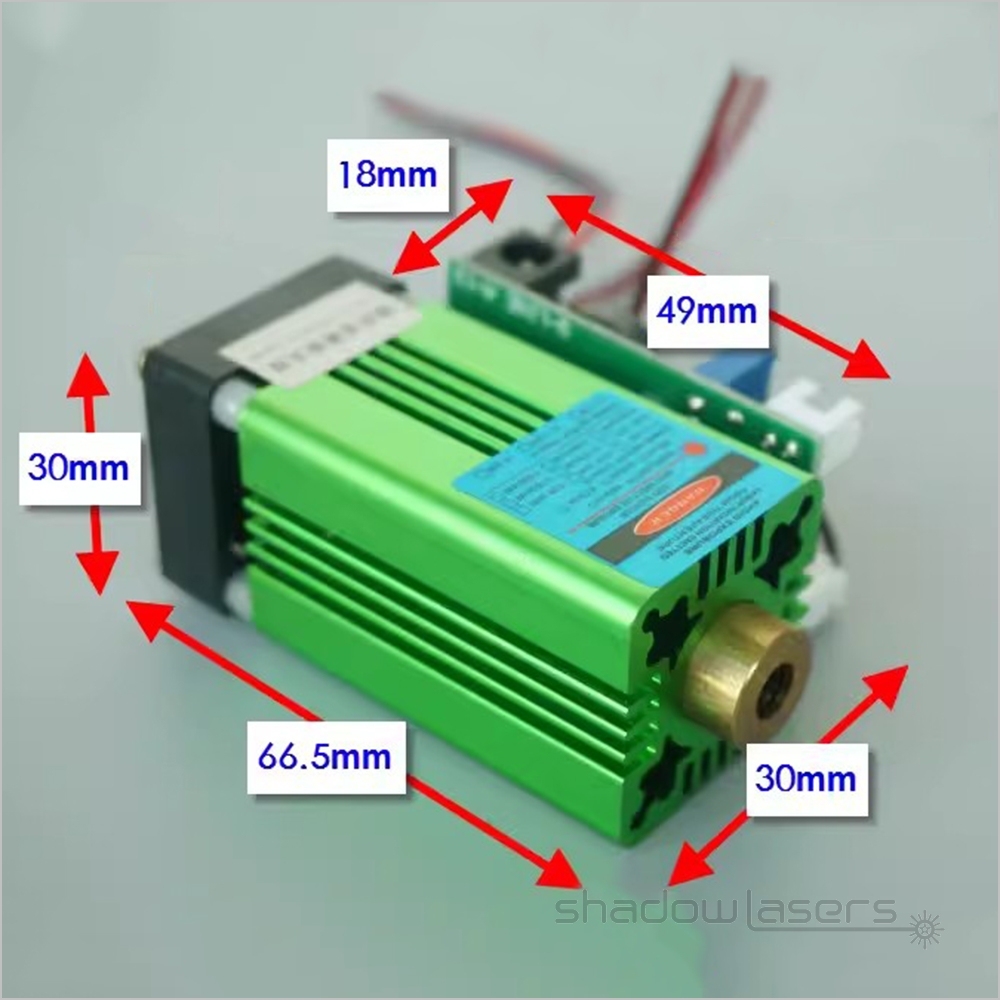

Host Dimension：	693030mm
Circuit Dimension：	47.531.516mm
Max Output Power：	500MW/1000MW
Laser Classification：	Class IV
Focus Mode：	Adjustable Focus
Refrigeration Method：	Aluminum Heat Dissipation
Modulation Frequency：	TTL 1-20K Hz
Job Characteristics：	Can Work Continuously
Surface Treatment：	Hard Anodizing Green
Body Material：	Aviation Aluminum
Circuit Control：	Step-down Constant Current
Reverse Protection：	With Automatic Recognition of Positive and Negative Electrodes
Working Voltage：	DC=12V
Working Current：	I <100mA
Preheating Time：	None
Working Temperature：	-10 ℃ ~ +40 ℃
Storage Temperature：	-10 ℃ ~ +40 ℃
Structural Features：	Laser Tube+Lens+Heat Dissipation Shell
Power Supply：	External
Net Weight：	350g

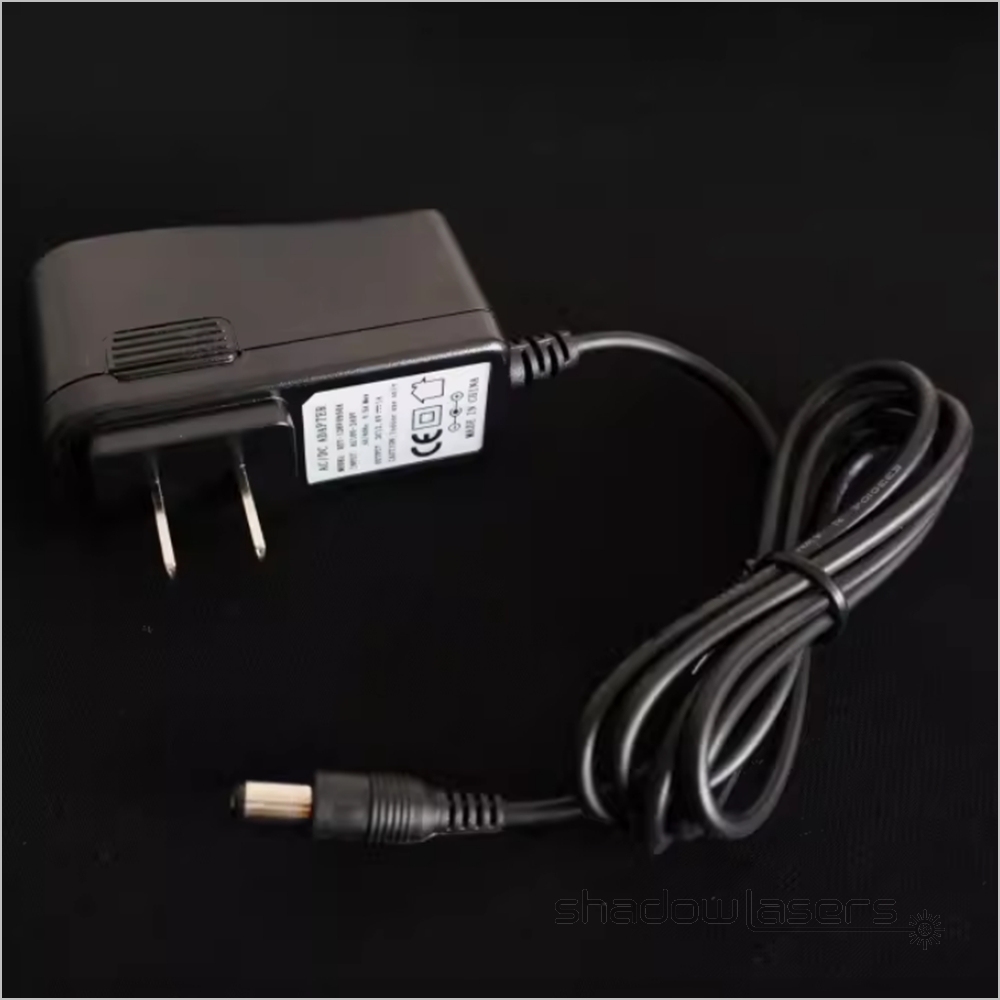

5V Power Adapter (78g)：	Input: 100-240V 50/60Hz 300mA
	Output: 12V-1A
	Port size: 5521DC (5.5 * 2.1mm) Male Terminal
Warranty：	1 Year Manufacturer's Warranty
PACKING LIST 1 * Infrared Laser Module 1 * 5V Power Adapter (Adapter To Fit Your Country)
