Laser Function
- Single-Operation Mode & Multi-Operation Mode
Single-operation mode lasers runs in full power mode only.
Multi-Operation mode lasers has five unique settings with an additional electronic safety lock function.
- The five unique operational modes cycle in the below order:
Low Power > Half Power > Strobe > Full Power > SOS
- How to Access the Multi-Operation Functions
Half-press the button once to enter the next operational mode.
|

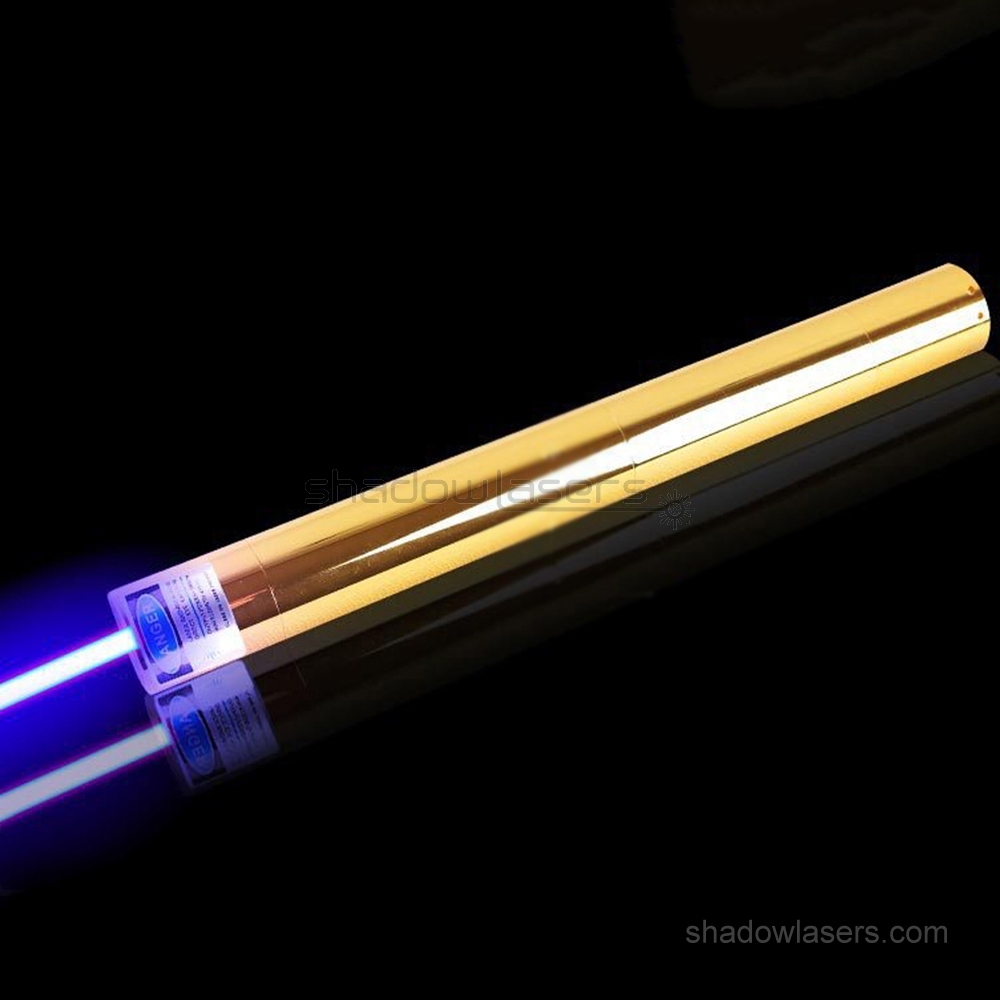

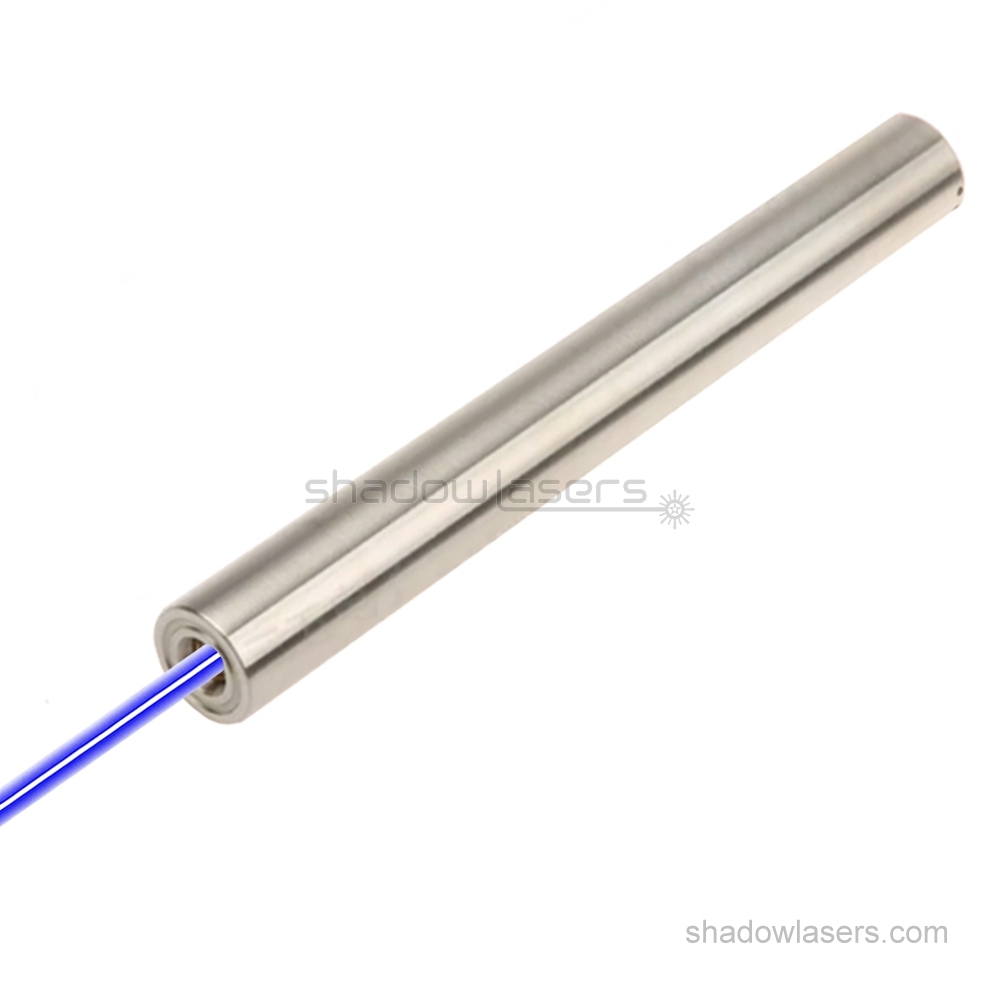

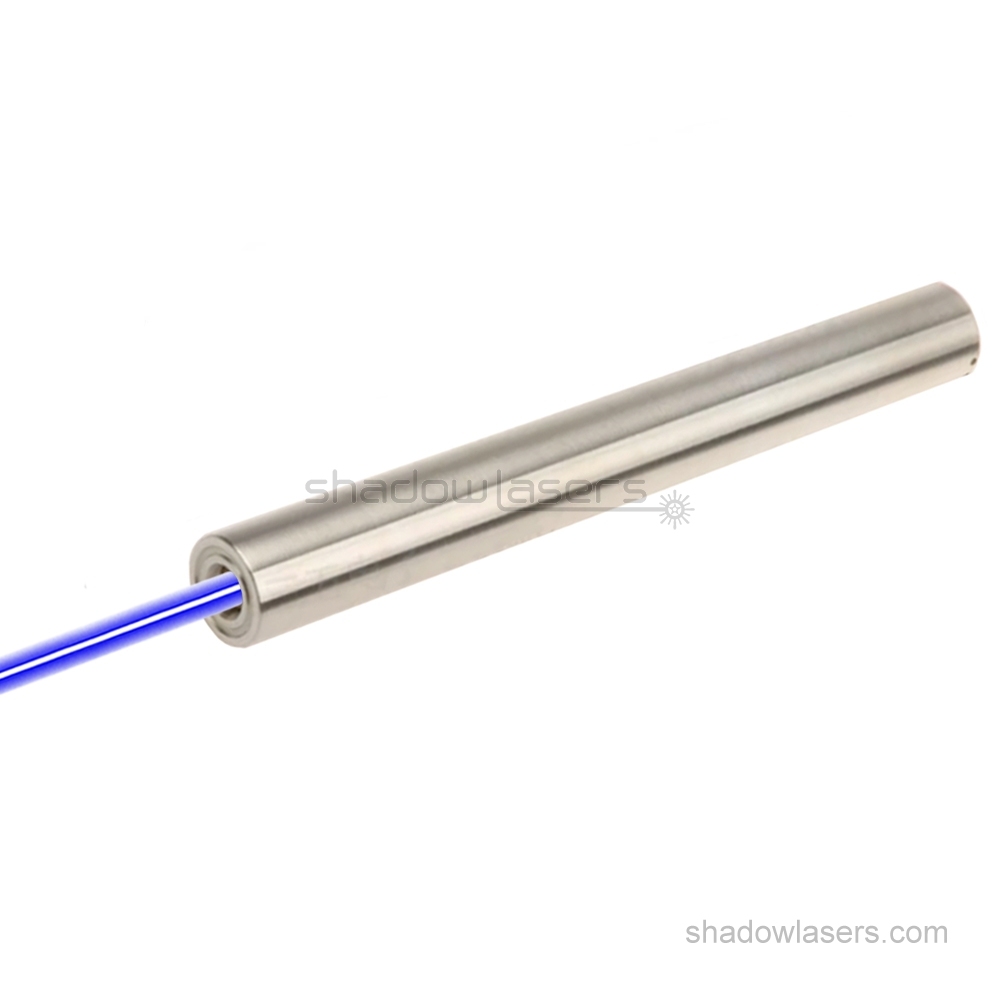

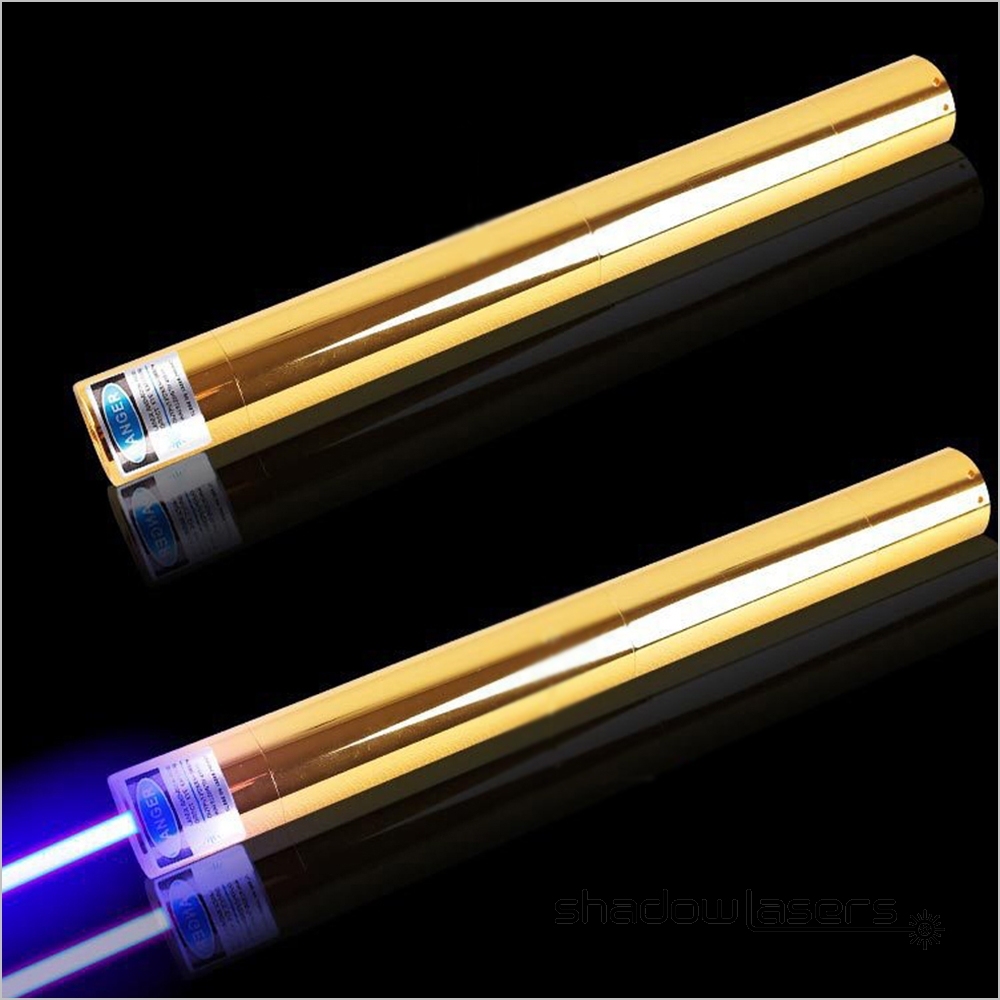

"Hero" Silver Series - Our Classic Full Copper Chassis Design
- Copper – An Excellent Heat Dissipater

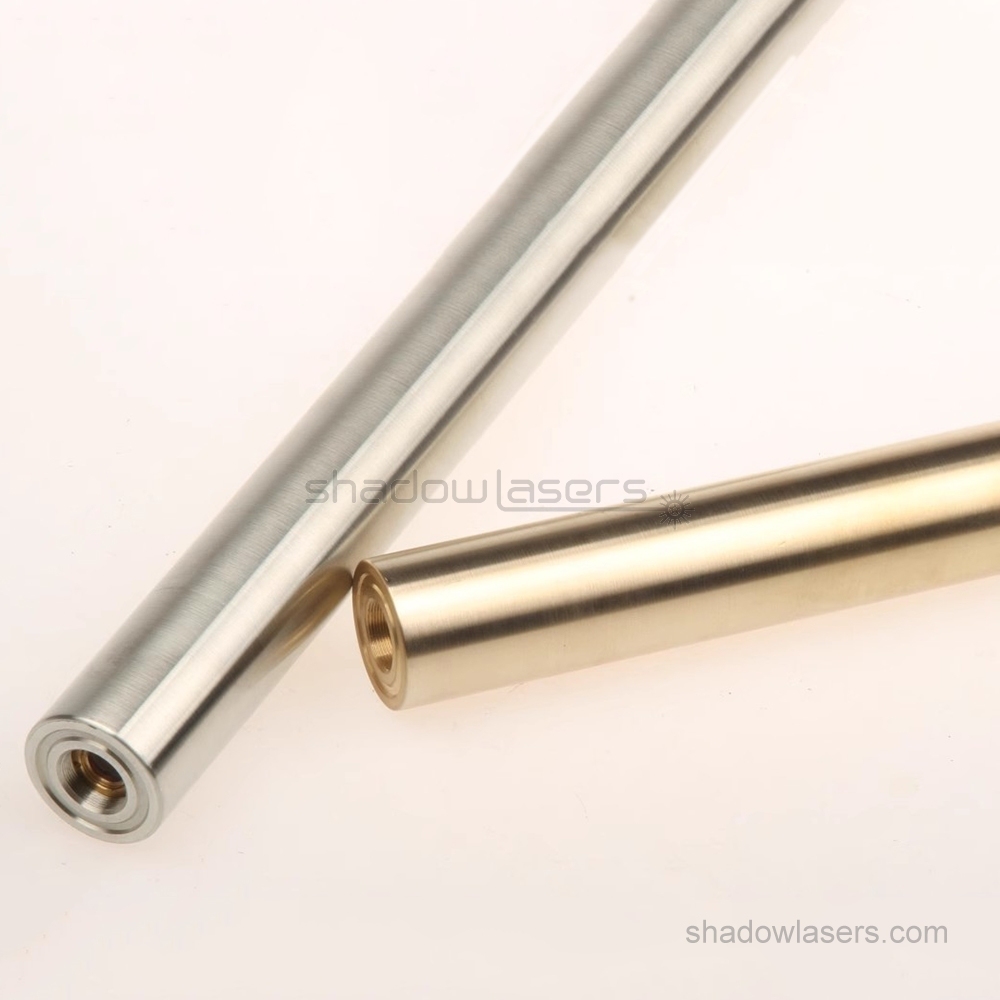

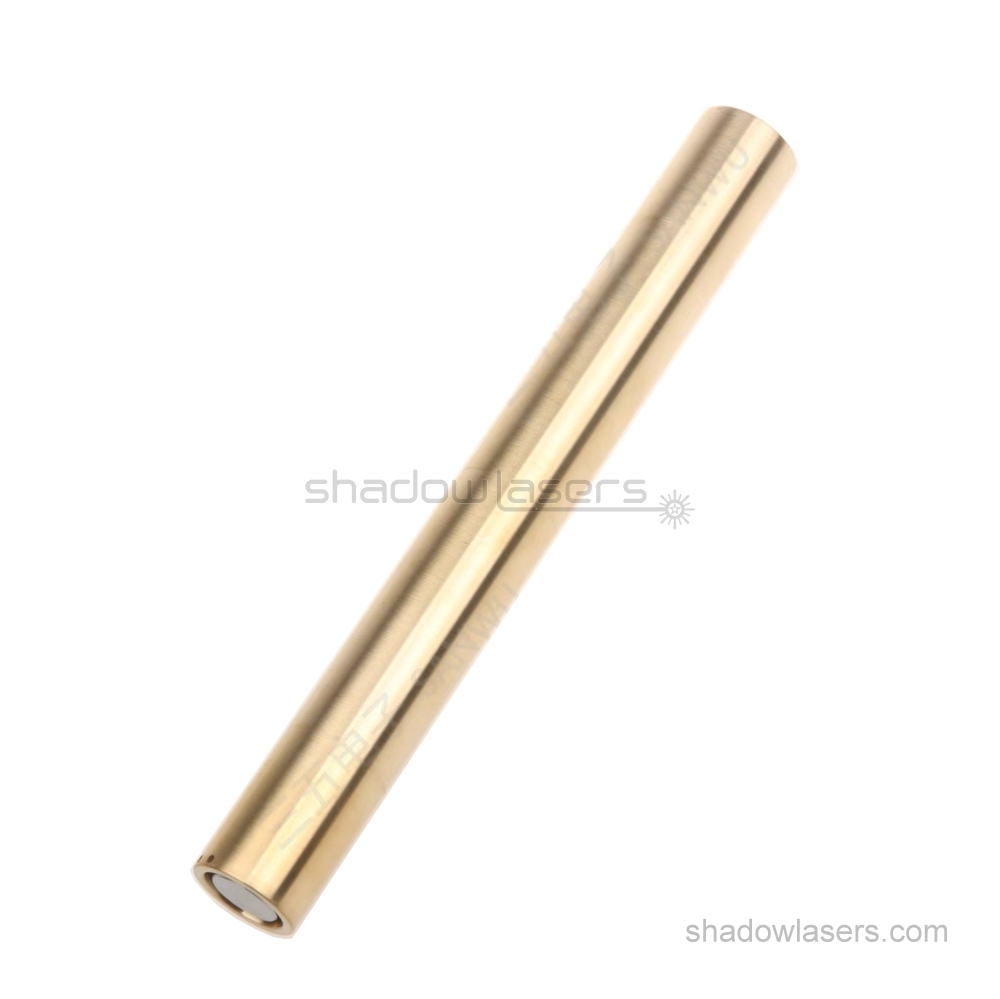

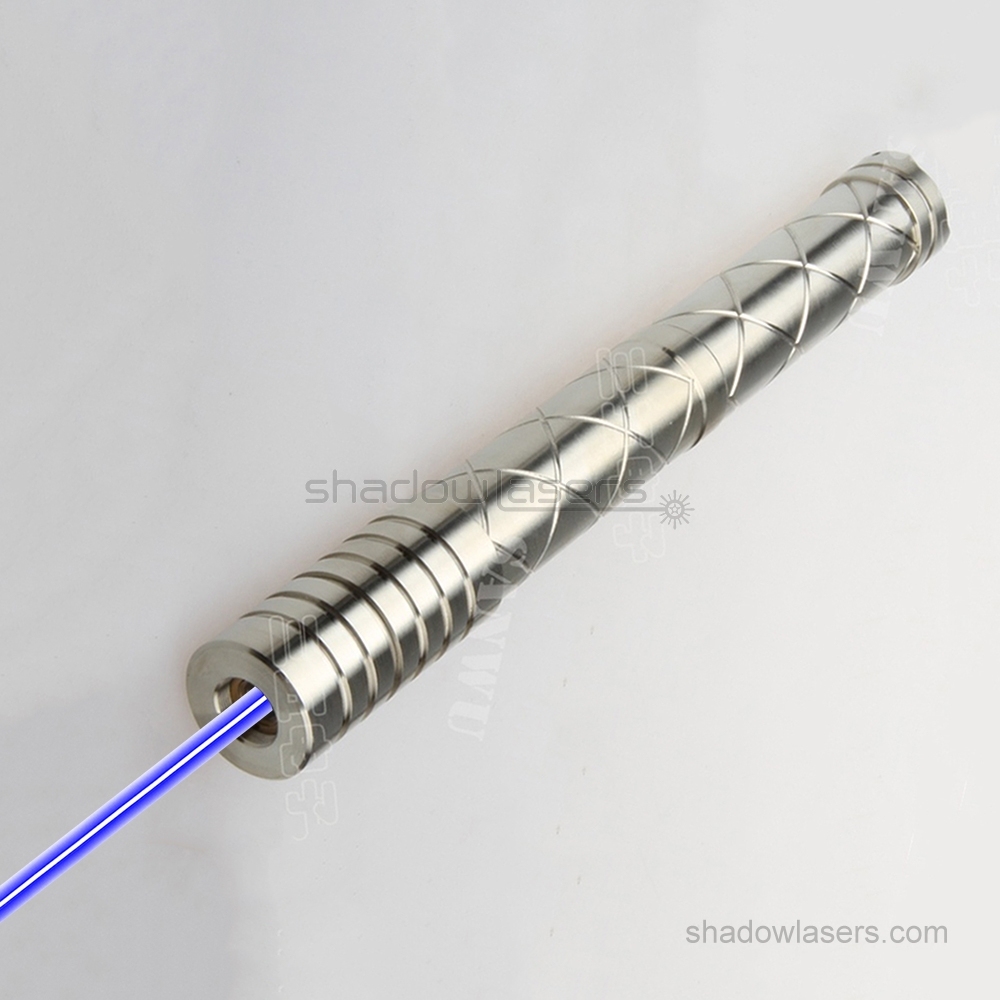

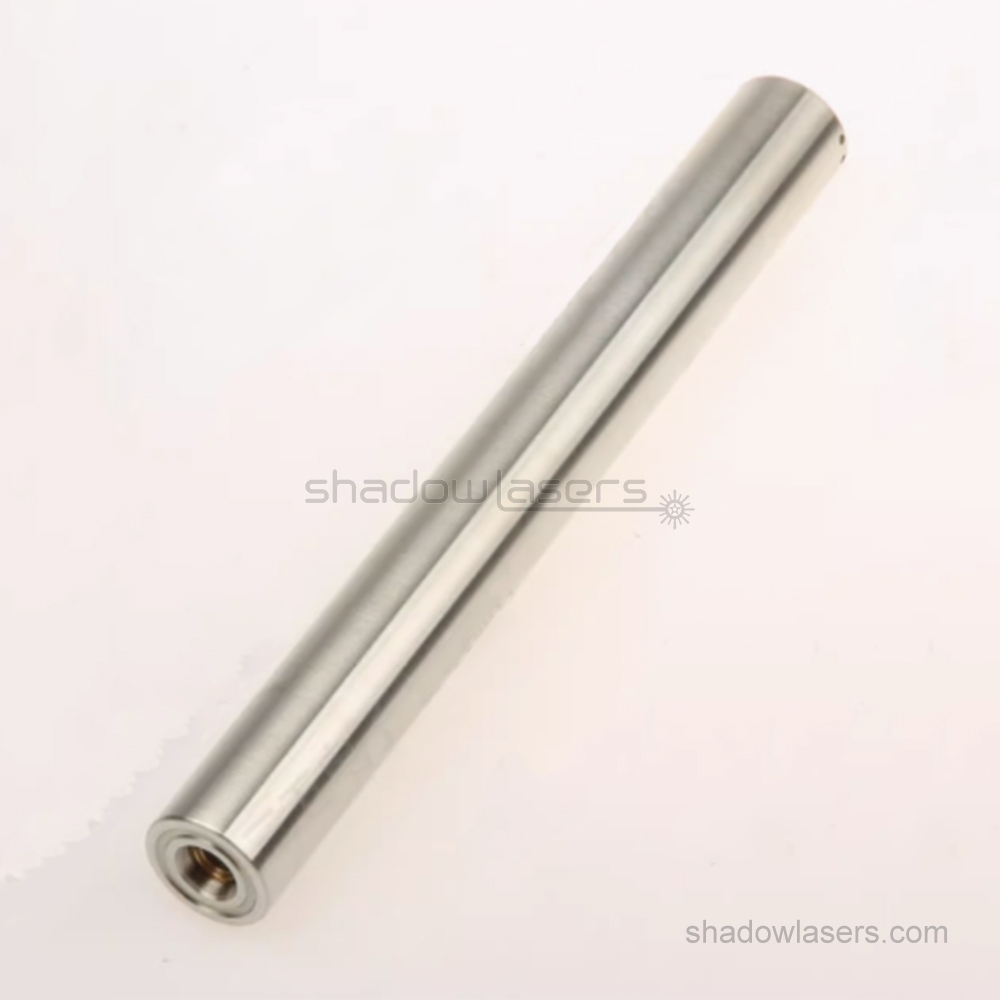

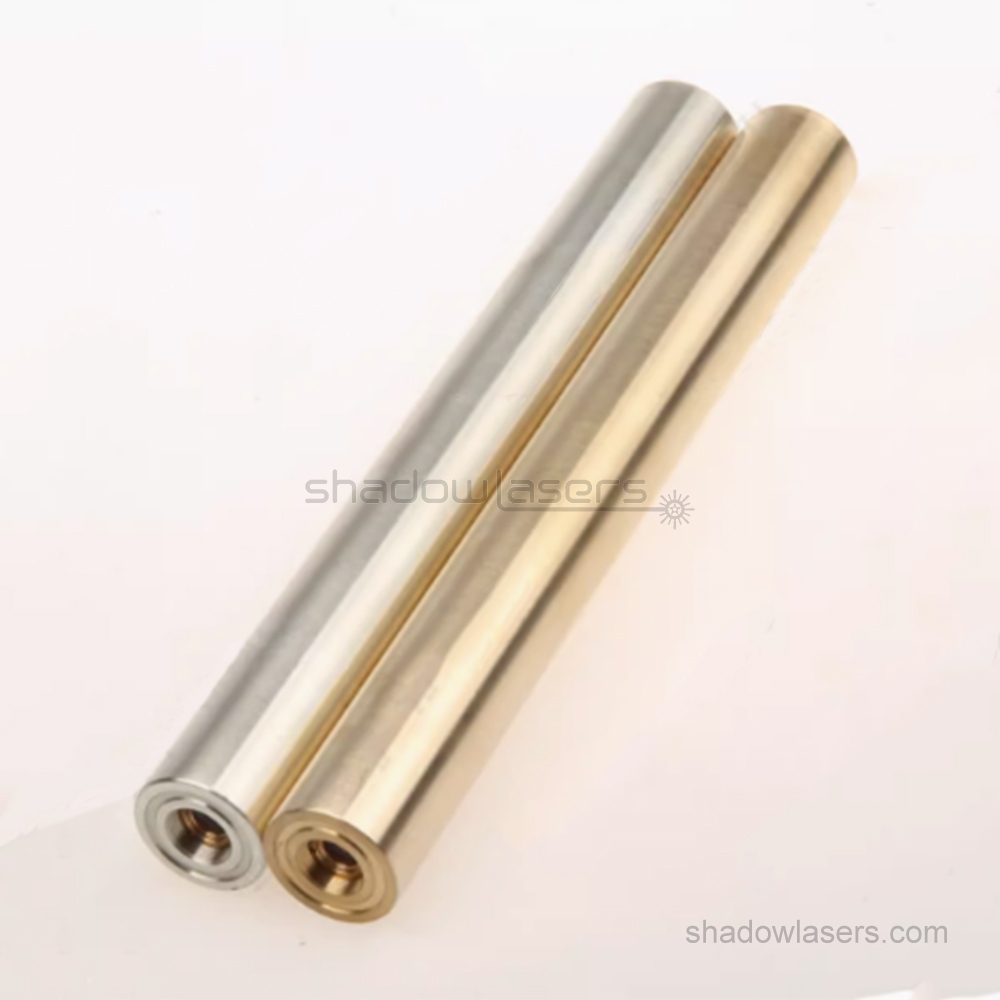

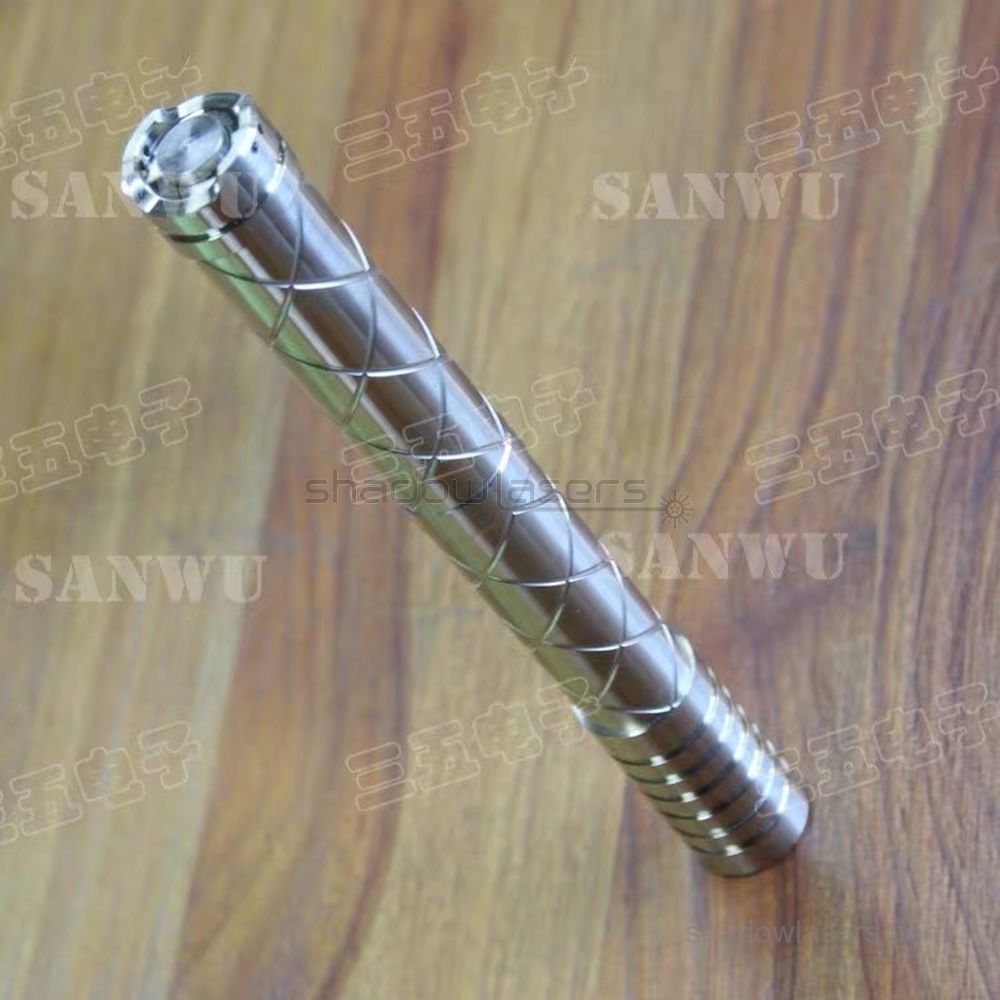

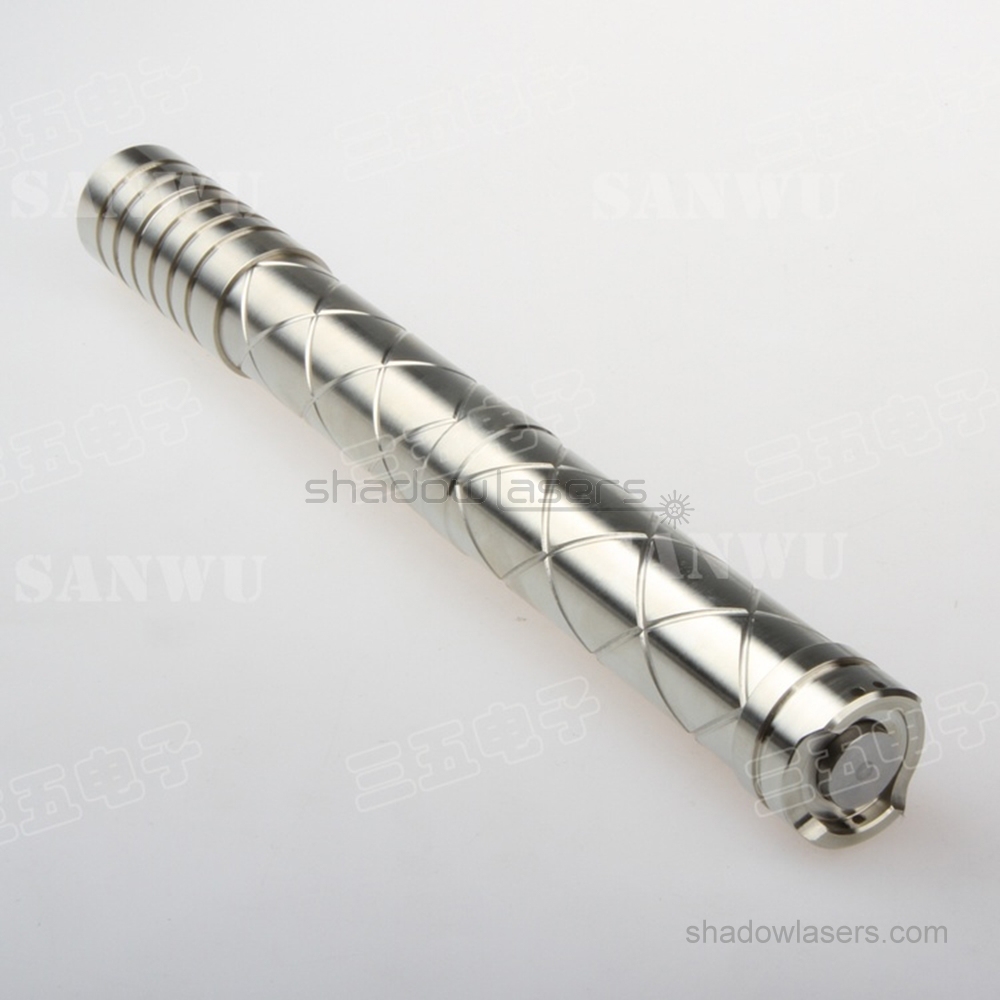

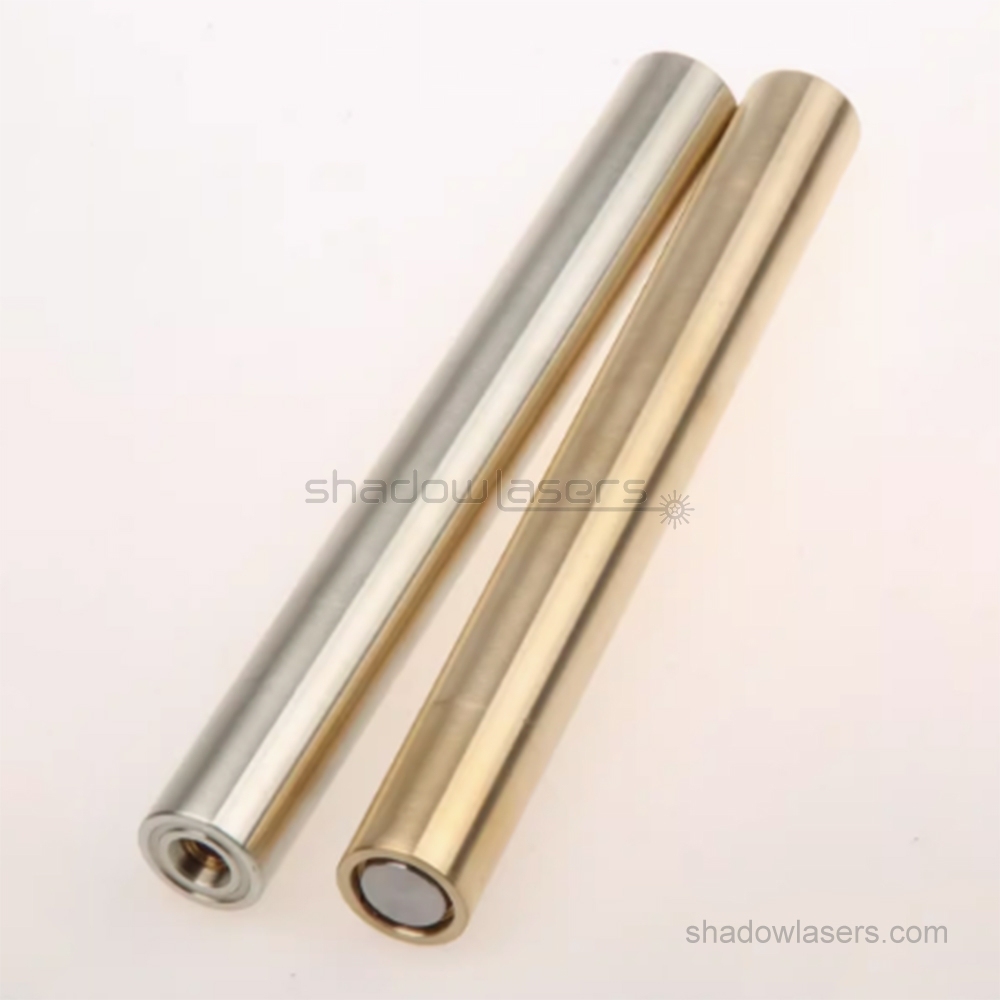

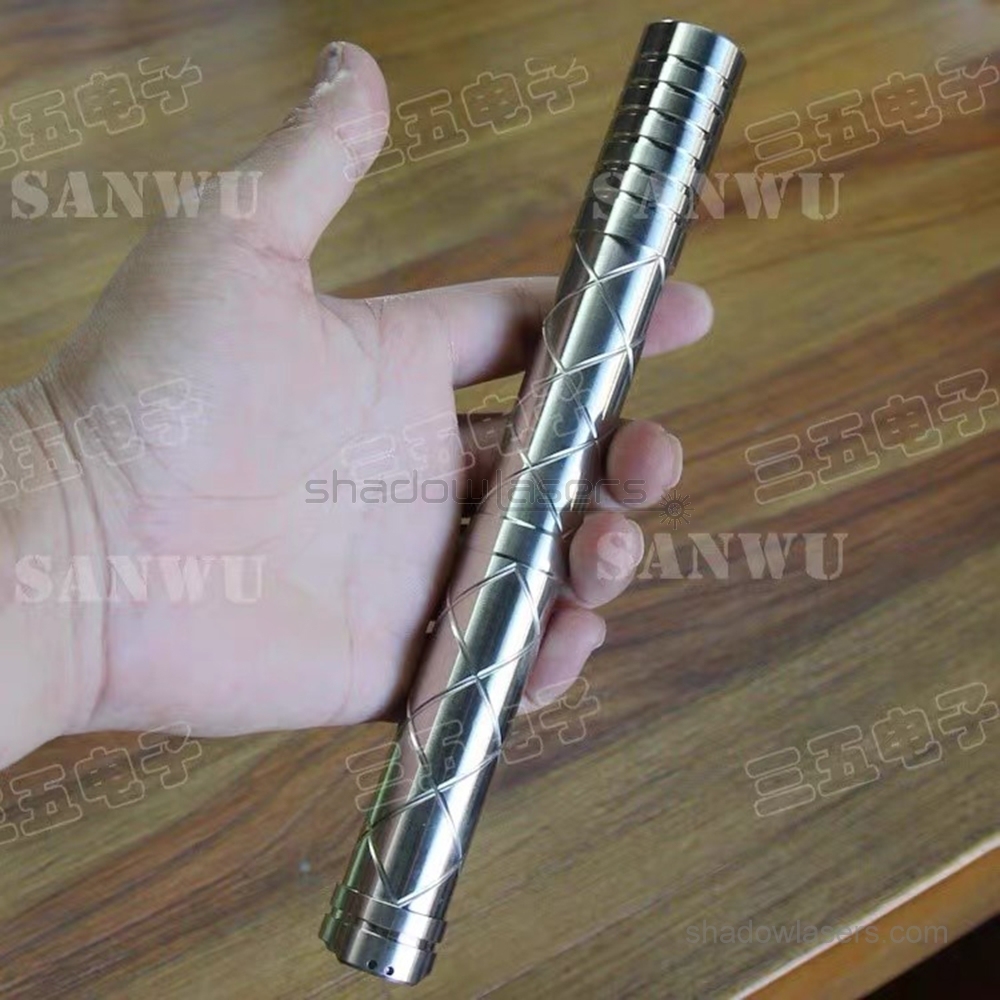

The Silver series rapidly cools down after using the powerful laser diode! The full copper chassis comes in two stylishly engraved housings! The Silver is powered by two 18650 li-ion batteries which guarantees a long run time and duty cycle or two 18350 batteries for less weight.
We developed our first intelligent driver specifically for the Silver to improve the average performance and output stability of a handheld laser. Our multi-function driver monitors and adjusts the power consumption continuously to preserve the laser diode and the driver!
As one of the leading handheld laser manufacturers, we always ensure top-notch quality of all of our products.
- Electronic Safety Lock(For multi mode only)
To prevent unauthorized use, half-press the button three times within the first three seconds immediately after the laser light is visible. The laser should switch to strobe mode before entering the safety lock(dim laser dot).
Power on the laser and wait one second. Next, half-press the button five times within three seconds and then wait another 2 seconds. The laser should now switch to strobe mode indicating that the laser is unlocked.
The laser memorizes the operational mode last used for more than five seconds. This feature allows you to start the laser into the last operating mode without entering the button sequence pattern.

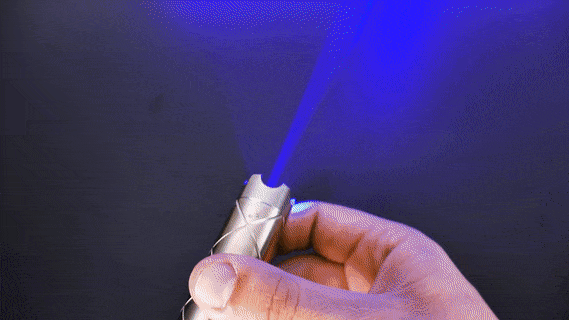

The Guardian has a fully adjustable focus. Just twist the attack head located at the top of the laser to adjust the beams focus.
Our lasers come with several battery protections to protect the laser and the battery: over-discharge protection, over-charge protection and reverse polarity protection.
- How to Power the Laser On
Silver is powered by 2x18650 protected lithium-ion batteries or 2x18350 unprotected 18350 li-ion batteries(after removing one of its battery extenstion tube). Insert the batteries with the positive side going in first. Next, screw on the base cap and press the power button to operate the laser.
|
| Model： |
"Hero" Silver Series: BW5 Bule Laser Pointer |
| Brand： |
Sanwu Lasers |
| Wave Length： |
445nm |
| Dimension： |
φ24*215mm
|
| Max Output Power： |
1500MW/3000MW/5000MW/6000MW/7500MW |
| Laser Classification： |
Class IV |
| Focus Mode： |
Adjustable Focus |
| Switch： |
Push Button Constant On/Off
Electronic Safety Lock With Button Mode Switching
|
| Operation Mode： |
Single Mode or Multi Operation 5 Modes |
| Multi Operation 5 Modes： |
Low Power > Half Power > Strobe > Full Power > Emergency SOS |
| Beam Divergence: |
1.5mRad-4.8mRad |
| Required Eyewear O.D. |
3.0+ |
| Surface Treatment： |
Hard Anodizing Gold/Silver |
| Body Material： |
Nickel Copper Alloy |
| Laser Net Weight： |
400g (Smooth)
385g (Engraved) |
| Expected Lifetime： |
> 8000 Hours |
| Usage Method： |
30 Seconds on & 60 Seconds off |
| Battery Type： |
Two 69mm 18650 Lithium-Ion Rechargeable Batteries
|
| Battery Direction： |
The Battery "+" Is Toward Inside of The Laser Pointer |
| Battery Lifetime： |
30~180 Minutes |
| Power Consumption： |
3.7V @ 1A-2.5A |
| Laser Range： |
2000-8000 Meters |
| Max Brightness： |
350Lm/500Lm/1000Lm/1500Lm |
| Circuit Control： |
APC |
| Flare Forms： |
Plaque-Forming - Circle |
| Beam Style： |
Continuous Line |
| Spot Size： |
6 Meters Place < φ10mm |
| Preheat Time： |
< 3 Seconds |
| Warranty： |
1 Year Manufacturer's Warranty |
|

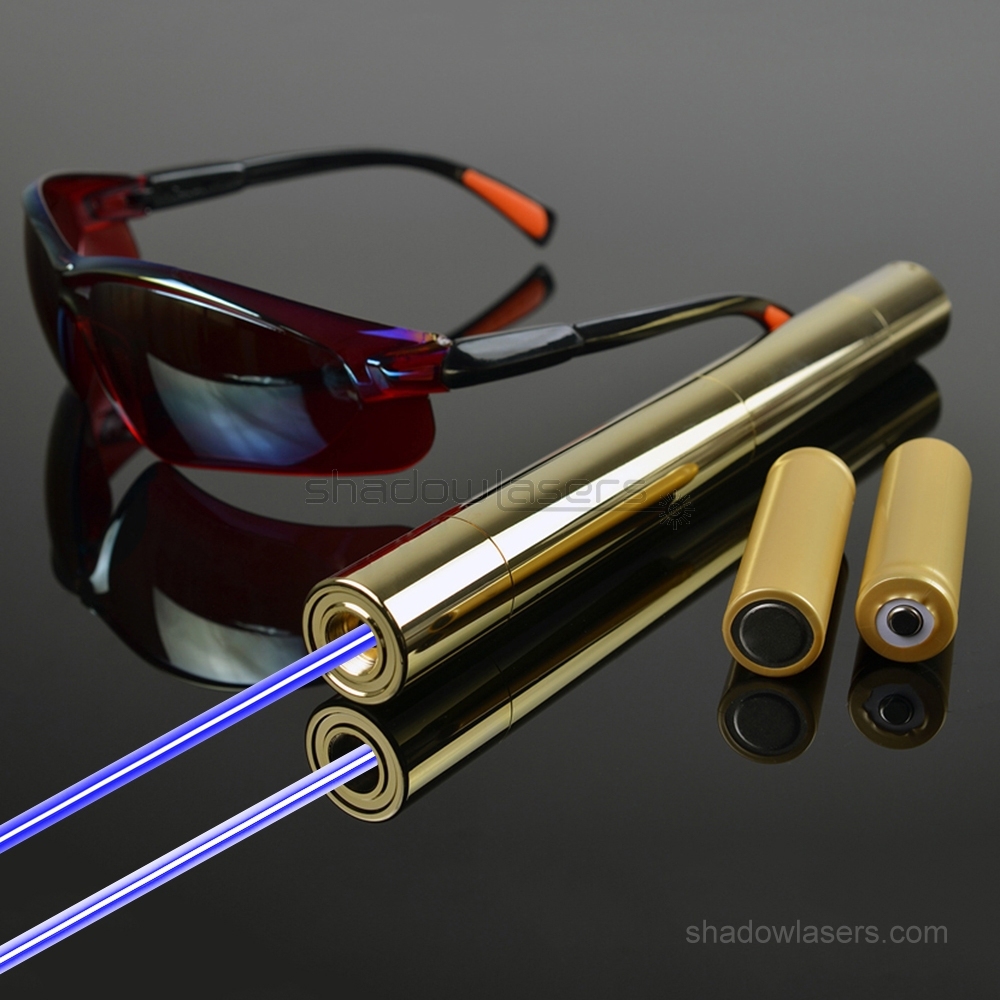

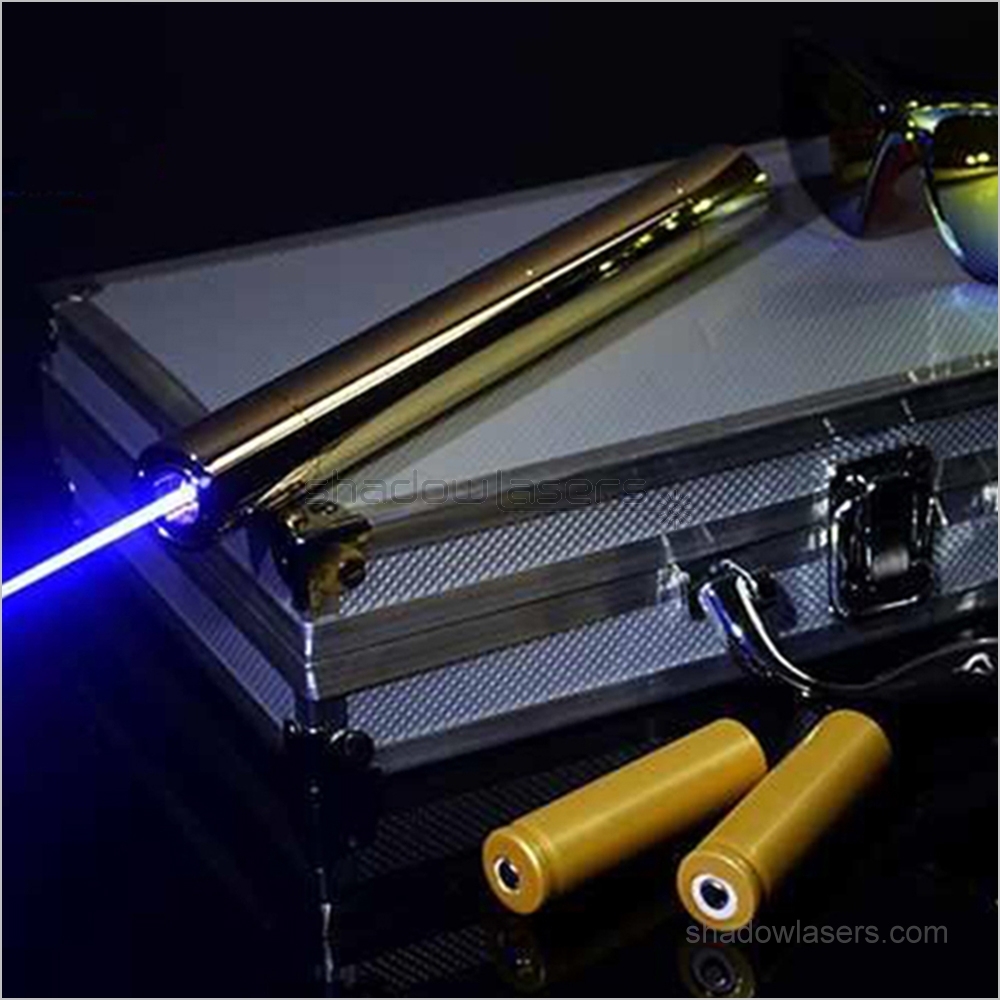

PACKING LIST
1 * Blue Laser Pointer
5 * Metal Star Caps for Effects
2 * 18650 Rechargeable Li Batteries
1 * US Charger (Adapter To Fit Your Country)
1 * Red Safety Goggles
1 * Aluminum Carrying Case
|
|

|
