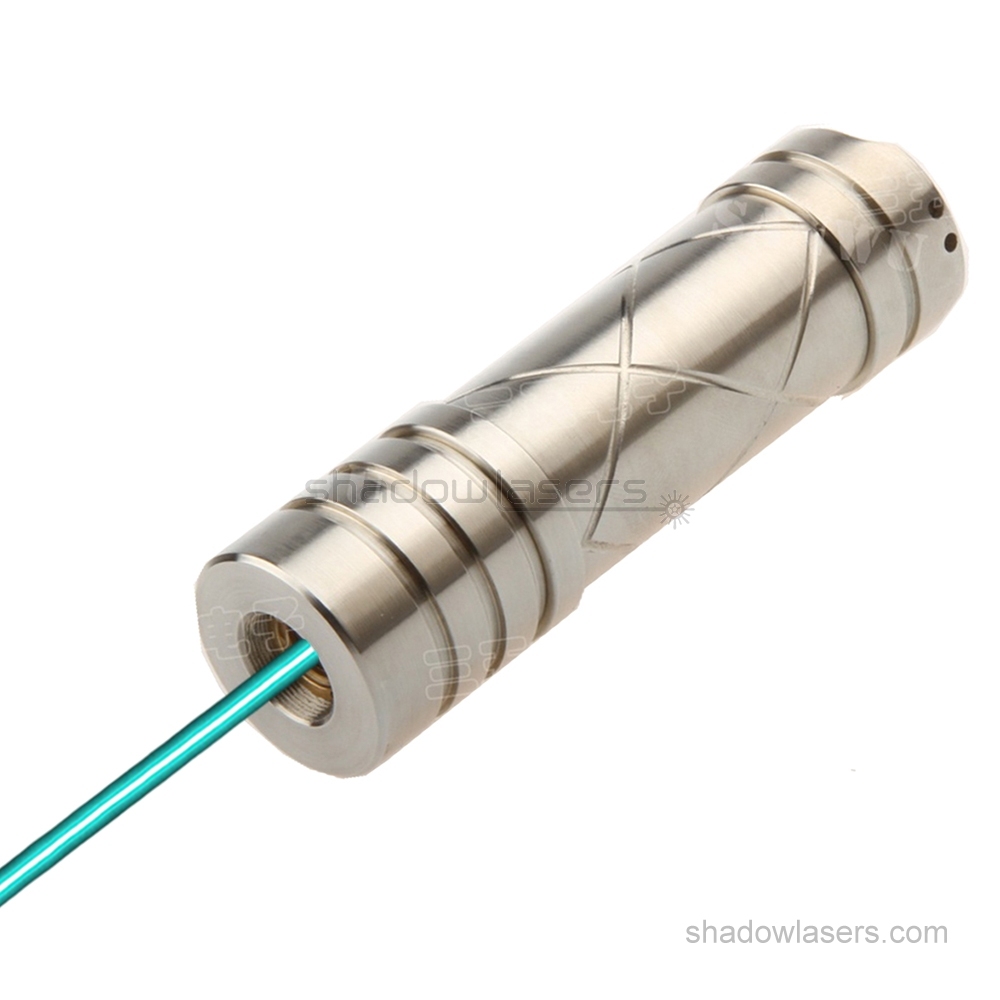

"Guardian" Series - Our Most Compact Powerful Laser

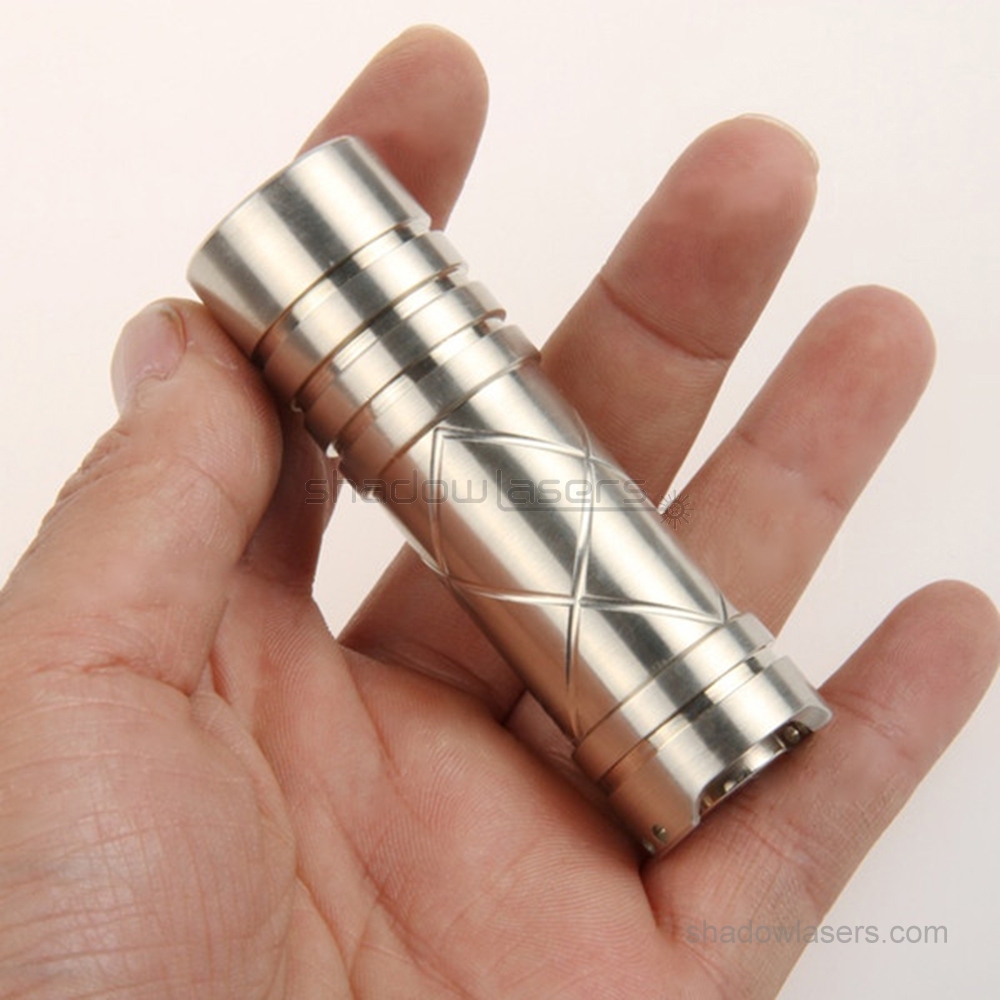

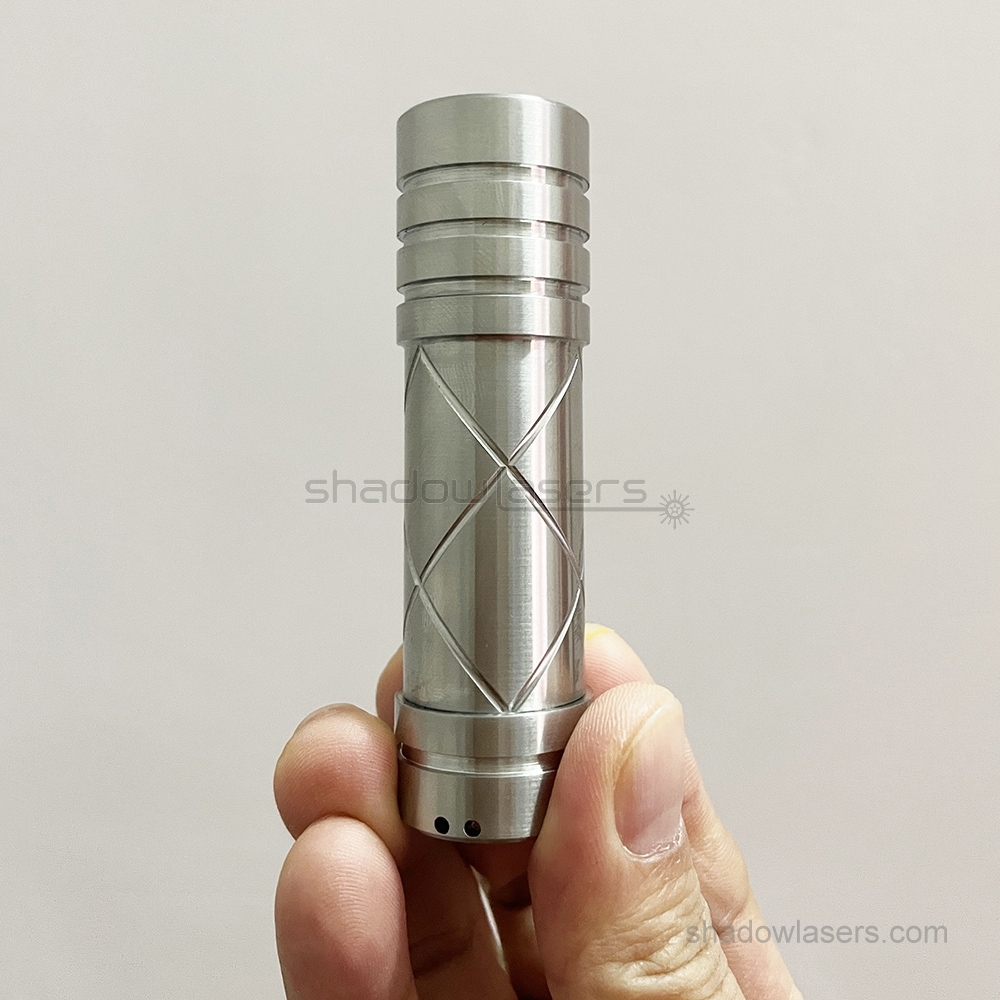

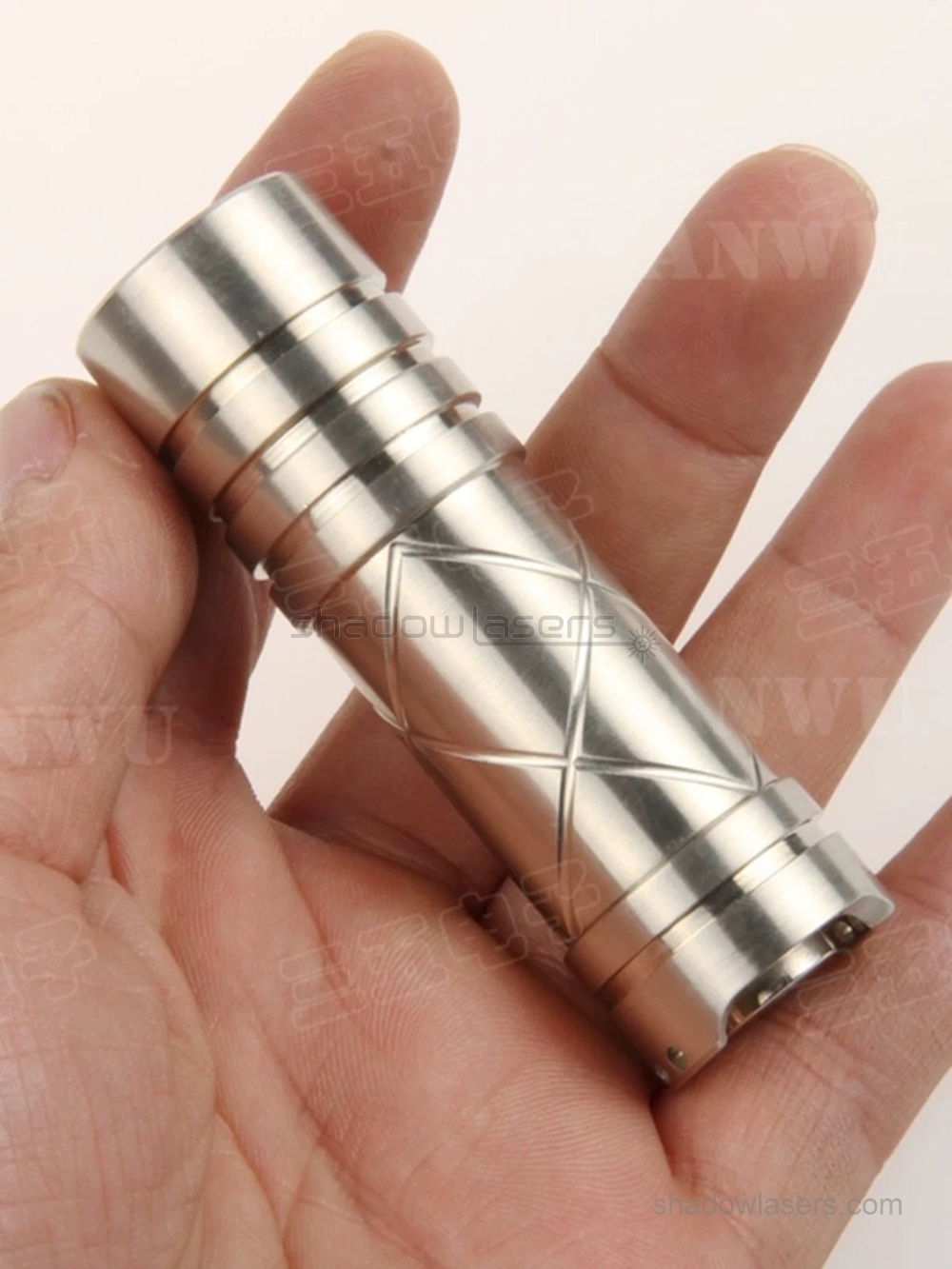

Introducing the Guardian series - Our shortest Handheld Laser! If you're on the hunt for a powerful and compact laser, look no further. Guardian is an amazingly small handheld laser with an adjustable focus. It is designed to fit inside your pockets for easy everyday use. With a weight of only 190 grams, the guardian is the most comfortable laser to hold.
Incredibly, the guardian is capable of emitting a 1.6-watt 525nm green laser beam. It is the brightest green laser beam on the Earth and could be used in many different ways to include, but not limited to, a deterrent device or a signaling device.

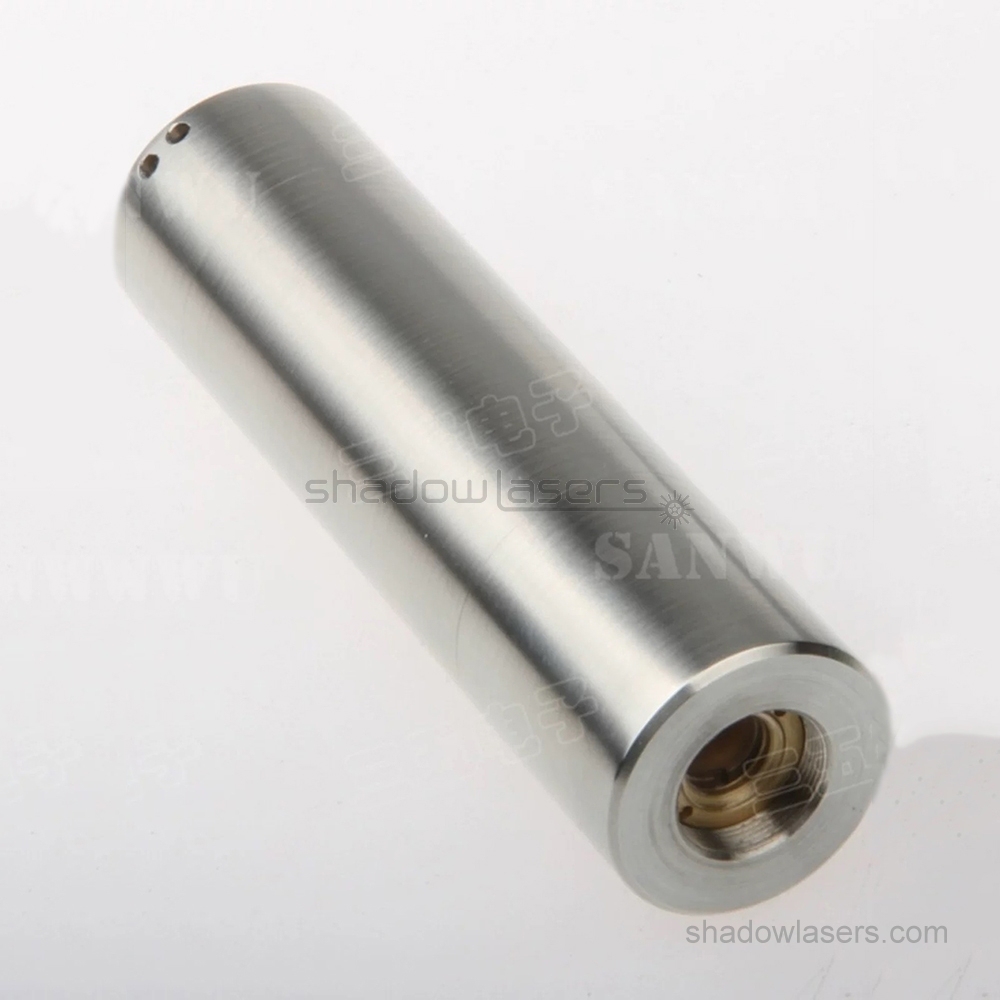

The Guardian has a 20mm copper heatsink and an 84mm x 24mm copper housing. This heatsink is phenomenal makes the Guardian capable to deliver a maximum 1.6W laser power in Green or Blue with a varied range of power & wavelengths, making it perfect for a wide range of applications

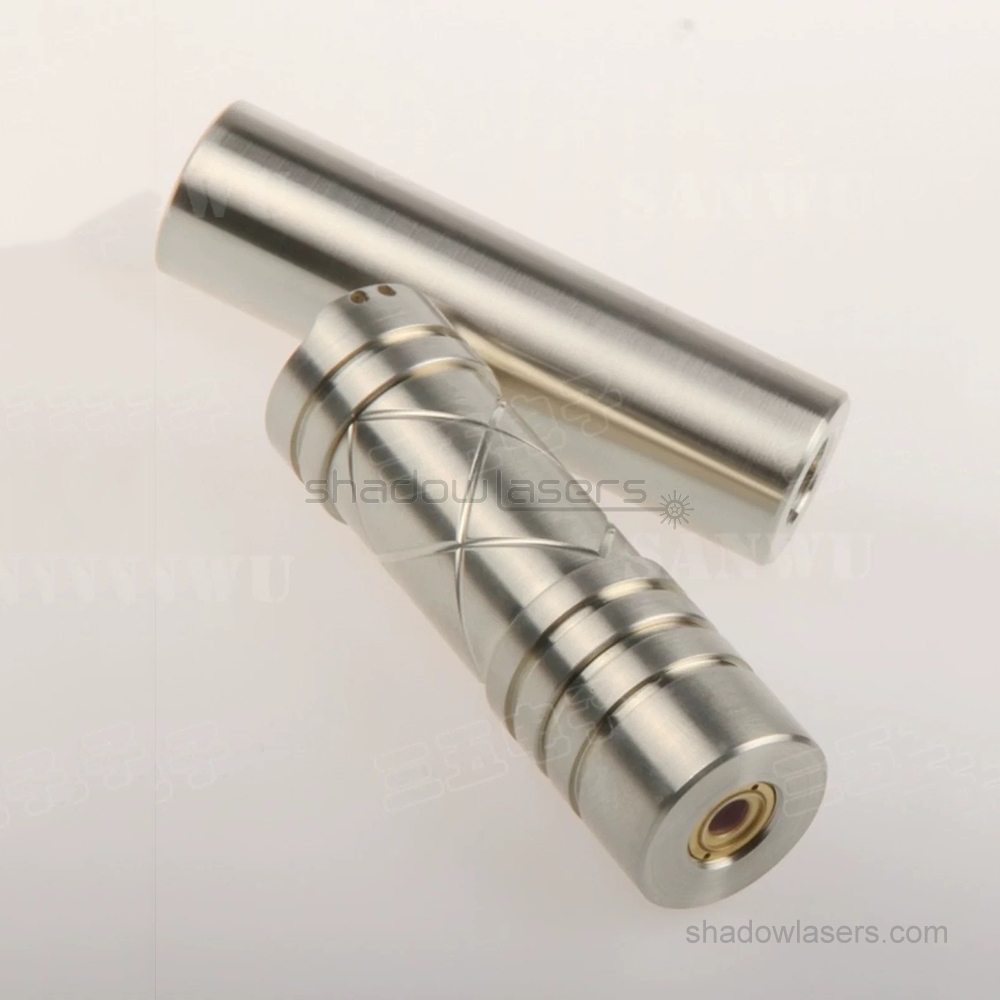

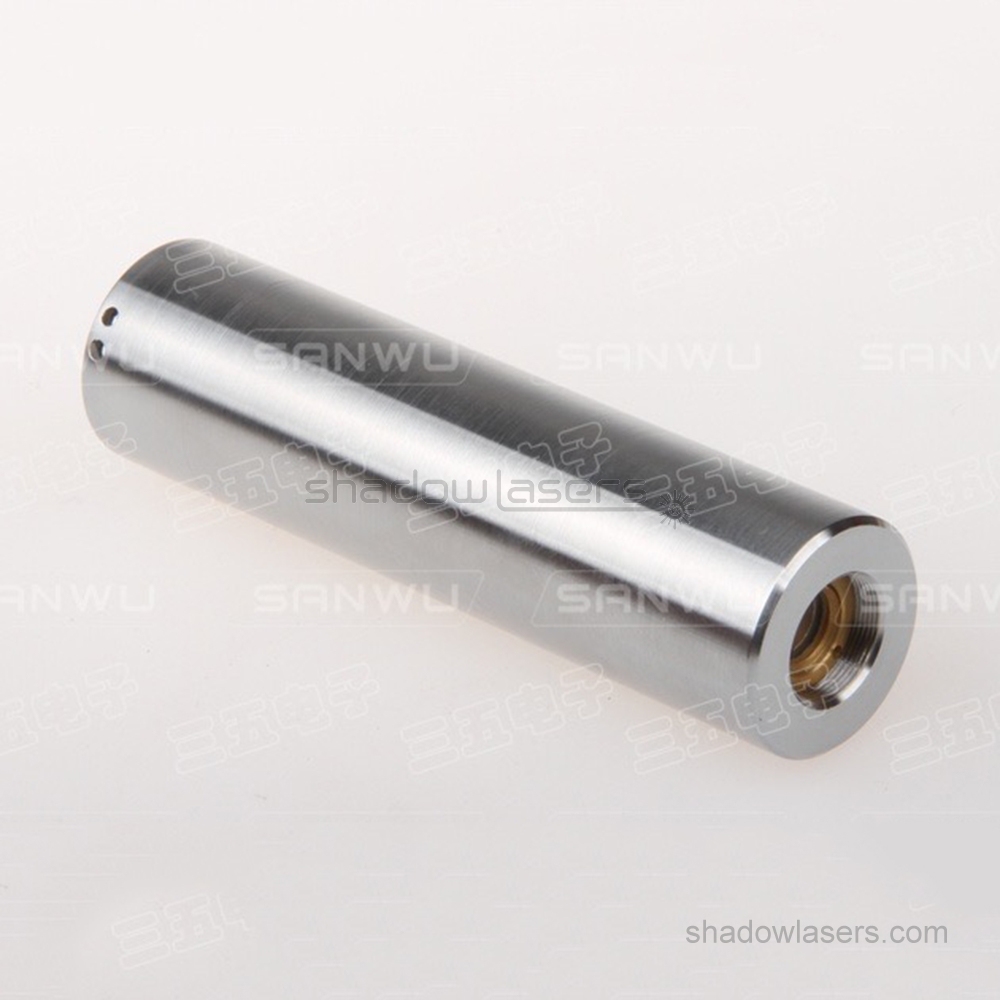

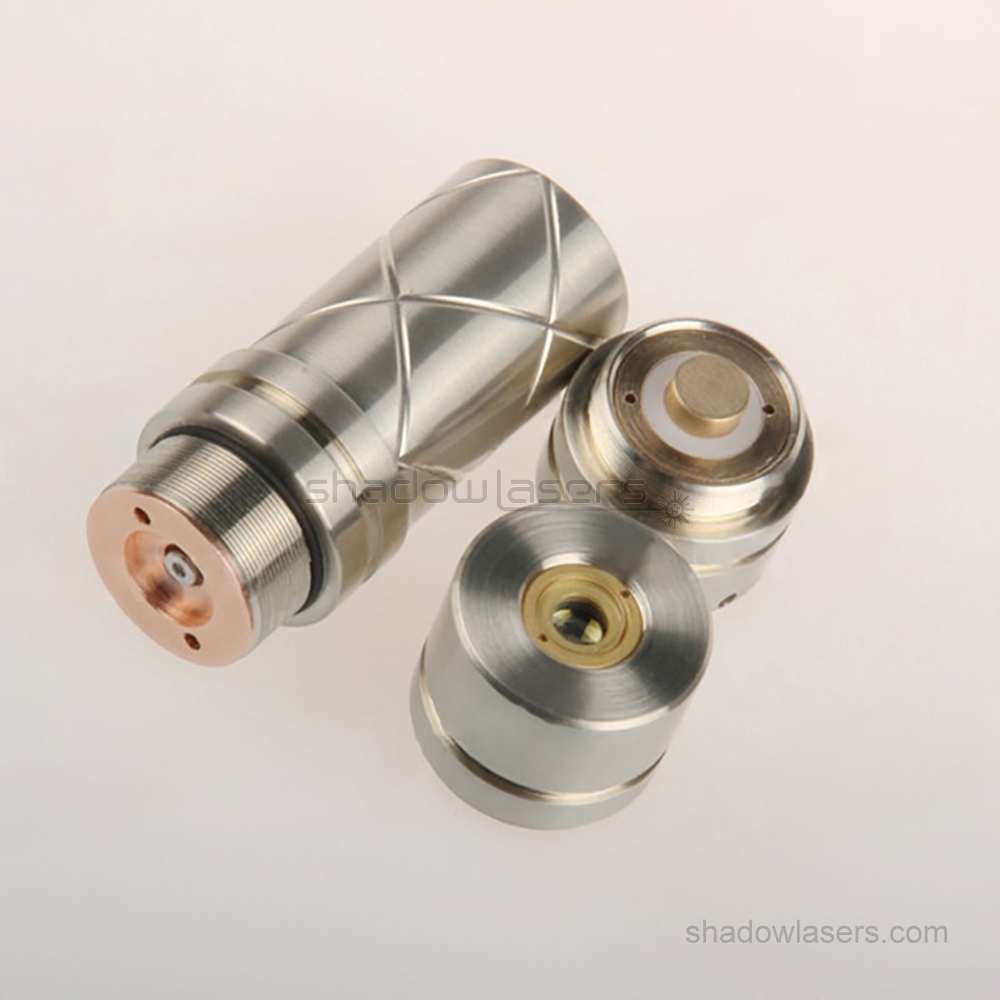

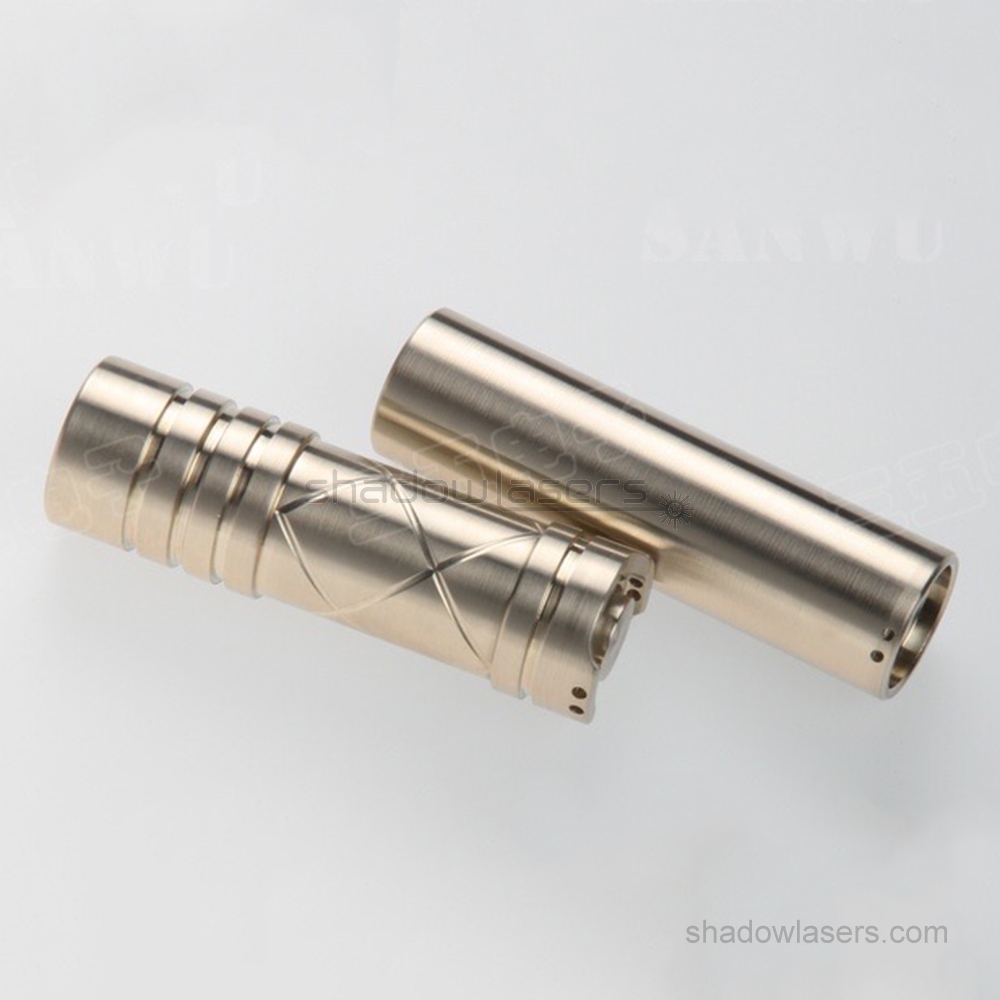

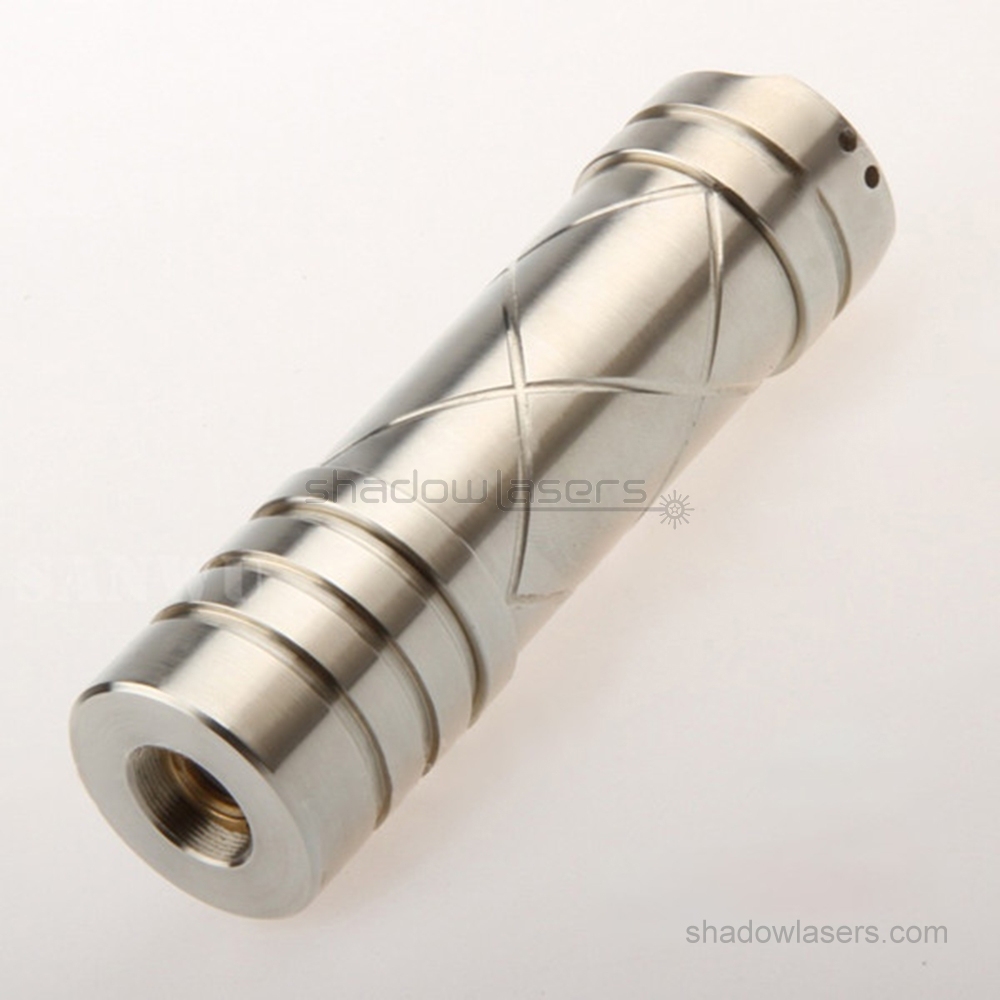

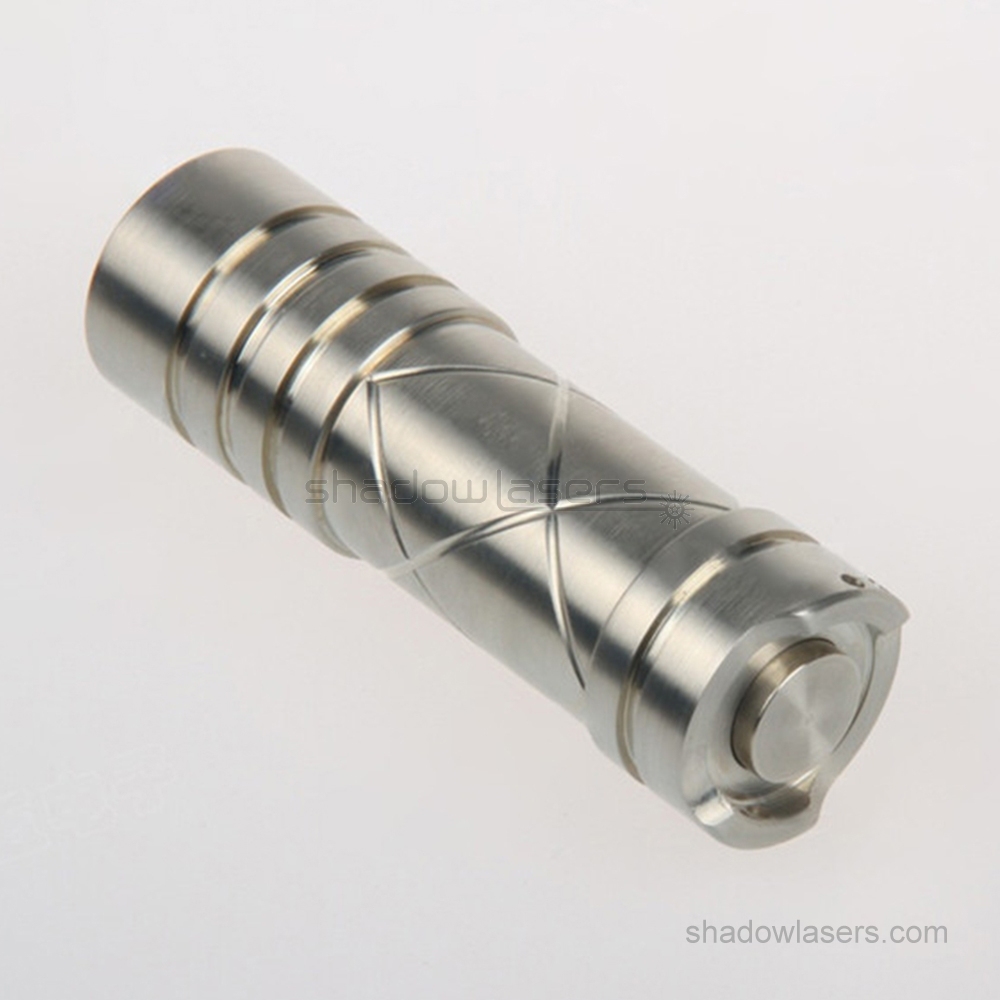

- Stainless Steel & Extended Chassis (Optional)
As a portable everyday use laser, the stainless steel has a higher resistance against scratches and drop damage. Additionally, the extended copper housing prolongs the duty cycle of the guardian laser with a greater heatsink.
Our commitment to quality and innovation ensures that each laser in the Guardian Series meets the highest standards of performance and safety. The compact design allows for easy storage and transport, while the robust construction ensures durability in various environments.
Whether you're a professional in need of a reliable tool for intricate tasks, an outdoor enthusiast looking for a versatile and compact laser, or a hobbyist seeking a high-performance device, our Pocket Series has you covered.
- Method for unlocking and switching working modes
- Starting from 1 to 3 seconds after activation, quickly jog the switch three times to enter low-power lock mode, and then memorize it for 5 seconds (safe storage mode);
- Starting from 1 to 3 seconds after turning on, quickly jog the switch 4 times to enter the medium power mode and memorize after 5 seconds;
- Starting from 1 to 3 seconds after activation, quickly jog the switch 5 times in a row to enter the burst flash mode, which will be memorized after 5 seconds;
- Starting from 1 to 3 seconds after turning on, quickly jog the switch 6 times in a row to enter high-power mode. After 5 seconds, it will be memorized;
- Starting from 1 to 3 seconds after turning on, quickly jog the switch 7 times in a row to enter SOS flash mode, and remember after 5 seconds.
- Continuous rapid tapping (half press) method
Press halfway down (do not press to turn on or off, the laser will turn off when pressed halfway down), then release and do not wait for the laser to light up. Continue tapping immediately.
The laser memorizes the operational mode last used for more than five seconds. This feature allows you to start the laser into the last operating mode without entering the button sequence pattern.

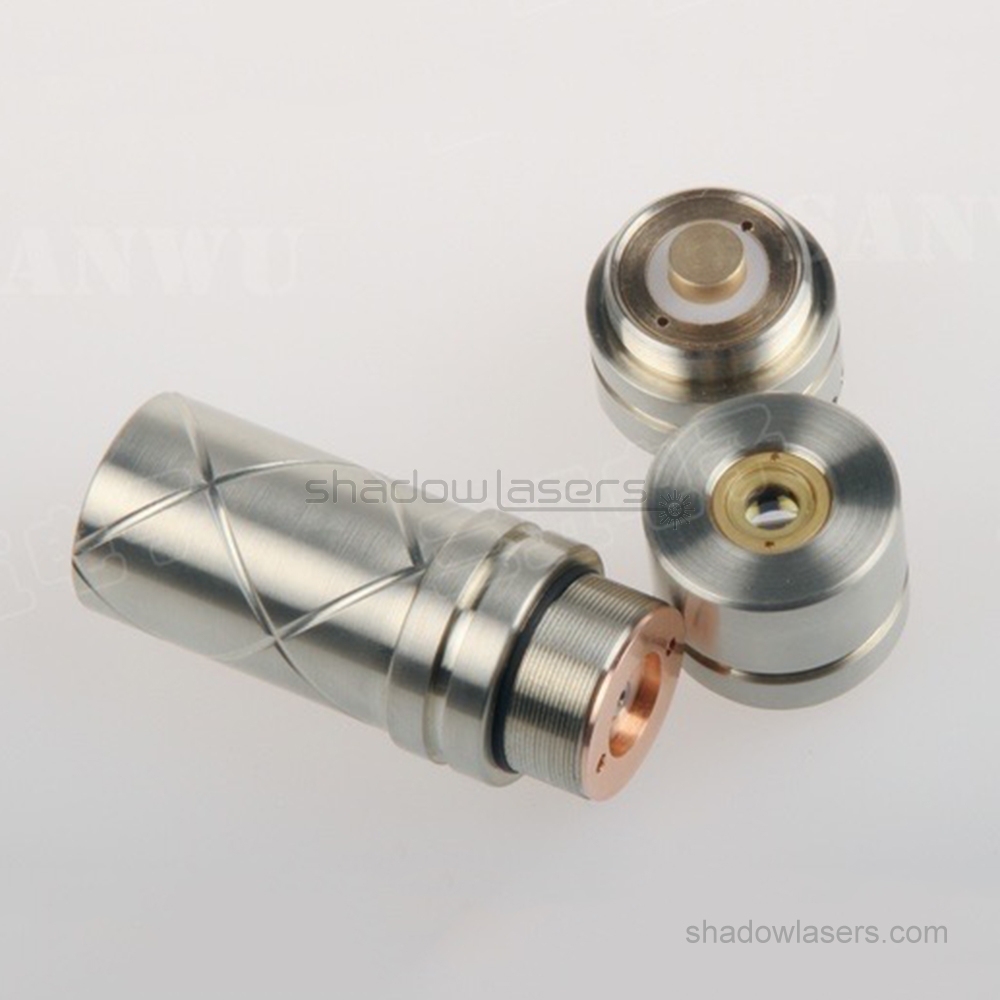

The Guardian has a fully adjustable focus. Just twist the attack head located at the top of the laser to adjust the beams focus.
Our lasers come with several battery protections to protect the laser and the battery: over-discharge protection, over-charge protection and reverse polarity protection.
- How to Power the Laser On

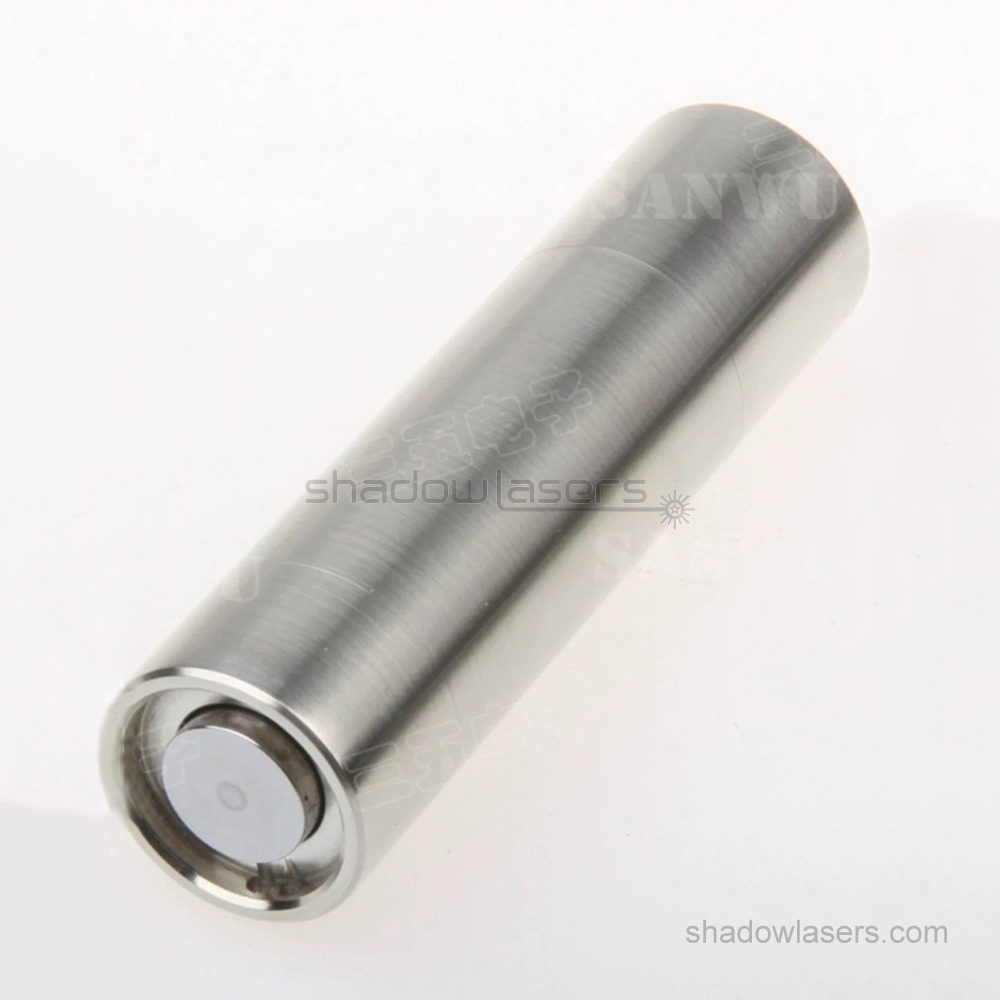

The Guardian is powered by one 18350 unprotected lithium battery. Insert the battery with the positive side going in first. Next, screw on the base cap and press the power button to operate the laser.
|
