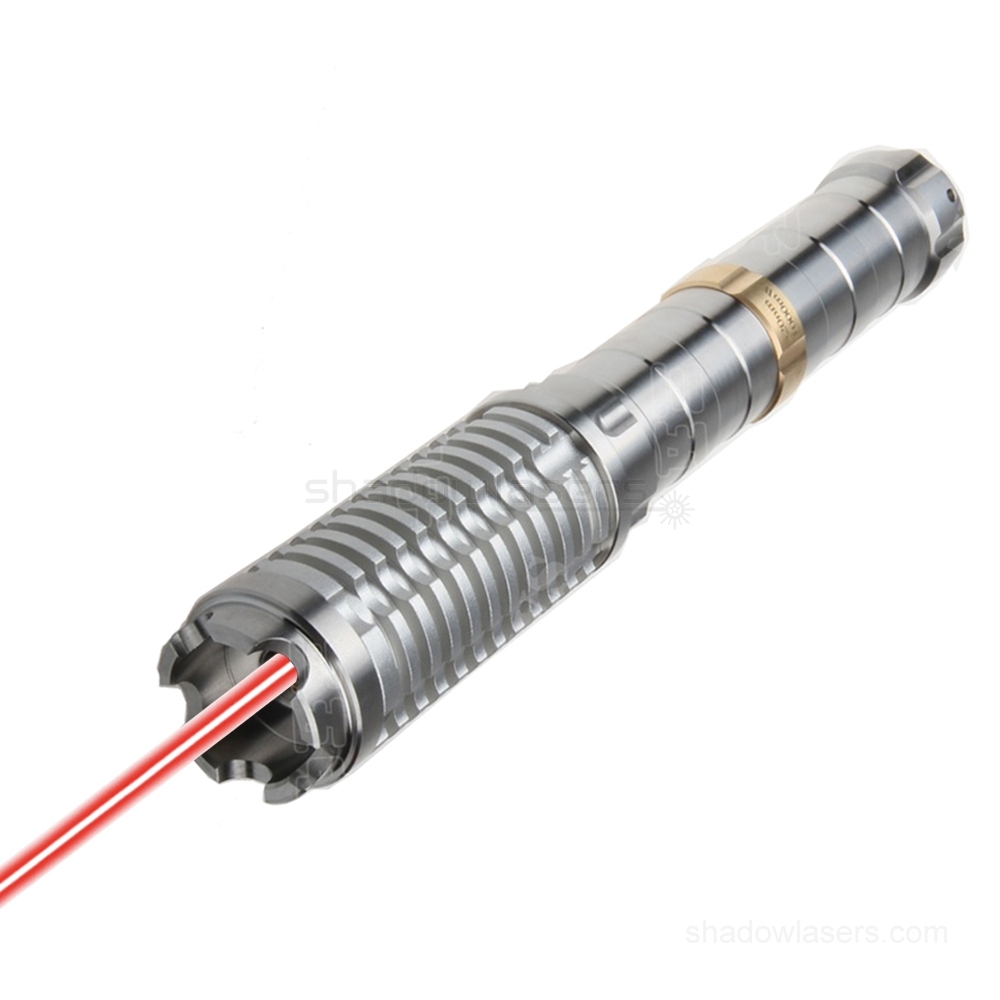

The World's Most Powerful Handheld Laser Pointer
- The Dragon slaying is designed to host the most powerful blue, green, red and purple laser diodes on the market.
Our Strongest Blue Burning Laser: 7.5 Watts at 445nm
Our Brightest Green Laser: 2 Watts at 525nm

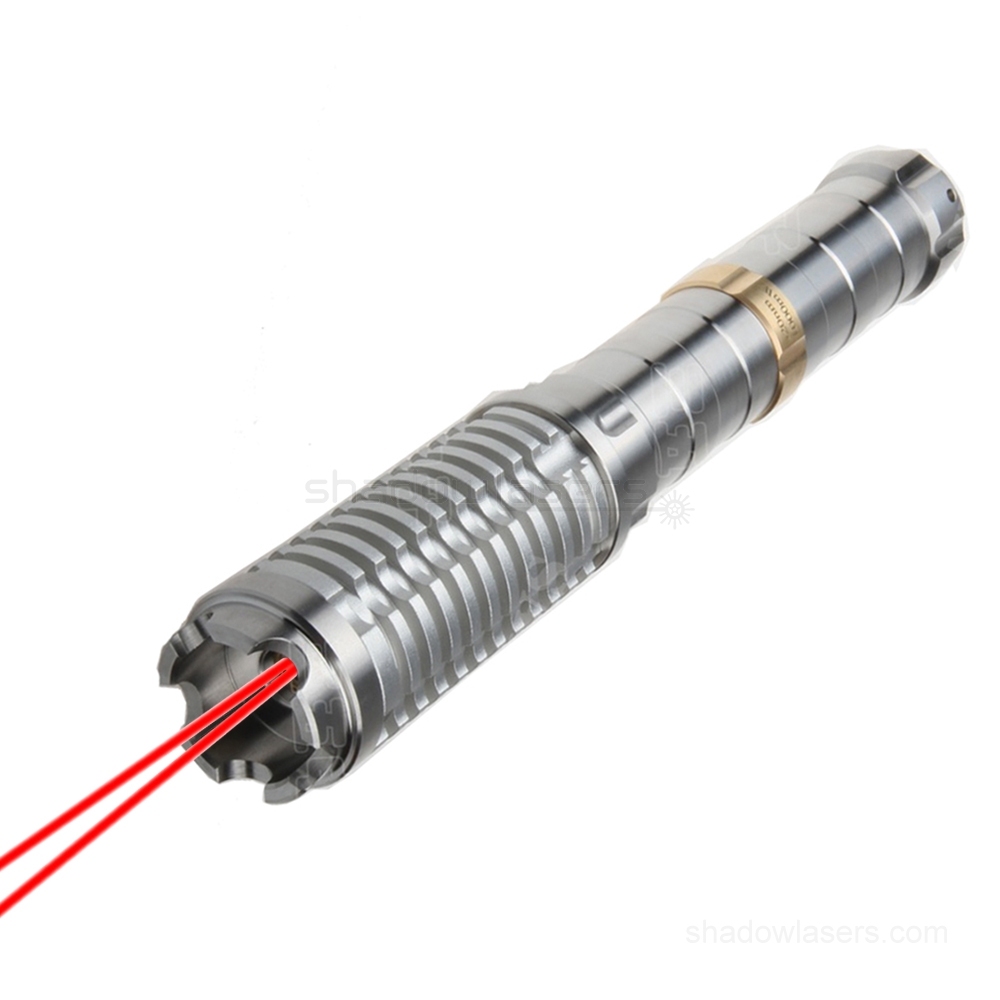

Our Strongest Red Dual Beam Laser: 2 Watts at 638nm
Our Strongest Burning Purple Laser: 1.5 Watts at 405nm
- Single-Operation Mode & Multi-Operation Mode
Single-operation mode lasers runs in full power mode only.
Multi-Operation mode lasers has five unique settings with an additional electronic safety lock function.
- The five unique operational modes cycle in the below order:
Low Power > Half Power > Strobe > Full Power > SOS
- How to Access the Multi-Operation Functions
Half-press the button once to enter the next operational mode.
|

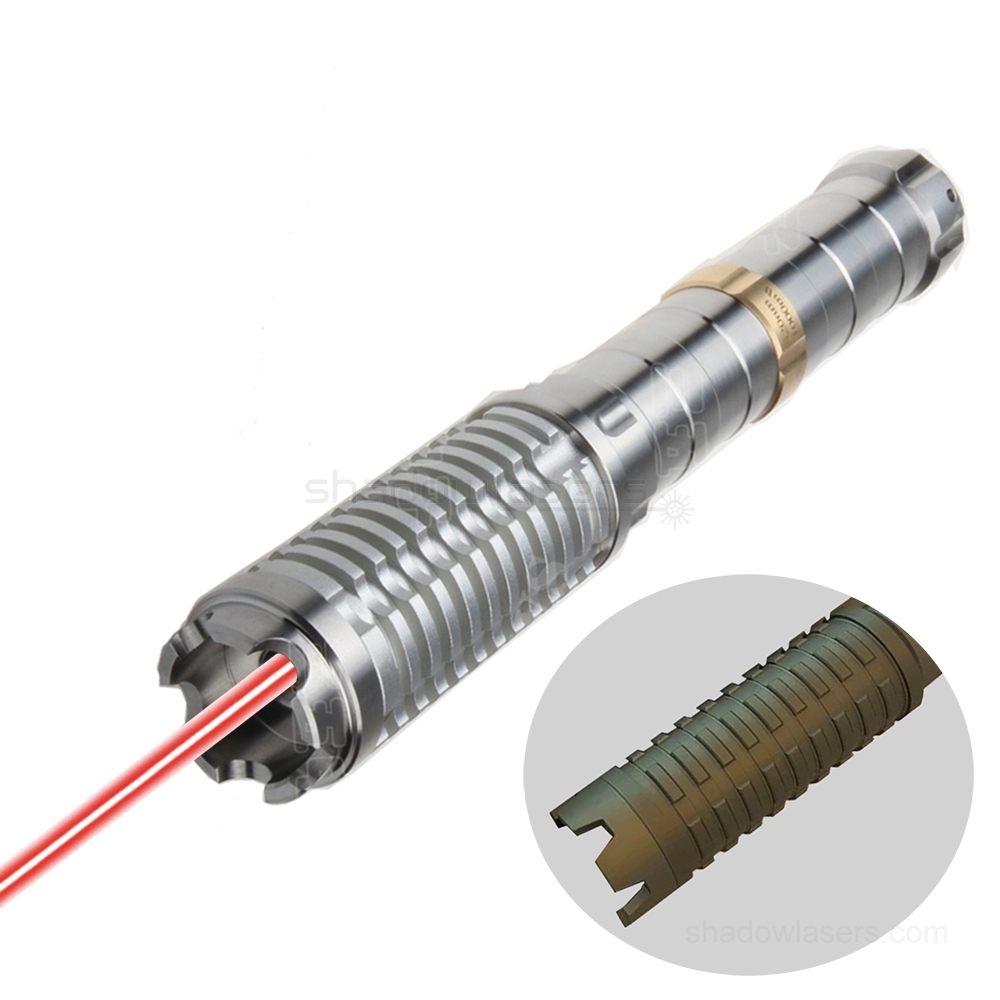

Dragon Slaying - Designed for Extreme Laser Power

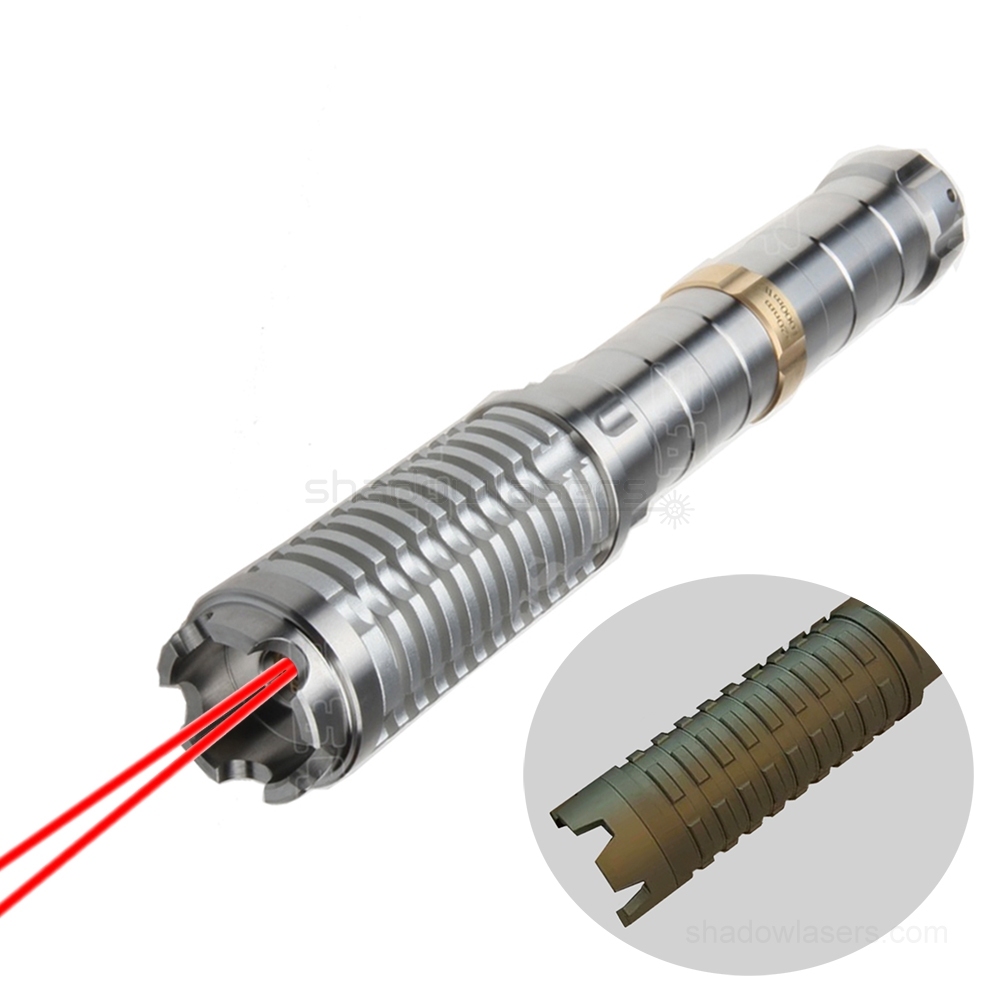

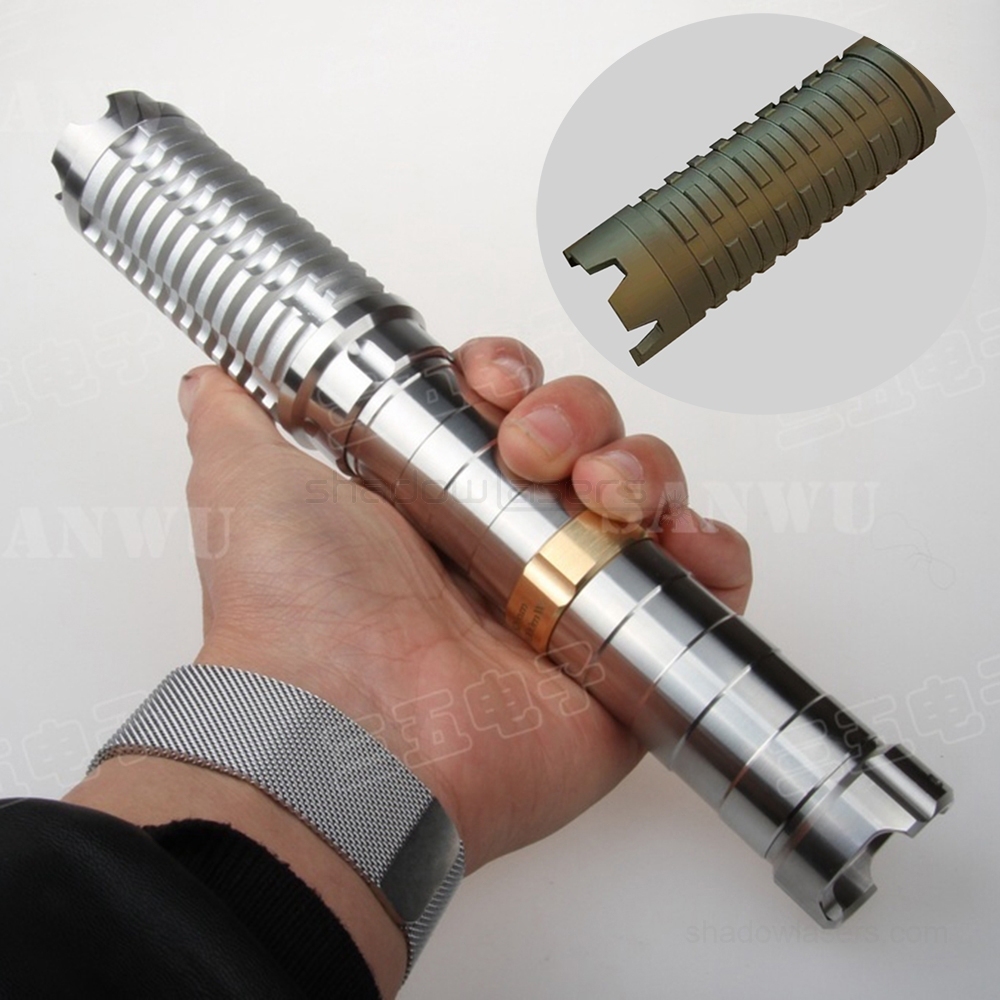

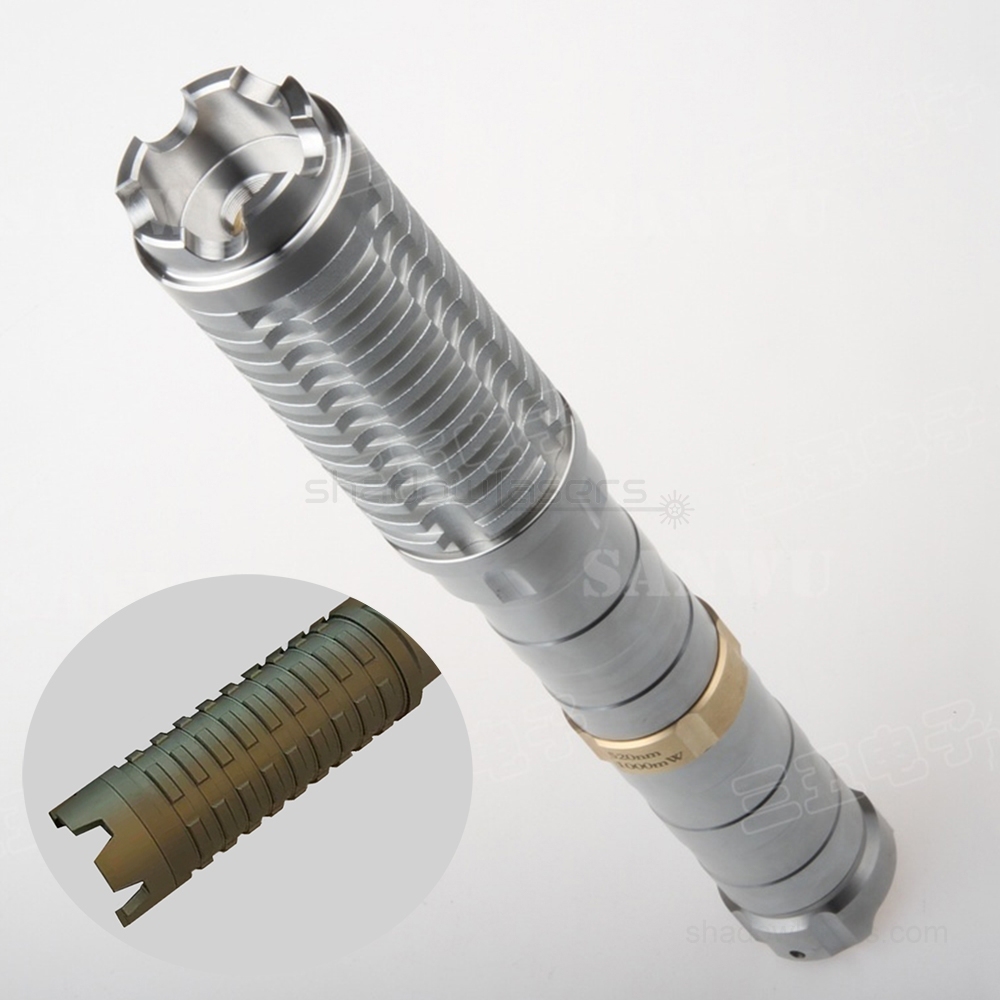

Starting with the worlds best aluminum heatsink, the dragon slaying has another substantial 40mm full copper heatsink built inside the housing! This design enables the dragon slaying to be the most rapid heat-dissipating handheld laser ever made; even while using the most powerful laser diodes.
- Stainless Steel Construction

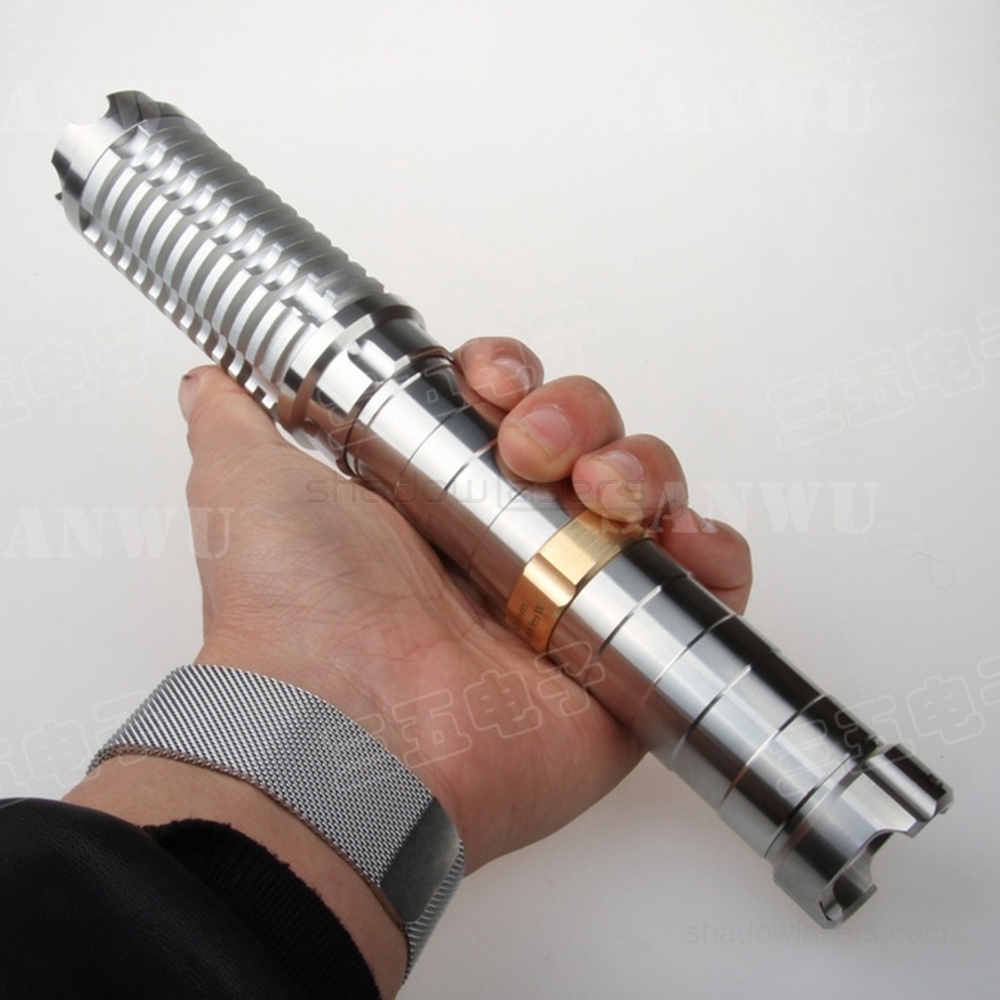

The rest of the laser body is constructed with military grade stainless-steel providing, high quality, long lasting, durability that you can trust. Enjoy peace of mind with accidental drops and scratches in most situations.
- Electronic Safety Lock(For multi mode only)
To prevent unauthorized use, half-press the button three times within the first three seconds immediately after the laser light is visible. The laser should switch to strobe mode before entering the safety lock(dim laser dot).
Power on the laser and wait one second. Next, half-press the button five times within three seconds and then wait another 2 seconds. The laser should now switch to strobe mode indicating that the laser is unlocked.
The laser powers on with the last operating mode that was in use for more than 3 seconds during the last use.

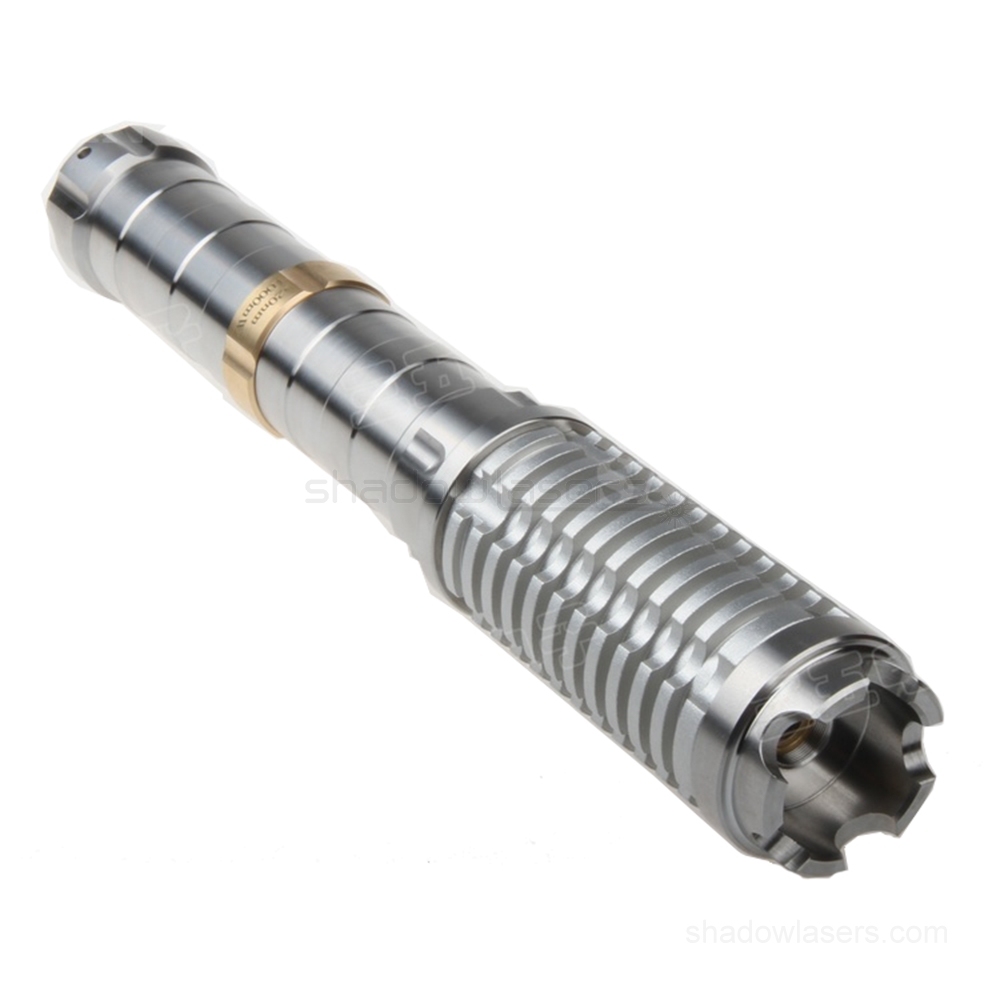

The dragon slaying has a fully adjustable focus. Just twist the attack head located at the top of the laser to adjust the beams focus.
Our lasers come with several battery protections to protect the laser and the battery: over-discharge protection, over-charge protection and reverse polarity protection.
- How to Power the Laser On
Two unprotected 26650 lithium-ion batteries power the dragon slaying. Insert the battery with the positive side going in first. Next, screw on the base cap and press the power button to operate the laser. |
| Model： |
Dragon Slaying: RW9 Red Laser Pointer |
| Brand： |
Sanwu Lasers |
| Wave Length： |
638nm |
| Dimension： |
Upper: φ38*90mm & Lower Body: φ30*150mm
|
| Max Output Power： |
1000MW(One laser diode)
1000MW * 2 Laser diodes = 2000MW |
| Laser Classification： |
Class IV |
| Focus Mode： |
Adjustable Focus |
| Switch： |
Push Button Constant On/Off
Electronic Safety Lock With Button Mode Switching
|
| Operation Mode： |
Single Mode or Multi Operation 5 Modes |
| Multi Operation 5 Modes： |
Low Power > Half Power > Strobe > Full Power > Emergency SOS |
| Beam Divergence: |
1.5mRad-4.8mRad |
| Required Eyewear O.D. |
3.0+ |
| Surface Treatment： |
Hard Anodizing Silver/Stonewashed Black |
| Body Material： |
304 Stainless Steel & AL |
| Laser Net Weight： |
640g |
| Expected Lifetime： |
> 8000 Hours |
| Usage Method： |
30 Seconds on & 60 Seconds off |
| Battery Type： |
Two 26650 Lithium-Ion Rechargeable Batteries
|
| Battery Direction： |
The Battery "+" Is Toward Inside of The Laser Pointer |
| Battery Lifetime： |
30~180 Minutes |
| Power Consumption： |
3.7V @ 1A-2.5A |
| Laser Range： |
2000-3000 Meters |
| Max Brightness： |
>1000Lm |
| Circuit Control： |
APC |
| Flare Forms： |
Plaque-Forming - Circle |
| Beam Style： |
Continuous Line |
| Spot Size： |
6 Meters Place < φ10mm |
| Preheat Time： |
< 3 Seconds |
| Warranty： |
1 Year Manufacturer's Warranty |
|
PACKING LIST
1 * Red Laser Pointer
5 * Metal Star Caps for Effects
2 * 26650 Rechargeable Li Batteries
1 * US Charger (Adapter To Fit Your Country)
1 * Green Safety Goggles

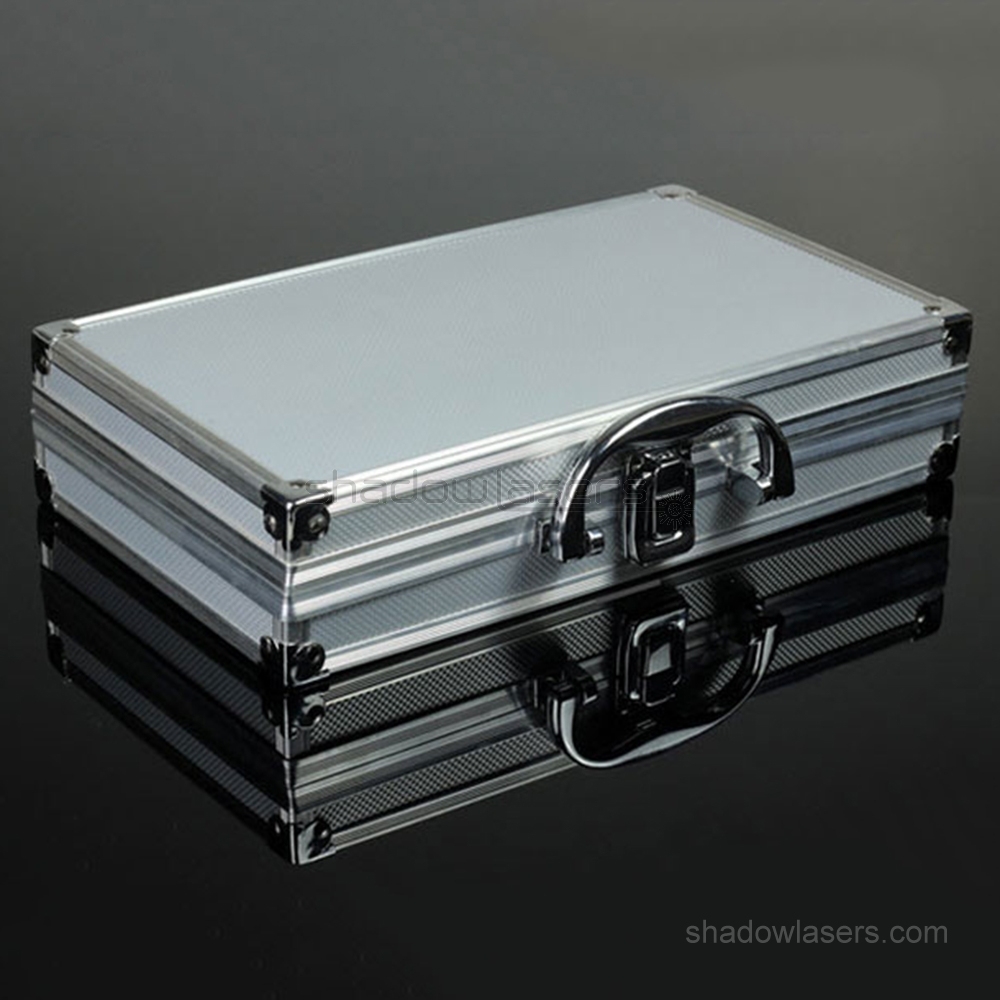

1 * Aluminum Carrying Case
|
|

|
