BM1 445nm Blue Laser Module Air-cooled TTL Modulation 1000MW-2000MW

$65.00

WARNING: Input voltage is 12V, Overpressure can cause instantaneous damage to the circuit and modules.
This type of product can be widely used in various stage laser lights, Industrial grade lasers with TTL modulation that can work continuously.
We can provide customers with optoelectronic solutions and design laser modules that meet their needs.

Received successfully

Coupon Code

Model：	BM1 Blue Laser Module
Brand：	Shadowlasers
Wave Length：	445nm
Host Dimension：	693030mm
Circuit Dimension：	47.531.516mm
Max Output Power：	1000MW/1500MW/2000MW
Laser Classification：	Class IV
Focus Mode：	Adjustable Focus
Refrigeration Method：	Aluminum Heat Dissipation

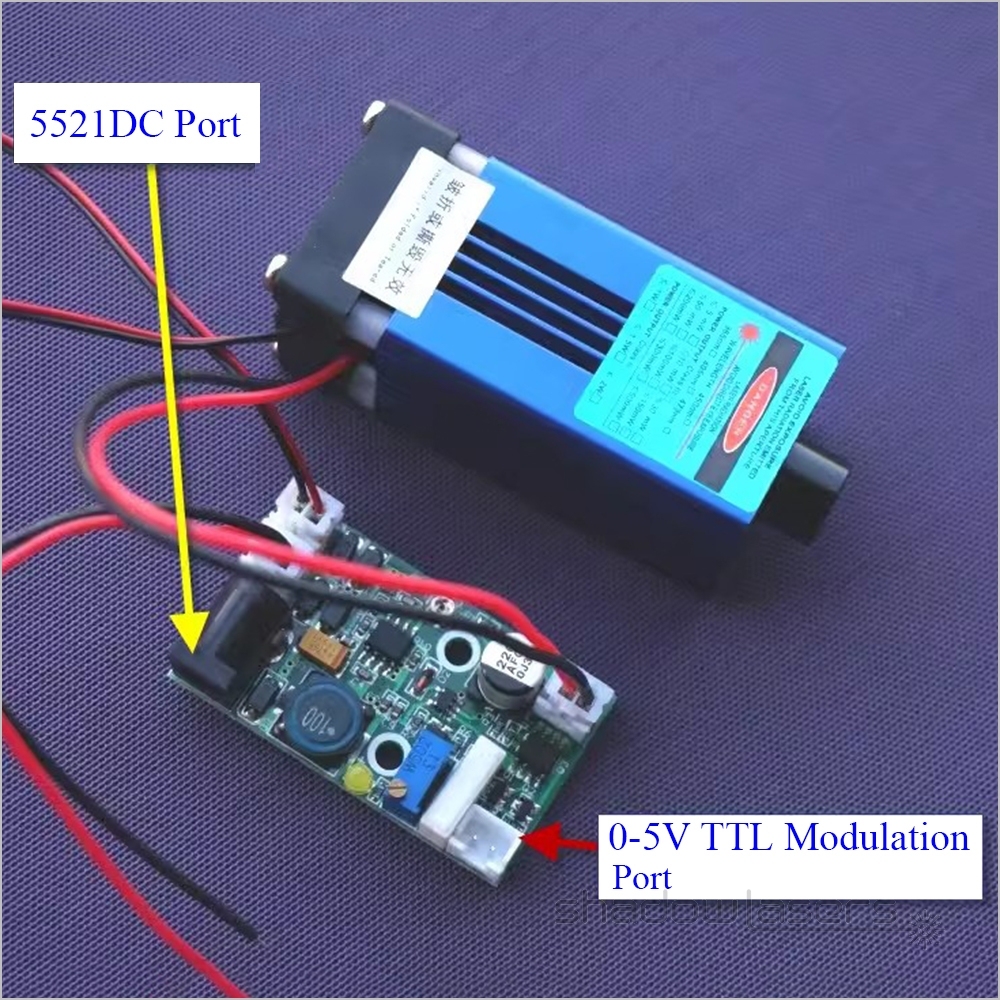

Modulation Frequency：	TTL Modulation
Job Characteristics：	Can Work Continuously
Surface Treatment：	Hard Anodizing Blue
Body Material：	Aviation Aluminum
Circuit Control：	Step-down Constant Current
Reverse Protection：	With Automatic Recognition of Positive and Negative Electrodes

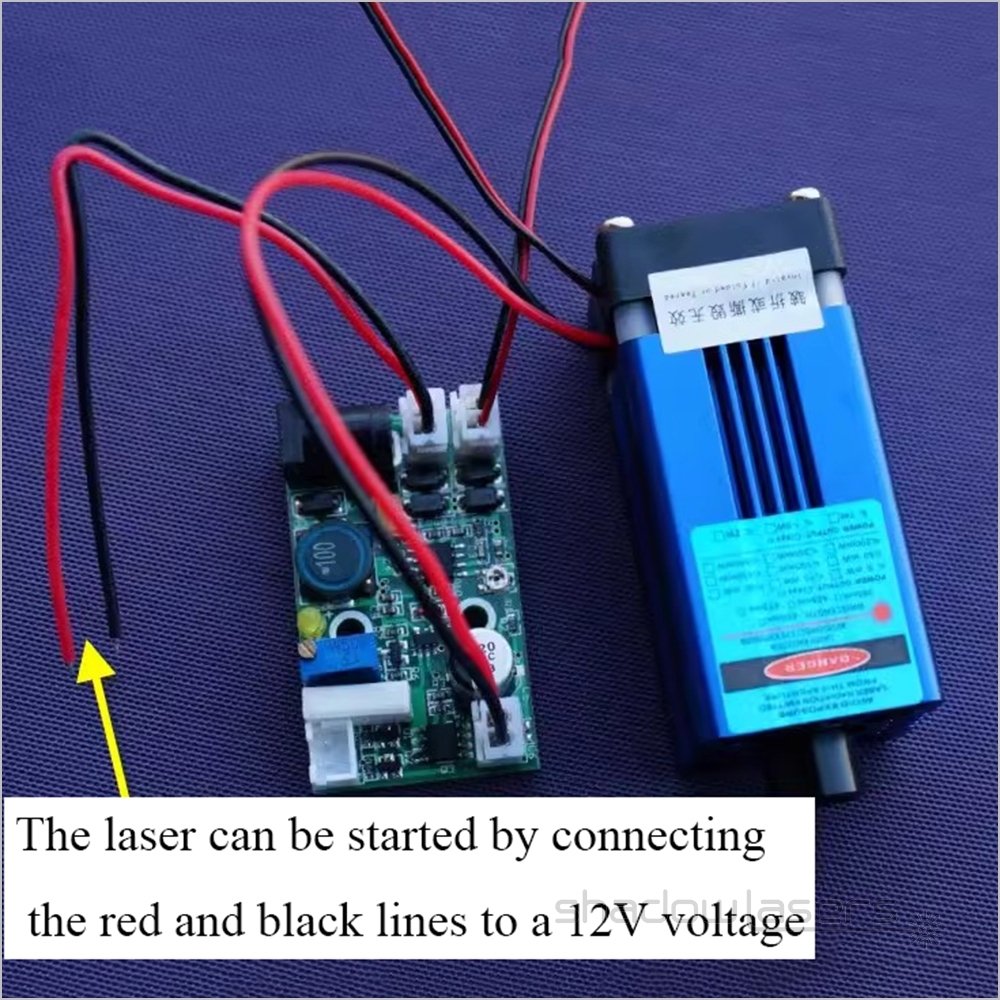

Working Voltage：	DC=12V(10-14V)
Working Current：	I <1.7A
Preheating Time：	None
Working Temperature：	-10 ℃ ~ +40 ℃
Storage Temperature：	-10 ℃ ~ +40 ℃
Structural Features：	Laser Tube+Lens+Heat Dissipation Shell
Power Supply：	External
Net Weight：	350g

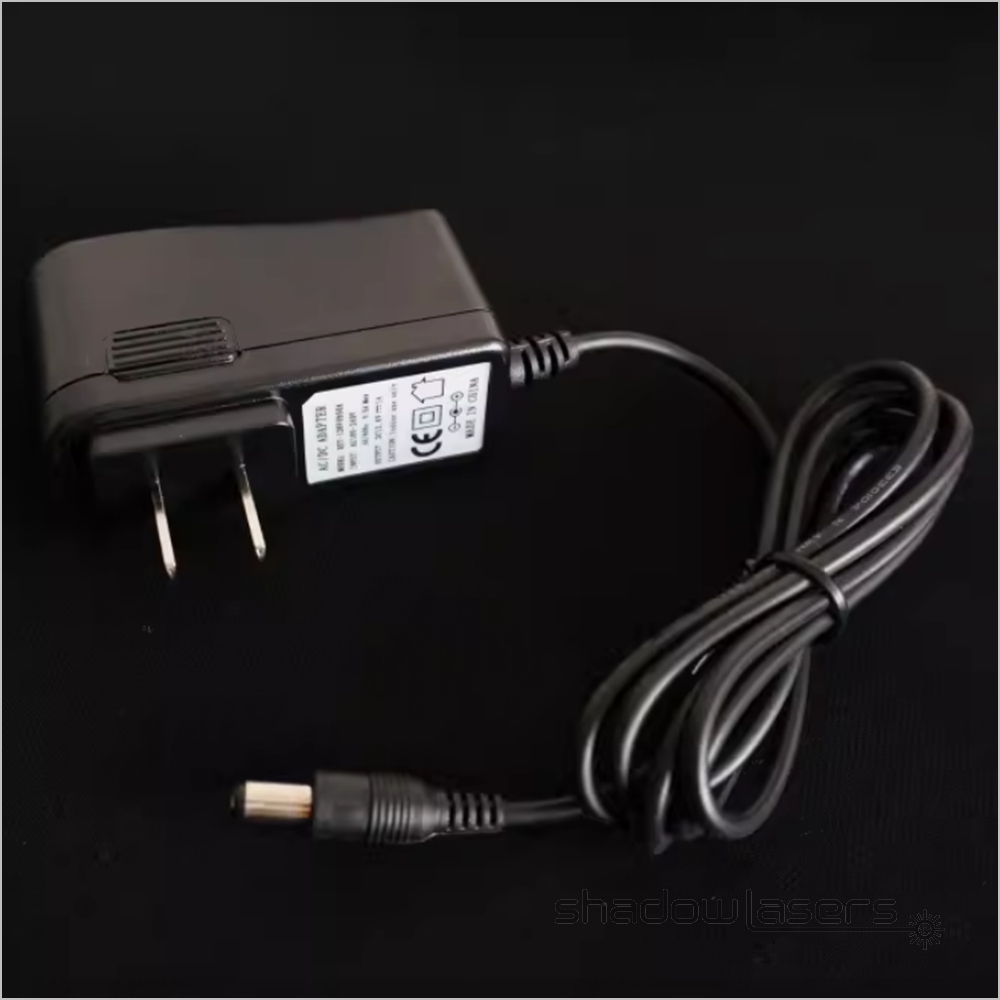

5V Power Adapter (78g)：	Input: 100-240V 50/60Hz 300mA
	Output: 12V-1A
	Port size: 5521DC (5.5 * 2.1mm) Male Terminal
Warranty：	1 Year Manufacturer's Warranty
PACKING LIST 1 * Blue Laser Module 1 * 5V Power Adapter (Adapter To Fit Your Country)
